Product Details:
|
Application: | Prefab Steel Structure Workshop With Office | Shot Blasting Level: | Metal Workshop With Office Buildings, Epoxy Coating Floor |
---|---|---|---|
Type: | Prefab Steel Structure Buildings | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
Service Life: | 50 Years | Wall And Roof: | Rock Wool |
Surface Treatment: | Painting | Working Scope: | Design,Fabrication, Installation |
Columns & Beams: | H-section Steel | Standard: | AISC, ASTM, BS, DIN, GB, JIS |
Highlight: | steel structure factory building,metal workshop building |
Attribute | Value |
---|---|
Application | Prefab Steel Structure Workshop With Office |
Shot blasting level | Metal Workshop With Office Buildings, Epoxy Coating Floor |
Type | Prefab Steel Structure Buildings |
Raw steel material | Q235B, Q355B, ASTM A36 |
Service life | 50 Years |
Wall and Roof | Rock wool |
Surface treatment | Painting |
Working scope | Design, Fabrication, Installation |
Columns & Beams | H-section steel |
Standard | AISC, ASTM, BS, DIN, GB, JIS |

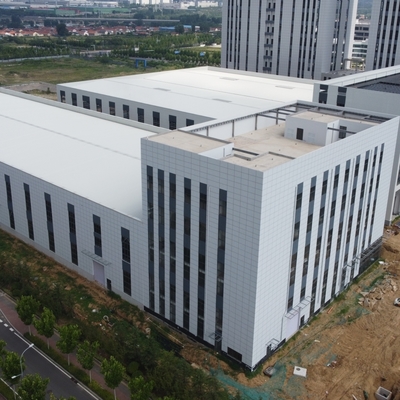

Epoxy Coating Floor Prefab Steel Structure Workshop With Inside Office Buildings is designed for textile factories with integrated two-floor office space. These prefabricated steel frame structures offer excellent rigidity, seismic performance, fast construction, lightweight design, and high load-bearing capacity.

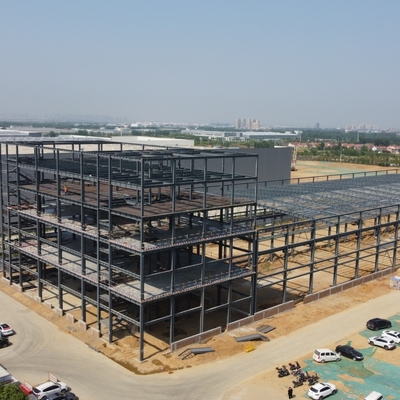

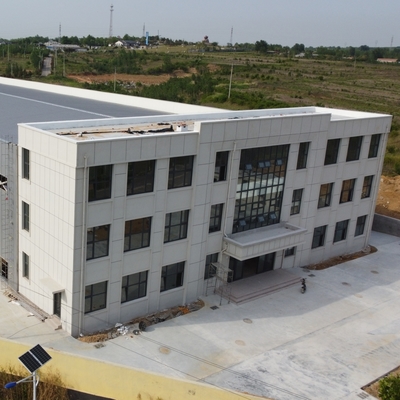

This steel frame structure workshop is built as a home textiles factory with integrated two-floor office buildings. Prefab steel frame structures are widely used for factories, warehouses, workshops, sheds, garages, hangars, office buildings, and stadiums due to their excellent performance characteristics.
Component | Specification |
---|---|
Steel Frame | H section steel | Q235/Q345 steel plate thickness: 8-30mm |
Welding | Automatic submerged arc welding |
Rust removal | Sand blasting |
Surface finish | Alkyd paint or galvanized |
Intensive bolt | M20, Grade 10.9 |
Supporting System |
Angle brace: L50x4, Steel Q235, processed and painted Horizontal brace: Φ20, Steel Q235, processed and painted Column brace: Φ20, Steel Q235, processed and painted Tie rod: Φ89*3, Steel Q235, processed and painted |
Ordinary bolt | M12 Galvanized bolt |
Roof |
Purlin: C160*60*2.5, Steel Q235, galvanized and painted Roof panel: Sandwich panel or corrugated steel sheet Sky light: 6mm thick PVC Accessories: Glass cement, self-tapping screws, etc. Edge cover: 0.4mm steel sheet profile trimming Gutter: 0.4mm thick sheet steel profile or galvanized sheet Down pie: Φ110PVC |
Walls |
Purlin: C160*60*2.5, Steel Q235, painted Wall: Sandwich panel or corrugated steel plate Accessories: Glass cement, self-tapping screws, etc. Edge cover: 0.4mm steel sheet profile trimming Ventilation: Ventilation ball Doors & windows: Rolling door/sliding door PVC/alu/steel/window |
Our fabrication facility covers 35,000㎡ with 20,000㎡ of workshop space. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and various profiling steel sheet machines with advanced equipment including plasma cutting machines.
We provide comprehensive design and fabrication services for customized steel structure components, specializing in both light and heavy steel structures including portal frame and dome frame buildings. Our expertise covers warehouses, workshops, storage facilities, hangars, agricultural buildings, commercial structures, and industrial complexes.
All structural components, panels, bolts, and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to ensure damage-free loading.
