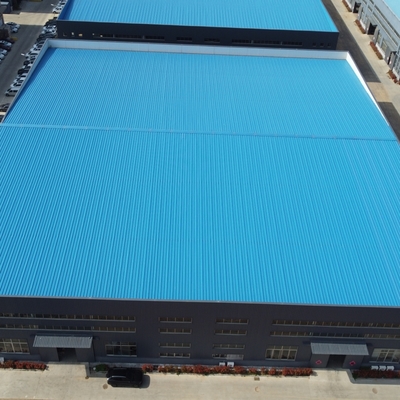

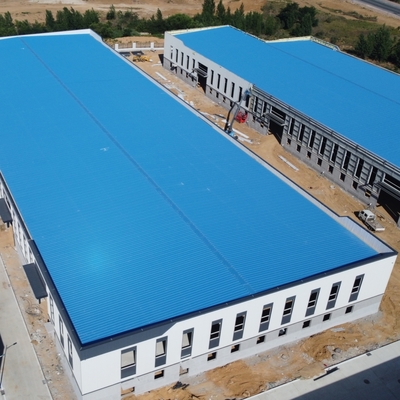

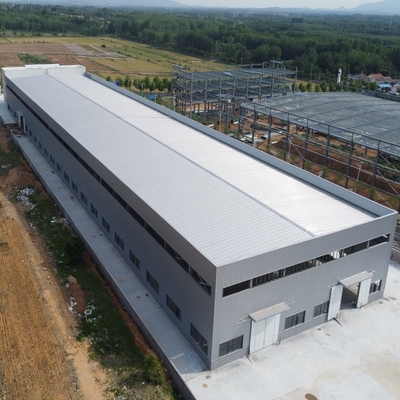

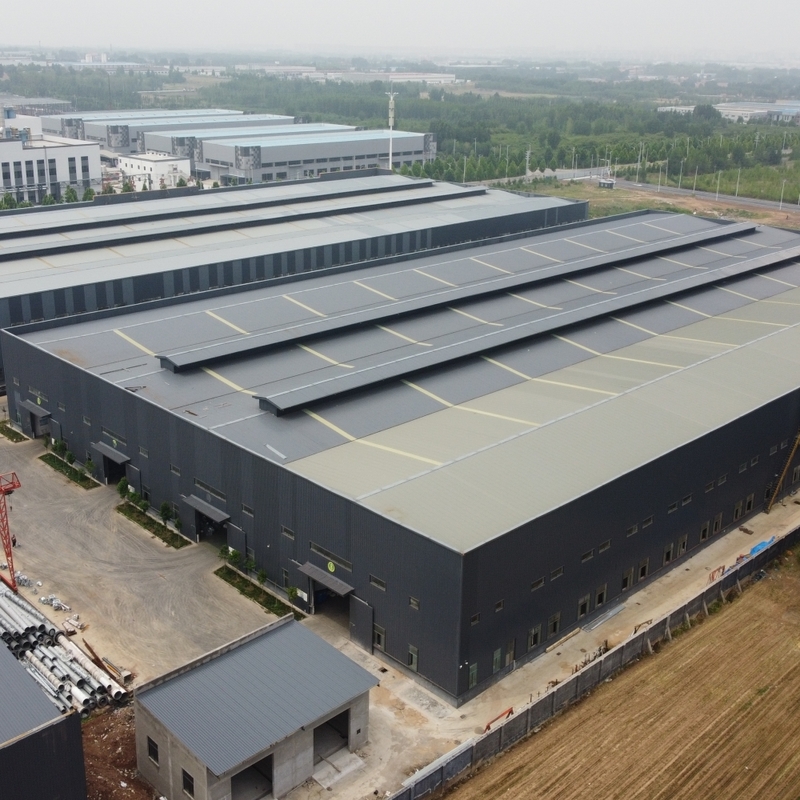

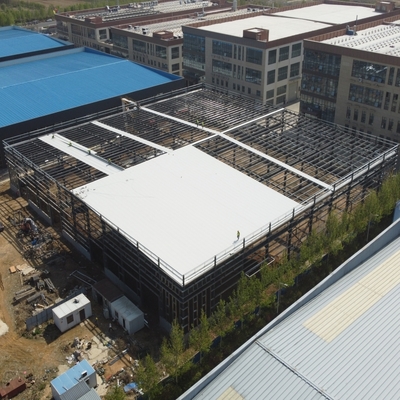

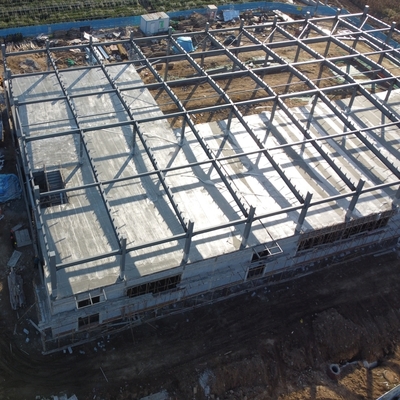

Heavy Duty Steel Structure Workshop with Overhead Crane

Heavy Duty Steel Structure Workshop with Overhead Crane
Heavy Duty Steel Structure Workshop with Overhead Crane
Heavy Duty Steel Structure Workshop with Overhead Crane Heavy Duty Steel Structure Workshop with Overhead Crane Heavy Duty Steel Structure Workshop with Overhead Crane Heavy Duty Steel Structure Workshop with Overhead Crane Heavy Duty Steel Structure Workshop with Overhead Crane Heavy Duty Steel Structure Workshop with Overhead Crane Heavy Duty Steel Structure Workshop with Overhead Crane

Large Image :  Heavy Duty Steel Structure Workshop with Overhead Crane

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0198
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Heavy Duty Steel Structure Workshop with Overhead Crane

Description
Application: Heavy Duty Prefabricated Workshop With Overhead Crane Type: Steel Structure Workshop With Overhead Crane
Raw Steel Material: Q235B, Q355B, ASTM A36 Shot Blasting Level: Sa 2.5
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Columns & Beams: H-section Steel Standard: AISC, ASTM, BS, DIN, GB, JIS
Highlight:

prefab steel buildings

,

metal workshop building

Heavy Duty Prefabricated Steel Structure Workshop With Overhead Crane
Product Specifications
Attribute Value
Application Heavy Duty Prefabricated Workshop With Overhead Crane
Type Steel Structure Workshop With Overhead Crane
Raw steel material Q235B, Q355B, ASTM A36
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Project Overview

This heavy-duty prefabricated steel frame workshop is designed for heavy engineering machinery factories. The structure features frame construction with one or more heavy-duty cranes and typically includes multiple steel structure platforms. The primary material is wide-flange H-beams with high-strength bolted joints, making welded H-beam component manufacturing and bolt installation quality control critical to structural integrity.

Project Specifications: Total steel structure quantity approximately 700 tons with 6 sets of 20-ton bridge cranes (12m lifting height).

Material Specifications
Component Specification
Main Steel Frame (Column) Q235, Q345 Welded H Section Steel
Main Steel Frame (Beam) Q235, Q345 Welded H Section Steel
Secondary Frame (Purlin) Q235 C and Z purlin
Knee brace Q235 Angle Steel
Tie Rod Q235 Circular Steel Pipe
Brace Q235 Round Bar
Vertical and Horizontal Support Q235 Angle Steel, Round Bar or Steel Pipe
Roof Panel EPS Sandwich Panel / Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / Pu Sandwich Panel / Steel Sheet
Wall Panel Sandwich Panel / Corrugated Steel Sheet
Live load on Roof 120kg/Sqm (Color steel panel surrounded)
Wind Resistance Grade 12 Grades
Earthquake-resistance 8 Grades
Structure Usage Up to 50 years
Temperature Range -50°C to +50°C
Our Manufacturing Capabilities

Our 35,000㎡ fabrication facility includes 20,000㎡ of workshop space equipped with:

  • Three light/heavy H steel production lines
  • BOX production lines
  • C/Z purlin production lines
  • Advanced profiling steel sheet machines
  • Plasma cutting equipment
Heavy Duty Steel Structure Workshop with Overhead Crane 0
Service Scope
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Design, fabrication and installation of prefabricated steel structures
  • Fabrication drawing development based on architectural plans
  • Engineering consulting services
Heavy Duty Steel Structure Workshop with Overhead Crane 1
Quotation Requirements

Please provide the following information for an accurate quote:

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels; if not, metal steel sheets
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
