Product Details:
|
Features: | Prefabricated Building Material Steel | Application: | Prefabricated Building Material Steel Structure Frame, Prefab Steel Structure |
---|---|---|---|
Type: | Prefab Steel Structure Workshop | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
Service Life: | 50 Years | Wall And Roof: | Rock Wool |
Surface Treatment: | Painting | Working Scope: | Design,Fabrication, Installation |
High Light: | steel structure factory building,metal workshop building |

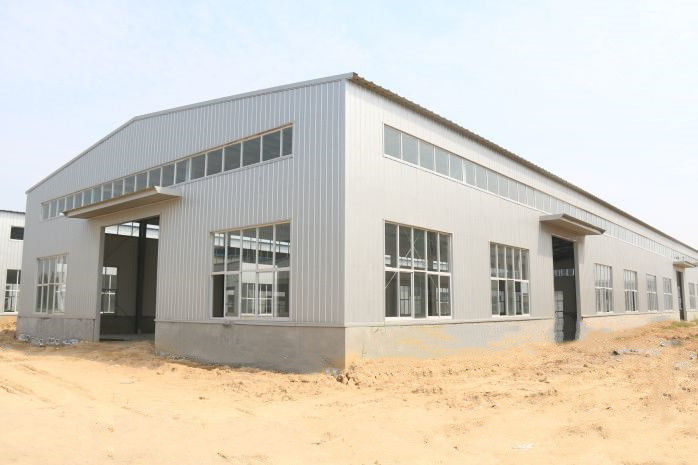

Prefabricated Building Material Steel Structure Frame For Workshop Buildings
Prefabricated Building Material Steel Structure Frame For Workshop Buildings. All the steel structure are fabricated in our factory. Welded steel structure has good rigidity and light weight, which provides favorable conditions for production, transportation and installation. Prefab steel structure buildings are custom made to suit a wide range of application in different industry sectors. It largely depends upon the requirement of the customers. These metal buildings are different from conventional buildings in ways like speed in delivery and erection, flexibility in expansion and withstand severe weather conditions. We are a one stop solution provider for all your structural needs and have products ranging from steel structure workshop, warehouse, factory buildings, sheds, hangar, industrial buildings, infrastructure buildings, etc. We truly comply with the specifications while designing and manufacturing all our steel structures which ensure all-out safety and are quite economical as well, as our raw steel material suppliers are also qualified after our selection.
Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
Welding | Automatic submerged arc welding | |
Rust removal | Sand blasting | |
Surface finish | Alkyd paint or galvanized | |
Intensive bolt | M20,Grade 10.9 | |
Supporting System | Angle brace | L50x4,Steel Q235, processed and painted |
Horizontal brace | Φ20, Steel Q235, processed and painted | |
Column brance | Φ20, Steel Q235, processed and painted | |
Tie rod | Φ89*3, Steel Q235, processed and painted | |
Ordinary bolt | M12 Galvanized bolt | |
Roof | Purlin | C160*60*2.5,Steel Q235, galvanized and painted |
Roof panel | Sandwich panel or corrugated steel sheet | |
Sky light | 6mm thick PVC | |
Accessories | Glass cement, self-tapping screws, etc. | |
Edge cover | 0.4mm steel sheet profile trimming | |
Gutter | 0.4mm thick sheet steel profile or galvanized sheet | |
Down pie | Φ110PVC | |
Walls | Purlin | C160*60*2.5,Steel Q235, painted |
Wall | Sandwich panel or corrugated steel plate | |
Accessories | Glass cement, self-tapping screws, etc. | |
Edge cover | 0.4mm steel sheet profile trimming | |
Ventilation | Ventilation ball | |
Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site. We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
