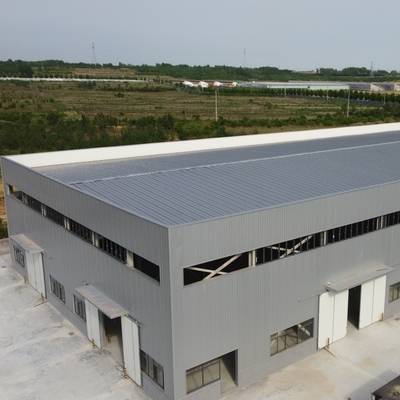

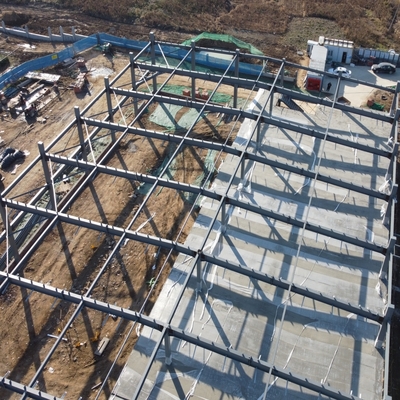

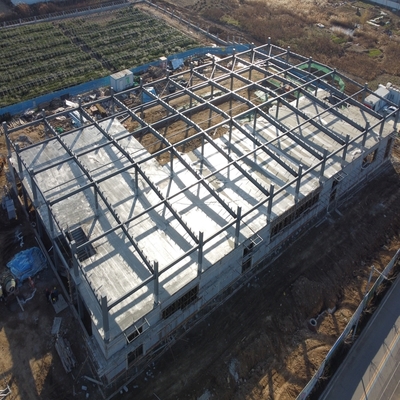

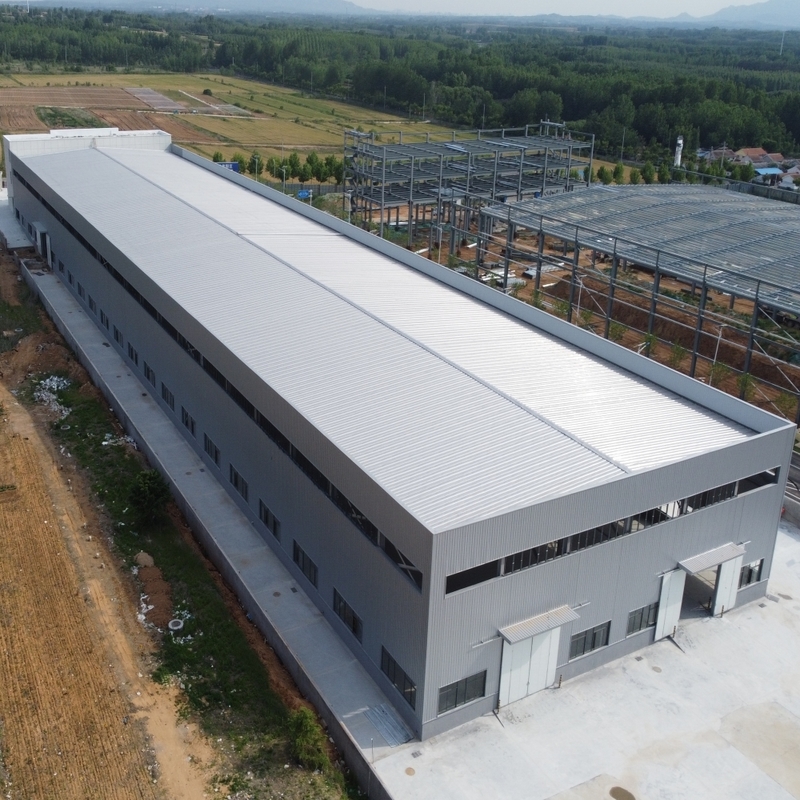

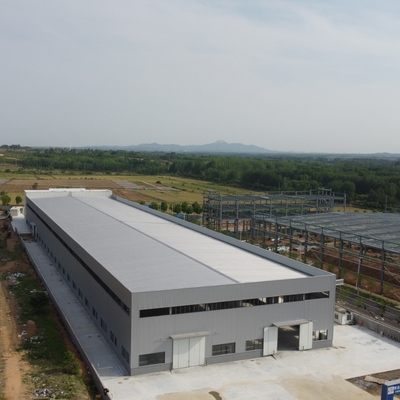

Prefabricated Building Material Steel Structure Frame For Workshop Buildings
Product Attributes
| Attribute |
Value |
| Application |
Prefabricated Building Material Steel Structure Frame, Prefab Steel Structure |
| Type |
Prefab Steel Structure Workshop |
| Features |
Prefabricated Building Material Steel |
| Raw steel material |
Q235B, Q355B, ASTM A36 |
| Service life |
50 Years |
| Wall and Roof |
Rock wool |
| Surface treatment |
Painting |
| Working scope |
Design, Fabrication, Installation |
Product Description
Prefabricated Building Material Steel Structure Frame For Workshop Buildings provides a durable, flexible solution for industrial construction needs. All steel structures are fabricated in our factory with welded construction that offers excellent rigidity while remaining lightweight for easier production, transportation and installation.
Project Information
Our prefab steel structure buildings are custom-made to suit a wide range of industrial applications across different sectors. These metal buildings offer significant advantages over conventional construction, including faster delivery and erection times, expansion flexibility, and superior resistance to severe weather conditions.
We serve as a comprehensive solution provider for structural needs, offering products including steel structure workshops, warehouses, factory buildings, sheds, hangars, and various industrial and infrastructure buildings. Our strict compliance with specifications during design and manufacturing ensures safety and cost-effectiveness, supported by our qualified raw material suppliers.
Specification of Steel Structure Material
| Component |
Specification |
| Steel Frame |
H section steel | Q235/Q345 steel 8mm/10mm |
| Welding |
Automatic submerged arc welding |
| Rust removal |
Sand blasting |
| Surface finish |
Alkyd paint or galvanized |
| Intensive bolt |
M20, Grade 10.9 |
| Supporting System |
Angle brace: L50x4, Steel Q235, processed and painted
Horizontal brace: Φ20, Steel Q235, processed and painted
Column brace: Φ20, Steel Q235, processed and painted
Tie rod: Φ89*3, Steel Q235, processed and painted |
| Ordinary bolt |
M12 Galvanized bolt |
| Roof |
Purlin: C160*60*2.5, Steel Q235, galvanized and painted
Roof panel: Sandwich panel or corrugated steel sheet
Sky light: 6mm thick PVC
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Gutter: 0.4mm thick sheet steel profile or galvanized sheet
Down pie: Φ110PVC |
| Walls |
Purlin: C160*60*2.5, Steel Q235, painted
Wall: Sandwich panel or corrugated steel plate
Accessories: Glass cement, self-tapping screws, etc.
Edge cover: 0.4mm steel sheet profile trimming
Ventilation: Ventilation ball
Doors & windows: Rolling door/sliding door PVC/alu/steel/window |
Our Steel Structure Fabrication Factory
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and construction company specializing in light and heavy steel structure projects. Our comprehensive services include design, fabrication of all steel structure components and insulation panels, and on-site installation.
We operate three production lines for steel structure fabrication and have invested in advanced machinery, including plasma cutting machines, to better serve international projects.
Packing and Transport
All structural components, panels, bolts, and accessories are packed according to standard ocean transportation requirements and loaded into 40'HQ containers.
Our skilled workers use cranes and forklifts at our factory loading site to ensure safe handling and prevent damage to goods during loading.
