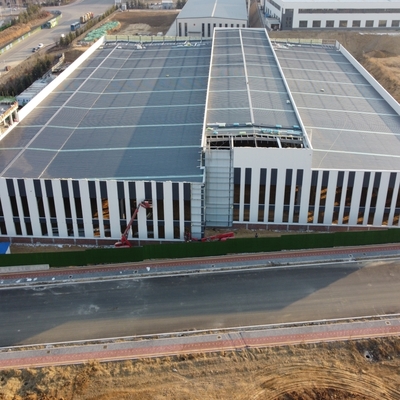

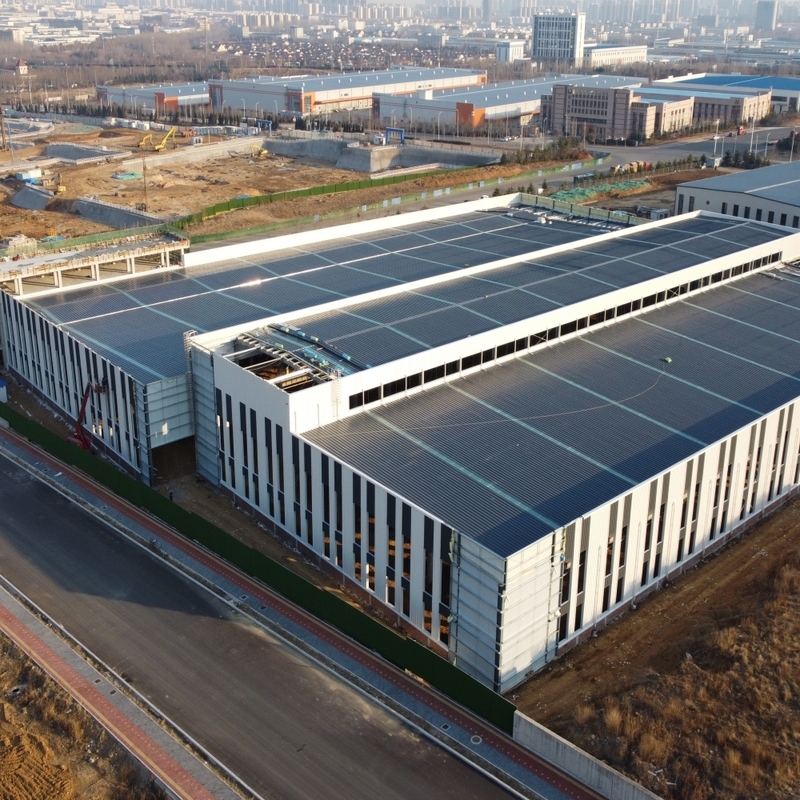

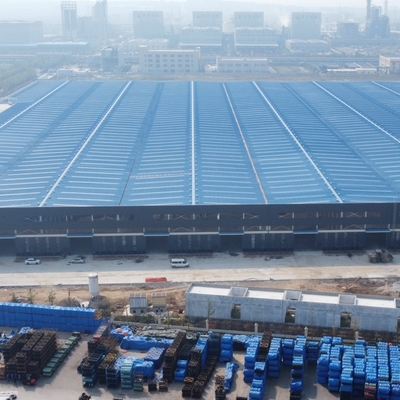

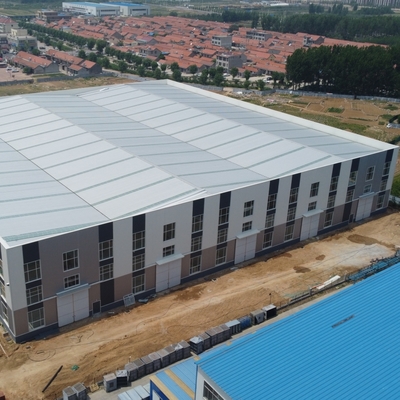

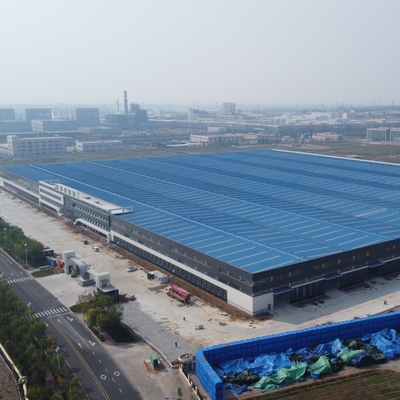

Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B

Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B
Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B
Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B

Large Image :  Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0188
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B

Description
Application: Multi Spans Steel Structure Workshop Shot Blasting Level: Metal Workshop Buildings With Crane
Type: Steel Structure Workshop Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Highlight:

prefab steel buildings

,

metal workshop building

Multi Spans Steel Structure Workshop Buildings High Strength With Overhead Crane
Product Specifications
Attribute Value
Application Multi Spans Steel Structure Workshop
Shot blasting level Metal Workshop Buildings With Crane
Type Steel Structure Workshop
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Project Overview
This multi-span steel frame structure workshop with overhead crane is designed for industrial applications such as gasoline generator factories. Each span is equipped with two 10T overhead cranes. The main structure features welded H-section steel columns and beams connected by high-strength bolts, all fabricated in our factory for optimal quality control.
Steel buildings offer significant advantages including durability, cost-effectiveness compared to conventional construction, and faster build times than concrete structures.
Material Specifications
Component Specification
Steel Frame H section steel | Q235/Q345 steel 8mm/10mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20, Grade 10.9
Supporting System Angle brace: L50x4, Steel Q235, processed and painted
Horizontal brace Φ20, Steel Q235, processed and painted
Column brace Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5, Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Our Manufacturing Capabilities
Our facility features three dedicated production lines for steel structure fabrication, equipped with advanced machinery including plasma cutting machines for precision work.
  • Structural steel fabrication, painting, galvanizing, and pre-assembly
  • Complete design, fabrication and installation services for prefabricated steel structures
  • Detailed fabrication drawings based on your architectural plans
  • Professional engineering consulting services
Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B 0
Installation Process
We provide comprehensive construction drawings for each project and offer installation training at our factory. For international projects, we can dispatch our engineers to guide on-site installation or provide complete turnkey installation services.
Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B 1
Packaging & Shipping
All structural components, panels, bolts and accessories are packed to withstand ocean transportation in standard 40'HQ containers. Our skilled loading team uses cranes and forklifts to ensure safe loading and prevent damage during transit.
Multi Span Steel Structure Workshop with Overhead Crane Q235B Q355B 2
