Product Details:
|
Application: | Steel Workshop Buildings With Mezzanine | Type: | Prefab Steel Structure Workshop |
---|---|---|---|
Working Scope: | Design,Steel Structure Fabrication, Installation | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
Shot Blasting Level: | Sa 2.5 | Service Life: | 50 Years |
Wall And Roof: | Rock Wool | Surface Treatment: | Painting |
Highlight: | steel structure factory building,metal workshop building |
Application | Steel Workshop Buildings With Mezzanine |
Type | Prefab Steel Structure Workshop |
Working scope | Design, Steel Structure Fabrication, Installation |
Raw steel material | Q235B, Q355B, ASTM A36 |
Shot blasting level | Sa 2.5 |
Service life | 50 Years |
Wall and Roof | Rock wool |
Surface treatment | Painting |

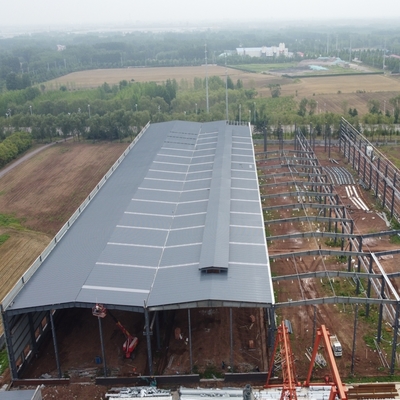

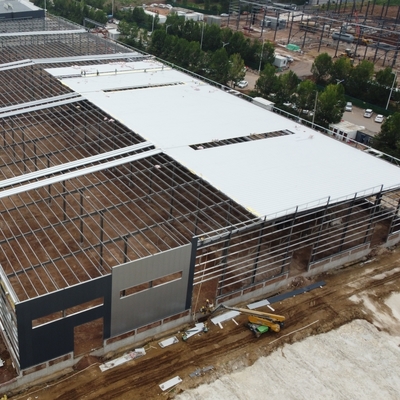

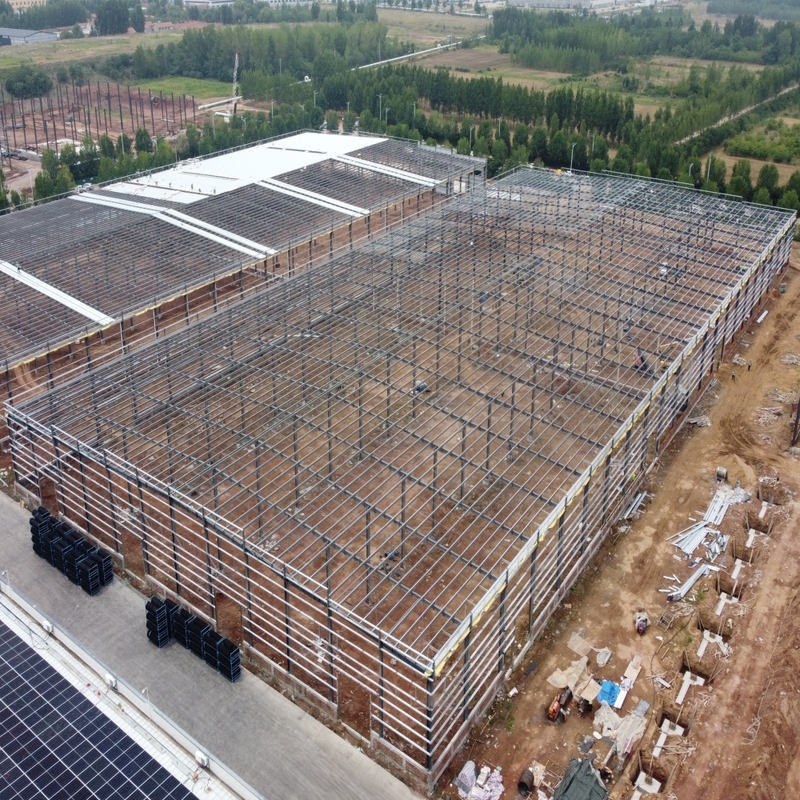

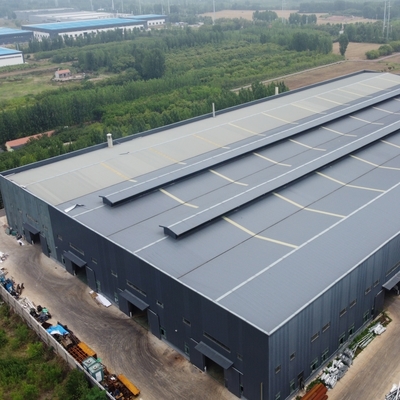

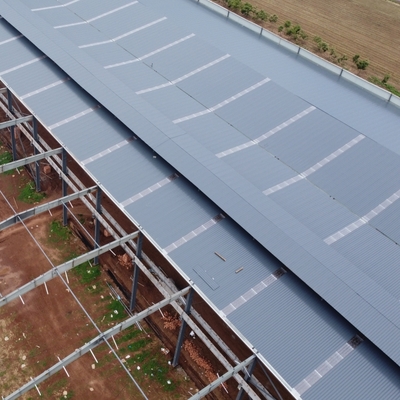

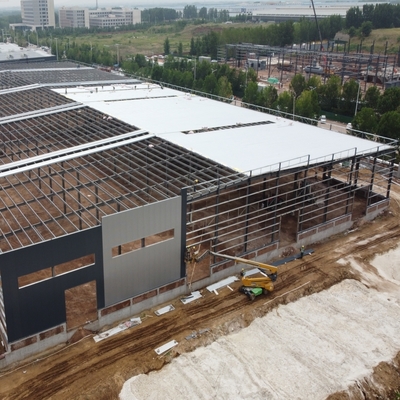

This prefabricated metal workshop building features a mezzanine level for storage and office space. The main frame structure consists of welded H-section steel beams and columns connected by high-strength bolts. The mezzanine floor utilizes galvanized steel decking. All steel components are factory-fabricated for optimal quality control.
Component | Specification | Material | Treatment |
---|---|---|---|
Column | H shaped steel | Q235B, Q345B | Paint or Hot dip galvanized |
Beam | H shaped steel | Q235B, Q345B | Paint or Hot dip galvanized |
Bracing | Steel rod, Steel pipe, Angle steel | Q235B, Q345B | - |
Purlin | C or Z shape, Thickness: 1.8mm~3.0mm | Q235B, Q346B | Hot dip galvanized |
Wall/Roof Panel | EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet | Steel T=0.426~0.8mm, insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
Door | Sliding or rolling door | Steel or Aluminum sheet, T=1.0~1.5mm | Paint or Hot dip galvanized |
Window | Alloy-Glass, Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
We provide detailed construction drawings for each project and offer comprehensive installation support. Options include:
All structural components, panels, fasteners, and accessories are packaged to international shipping standards in 40' HQ containers. Our skilled loading team uses cranes and forklifts to ensure damage-free transportation.
