Prefab Steel Structure Workshop with Glass Wool Insulation

Prefab Steel Structure Workshop with Glass Wool Insulation
Prefab Steel Structure Workshop with Glass Wool Insulation
Prefab Steel Structure Workshop with Glass Wool Insulation Prefab Steel Structure Workshop with Glass Wool Insulation Prefab Steel Structure Workshop with Glass Wool Insulation Prefab Steel Structure Workshop with Glass Wool Insulation Prefab Steel Structure Workshop with Glass Wool Insulation Prefab Steel Structure Workshop with Glass Wool Insulation Prefab Steel Structure Workshop with Glass Wool Insulation Prefab Steel Structure Workshop with Glass Wool Insulation

Large Image :  Prefab Steel Structure Workshop with Glass Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV
Model Number: Ruly0166
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefab Steel Structure Workshop with Glass Wool Insulation

Description
Features: Steel Structure Workshop Application: Workshop Steel Buildings, Steel Building Construction
Type: Prefab Steel Buildings Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Highlight:

prefab steel buildings

,

metal workshop building

Portal Frame Workshop Steel Buildings / Steel Building Construction For Factory Building
Product Attributes
Attribute Value
Application Workshop Steel Buildings, Steel Building Construction
Features Steel Structure Workshop
Type Prefab Steel Buildings
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
About Steel Structure Workshop Buildings

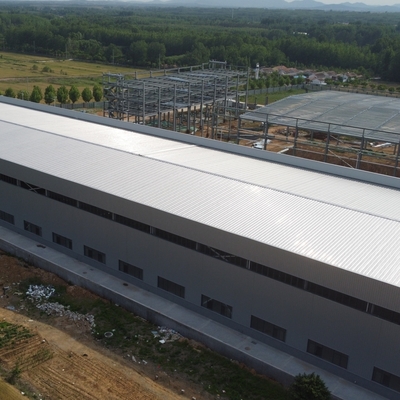

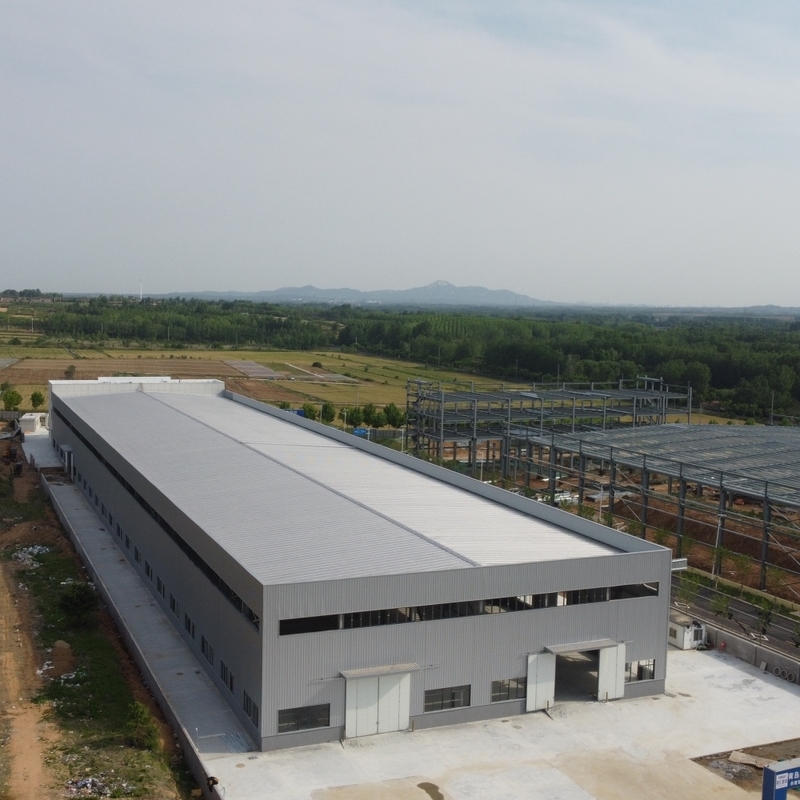

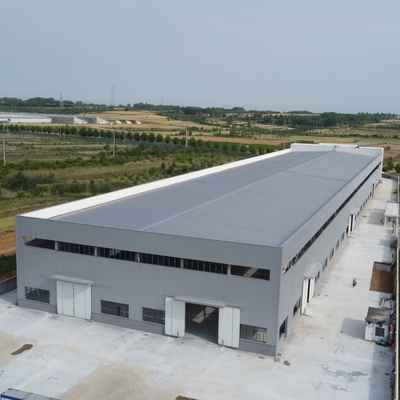

Portal Frame Workshop Steel Buildings / Steel Building Construction For Factory Building is designed for production and storage of refractory insulation material. The workshop measures 150 meters long, 60 meters wide and 12 meters high, utilizing 450 tons of steel in its construction.

Key features include:

  • Large span design with interior columns
  • Integrated downpipe system for efficient drainage
  • Main frame constructed from welded H-beams and columns
  • Galvanized C-shaped steel purlins
  • 150mm thick glass wool composite panels for walls and roof
  • Skylight design for optimal light transmission
  • 2m high aluminum windows and 1m high bar windows
  • 5m high x 3.5m wide sliding doors
Project Specifications
Parameter Value
Structure Type Portal frame, single ridge, two spans
Length 150m
Width 60m
Eave Height 12m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Material 150mm thick glass wool composite panel
Wall Material 150mm thick glass wool composite panel
Door Type Sliding door
Window Type Ribbon Skylight
Height difference (indoor/outdoor) 300mm
Technical Specifications
Main Steel Frame System
Component Specification
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Component Specification
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Component Specification
Roof panel 150 mm Glass wool sandwich panel
Wall panel 150 mm Glass wool sandwich panel
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof Drainage System
Component Specification
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe
Our Manufacturing Facility

Our steel structure fabrication factory spans 35,000㎡ with 20,000㎡ of workshop area. We operate three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines, including advanced plasma cutting equipment.

Prefab Steel Structure Workshop with Glass Wool Insulation 0
Packing and Transportation

All structural components, panels, bolts and accessories are packed to withstand ocean transportation in standard 40'HQ containers. Our skilled workers use cranes and forklifts to load products at our factory, ensuring goods are protected from damage during transit.

Prefab Steel Structure Workshop with Glass Wool Insulation 1
Request a Quote

Please provide the following information for an accurate quotation:

Question Details Required
1. Location _____country, area
2. Size _____mm*_____mm*_____mm
3. Wind load _____kn/m2, _____km/h, _____m/s
4. Snow load _____kn/m2, _____mm
5. Anti-earthquake _____level
6. Brickwall needed If yes, 1.2m high or 1.5m high
7. Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, metal steel sheets will be used
8. Door quantity & size _____units, _____(width)mm*_____(height)mm
9. Window quantity & size _____units, _____(width)mm*_____(height)mm
10. Crane needed If yes, _____units, max. lifting weight____tons; max. lifting height _____m
