Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B

Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B
Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B
Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B

Large Image :  Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0154
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B

Description
Application: Prefab Steel Structure Workshop For Car Repair Shops Type: Prefab Steel Structure Workshop
Usage: Metal Workshop For Car Repair Shops / Mechanic Shop Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Working Scope: Design,Fabrication, Installation
Highlight:

prefab steel buildings

,

steel structure factory building

Lightweight Prefab Steel Structure Workshop For Car Repair Shops / Mechanic Shop
Product Specifications
Attribute Value
Application Prefab Steel Structure Workshop For Car Repair Shops
Type Prefab Steel Structure Workshop
Usage Metal Workshop For Car Repair Shops / Mechanic Shop
Raw steel material Q235B, Q355B
Surface treatment Painting
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Working scope Design, Fabrication, Installation
Project Overview

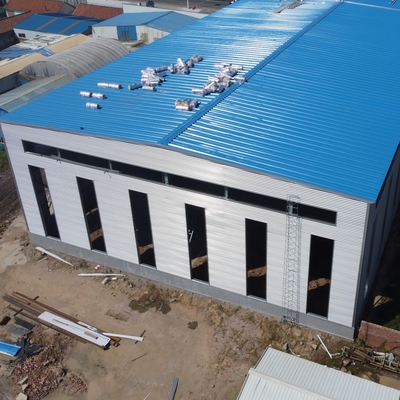

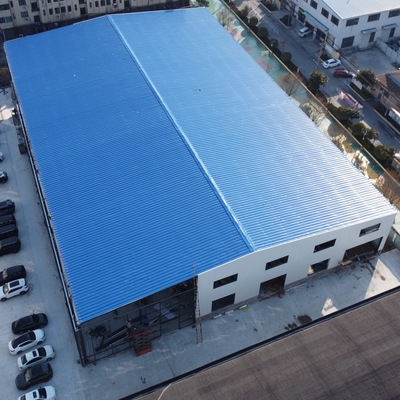

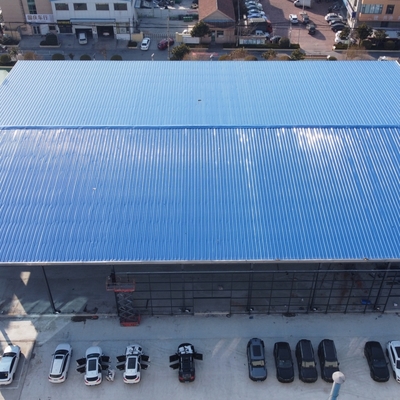

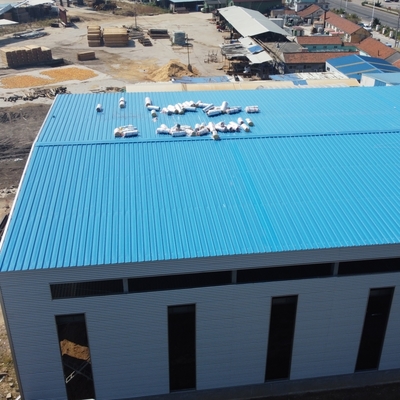

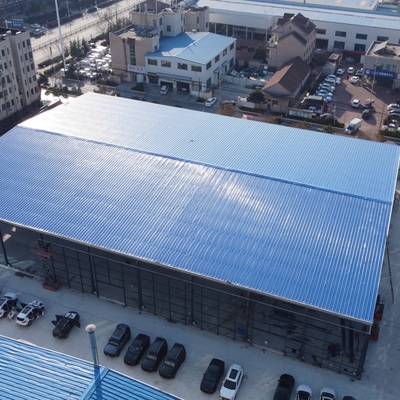

This prefabricated steel frame structure workshop is specifically designed for car repair shops and mechanic shops. The structure features welded H-section steel columns and beams connected by high-strength bolts, with glass wool sandwich panels providing insulation for walls and roofs. Available in clean span or double span configurations, it can include integrated office and storage spaces.
Dimensions
Parameter Range
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-100m
Width 20-80m
Eave Height 6-15m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Height difference (indoor/outdoor) 300mm
Material Specifications
Component Specification Material Treatment
Column H-section steel Q235B, Q345B Paint or Hot dip galvanized
Beam H-section steel Q235B, Q345B Paint or Hot dip galvanized
Bracing Steel rod, Steel pipe, Angle steel Q235B, Q345B -
Purlin C or Z shape, Thickness: 1.8mm~3.0mm Q235B, Q346B Hot dip galvanized
Wall/Roof Panel Sandwich panel or Single sheet Steel T=0.426~0.8mm, insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet, T=1.0~1.5mm Paint or Hot dip galvanized
Production Capabilities
Our factory features three dedicated production lines equipped with advanced machinery including plasma cutting machines for precise steel structure fabrication.
Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B 0
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Design, fabrication and installation of prefabricated steel structures
  • Shop drawing development based on architectural plans
  • Engineering consulting services
Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B 1
Key Advantages
1. High strength and light weight
Steel's high strength-to-weight ratio enables large span structures with minimal material.
2. Excellent durability
Superior plasticity and toughness ensure structural integrity under dynamic loads.
3. Industrialized production
Precision manufacturing in controlled factory conditions ensures consistent quality.
4. Rapid construction
Prefabricated components enable fast on-site assembly and earlier occupancy.
5. Cost efficiency
Reduced foundation requirements and shorter construction timelines lower overall costs.
6. Environmental benefits
Steel is 100% recyclable with minimal construction waste.
Packaging & Shipping
All structural components, panels, and accessories are packed to withstand ocean transportation in standard 40'HQ containers. Our skilled workers use cranes and forklifts to ensure damage-free loading at our factory.
Prefab Steel Workshop for Car Repair Shops - Q235B/Q355B 2
