Product Details:
|
| Application: | Prefab Steel Structure Workshop For Car Repair Shops | Type: | Prefab Steel Structure Workshop |
|---|---|---|---|
| Usage: | Metal Workshop For Car Repair Shops / Mechanic Shop | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Service Life: | 50 Years |
| Wall And Roof: | Glass Wool Sandwich Panel | Working Scope: | Design,Fabrication, Installation |
| High Light: | prefab steel buildings,steel structure factory building |
||

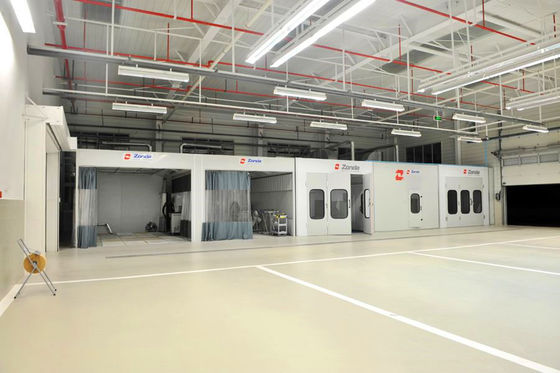

Lightweight Prefab Steel Structure Workshop For Car Repair Shops / Mechanic Shop
Lightweight Prefab Steel Structure Workshop For Car Repair Shops / Mechanic Shop. This is a Prefab Steel Frame Structure Workshop For Car Repair Shops Mechanic Shop. The steel frame structure of this light metal shop buildings is welded H-section steel columns and beams that is connected by high strength bolts. Glass wool sandwich panel is used as roof and wall insulation panels. We could design it in clean span or double spans. It also has office and storage buildings inside.
We are a professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.
|
Name |
Lightweight Prefab Steel Structure Workshop For Car Repair Shops / Mechanic Shop |
|
Structure Type |
Gable frame, single ridge, clean span or two spans |
|
Length |
40- 100m |
|
Width |
20-80m |
|
Eave Height |
6-15m |
|
Roof Slope |
10% |
|
Gable Wall Column Spacing |
7.5m |
|
Roof |
Glass wool sandwich panel |
|
Wall |
Glass wool sandwich panel |
|
Door |
Sliding door |
|
Window |
Ribbon Skylight |
|
Height difference between indoor and outdoor |
300mm |
| Item name | Specification | Material Parameter | Technical Treatment |
| Column | H-section steel | Q235B,Q345B | Paint or Hot dip galvanized |
| Beam | H-section steel | Q235B,Q345B | Paint or Hot dip galvanized |
| Bracing | Steel rod,Steel pipe,Angle steel | Q235B,Q345B | |
| Purling | C or Z shape, purling Thickness:1.8mm~3.0mm | Q235B,Q346B | Hot dip galvanized |
| Wall and roof panel | EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet. | Steel T=0.426~0.8mm,insulation T=50~150mm | Alu-zinc 150g, Fluorocarbon paint |
| Door | Sliding or rolling door | Steel or Aluminum sheet,T=1.0~1.5mm | Paint or Hot dip galvanized |
| Window | alloy-Glass,Aluminium alloy-shutter | T=1.0~2.0mm | Alloy |
| Lighting panel | FRP, T=1.5mm or T=1.8mm | Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ | Light transmittance 85% |
| Ventilator | Turbine ventilator, and electric type | Steel,stainless steel,PC | Paint or Hot dip galvanized,304 |
| Gutter | Galvanized or stainless steel plate | T=2.0mm | Hot dip galvanized,304 |
| Downpipe | PVC pipe,Color steel pipe T=0.5mm | Φ110,160,200 | Paint |
| Bolt | Ordinary, high strength | 10.9S,4.8s | Hot dip galvanized |
| Anchor bolt | Steel rod M24,M27 M30 | Q235B |
We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine. We will show you our production line following the steel structure processing flow as below:
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
| 1 | High strength and light weight | Although the density of steel is larger than that of other building materials, its strength is very high. Under the same force, the steel structure has a small weight and can be made into a structure with a large span. |
| 2 | Good plasticity and good toughness | The plasticity of the steel is good, and the structure will not suddenly break due to accidental overload or partial overload. The toughness of the steel is good, making the structure more adaptable to dynamic loads. |
| 3 | High degree of industrialization in production | The steel structure is mainly produced in a specialized metal structure factory, so the production is simple and the precision is high. |
| 4 | Simple construction and short construction period | All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period. |
| 5 | Wind resistance and structural stability | Steel structure construction with light weight, high strength, good overall rigidity and strong deformation ability |
| 6 | Saving construction costs | The steel structure has light weight, reduces the basic cost, and has a fast construction speed. It can be completed and put into operation as soon as possible, and the comprehensive economic benefits are much better than the concrete structure. |
| 7 | Recyclable | Steel can be recycled, less environmentally polluted when constructed and removed |
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
