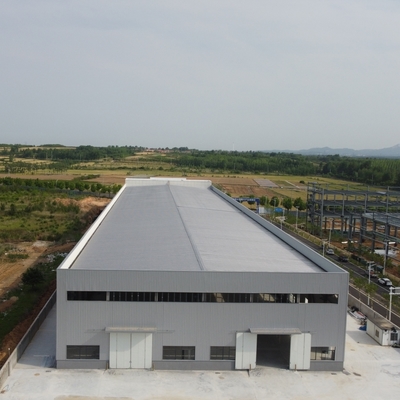

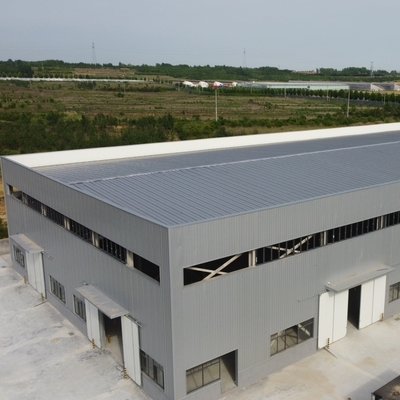

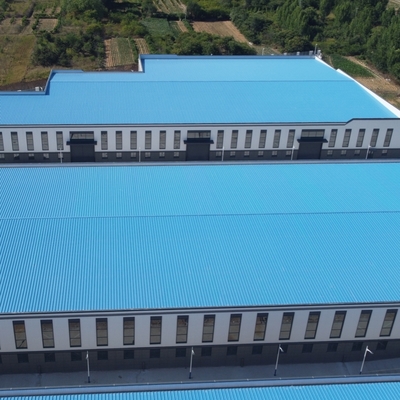

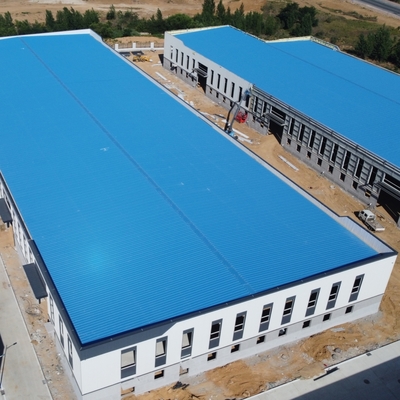

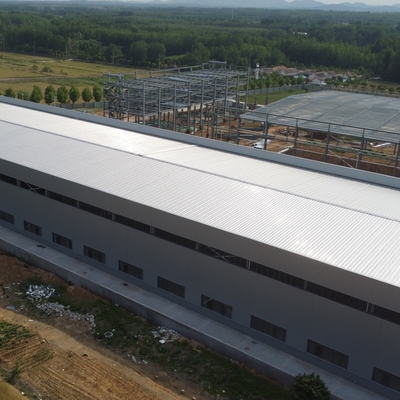

Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels

Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels
Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels
Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels

Large Image :  Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0153
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels

Description
Application: Steel Structure Workshop For Auto Repair Shops Type: Steel Structure Workshop
Usage: Metal Workshop For Auto Repair Shops Working Scope: Design,Fabrication, Installation
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Service Life: 50 Years Wall And Roof: Glass Wool Sandwich Panel
Highlight:

prefab steel buildings

,

metal workshop building

Steel Structure Workshop for Auto Maintenance
Product Specifications
Application Steel Structure Workshop For Auto Repair Shops
Type Steel Structure Workshop
Usage Metal Workshop For Auto Repair Shops
Working Scope Design, Fabrication, Installation
Raw Steel Material Q235B, Q355B
Surface Treatment Painting
Service Life 50 Years
Wall and Roof Glass wool sandwich panel
Project Overview

This steel building construction features welded H-section steel columns and beams connected by high strength bolts, with glass wool sandwich panels for roof and wall insulation. Available in clean span or double span configurations with optional office and storage spaces.

Structural Parameters
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-100m
Width 20-80m
Eave Height 6-15m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Height Difference (Indoor/Outdoor) 300mm
Materials & Technical Specifications
Component Specification Material Treatment
Column/Beam H-section steel Q235B,Q345B Paint or Hot dip galvanized
Purlin C or Z shape (1.8-3.0mm thickness) Q235B,Q346B Hot dip galvanized
Wall/Roof Panel 50-150mm insulation thickness Steel (0.426-0.8mm) Alu-zinc 150g, Fluorocarbon paint
Lighting Panel FRP (1.5-1.8mm) Thermal expansion: 2.2x10-5/cm/cm/℃ 85% light transmittance
Manufacturing Capabilities

Our factory features three production lines with advanced equipment including plasma cutting machines for precision steel fabrication.

Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels 0
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Complete design, fabrication and installation services
  • Engineering drawing development and consulting
Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels 1
Installation Support

We provide detailed installation drawings and can dispatch engineers for on-site guidance or complete installation.

Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels 2
Packaging & Shipping

All components are packed for ocean transportation in 40'HQ containers, with careful loading by skilled workers to prevent damage.

Steel Structure Workshop for Auto Repair Shops with Glass Wool Panels 3
