Prefab Steel Structure Workshop for Car Repair Shops

Prefab Steel Structure Workshop for Car Repair Shops
Prefab Steel Structure Workshop for Car Repair Shops
Prefab Steel Structure Workshop for Car Repair Shops Prefab Steel Structure Workshop for Car Repair Shops Prefab Steel Structure Workshop for Car Repair Shops Prefab Steel Structure Workshop for Car Repair Shops Prefab Steel Structure Workshop for Car Repair Shops Prefab Steel Structure Workshop for Car Repair Shops Prefab Steel Structure Workshop for Car Repair Shops

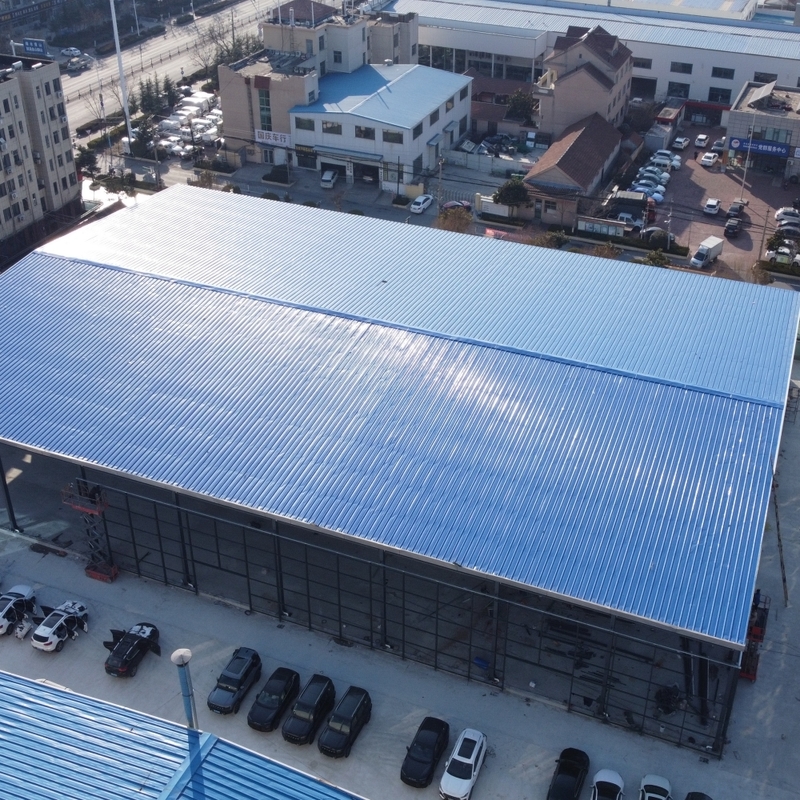

Large Image :  Prefab Steel Structure Workshop for Car Repair Shops

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0152
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefab Steel Structure Workshop for Car Repair Shops

Description
Application: Prefab Steel Buildings For Auto Repair,Car Maintenance Shop, Type: Steel Structure Workshop
Usage: Maintenance Workshop, Car Repair Shops Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Working Scope: Design,Fabrication, Installation
Highlight:

steel structure factory building

,

metal workshop building

Prefabricated Steel Structure Workshop for Car Repair Shops
Product Attributes
Application Prefab Steel Buildings For Auto Repair, Car Maintenance Shop
Type Steel Structure Workshop
Usage Maintenance Workshop, Car Repair Shops
Raw steel material Q235B, Q355B
Surface treatment Painting
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Working scope Design, Fabrication, Installation
Project Specifications
This steel building structure features welded H-section steel columns and beams connected by high-strength bolts, with glass wool sandwich panels for roof and wall insulation. Available in clean span or double span configurations with optional office and storage spaces.
Parameter Specification
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-100m
Width 20-80m
Eave Height 6-15m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Material Glass wool sandwich panel
Wall Material Glass wool sandwich panel
Door Type Sliding door
Window Type Ribbon Skylight
Height difference (indoor/outdoor) 300mm
Material Specifications
Component Specification Material Treatment
Column H-section steel Q235B, Q345B Paint or Hot dip galvanized
Beam H-section steel Q235B, Q345B Paint or Hot dip galvanized
Purlin C or Z shape, Thickness: 1.8-3.0mm Q235B, Q346B Hot dip galvanized
Wall/Roof Panel Sandwich panel or Single sheet Steel T=0.426-0.8mm, insulation T=50-150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel/Aluminum sheet, T=1.0-1.5mm Paint or Hot dip galvanized
Prefab Steel Structure Workshop for Car Repair Shops 0
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Design, fabrication and installation of prefabricated steel buildings
  • Engineering drawings based on your architectural plans
  • Engineering consulting services
Prefab Steel Structure Workshop for Car Repair Shops 1
Installation Process
We provide detailed installation drawings for each project and can dispatch engineers to guide installation or handle complete installation.
Prefab Steel Structure Workshop for Car Repair Shops 2
Packing & Shipping
All components are packed for ocean transportation in 40'HQ containers, with careful loading by skilled workers to prevent damage.
Prefab Steel Structure Workshop for Car Repair Shops 3
