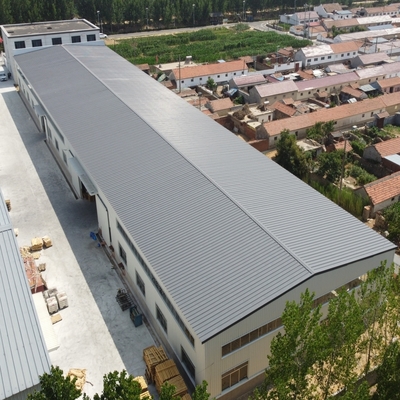

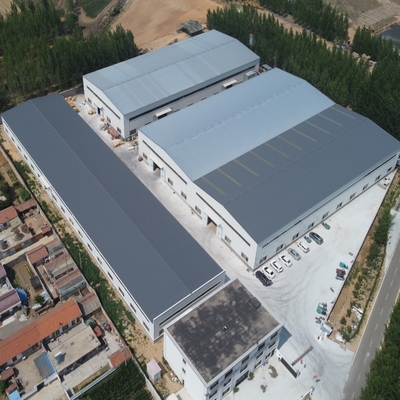

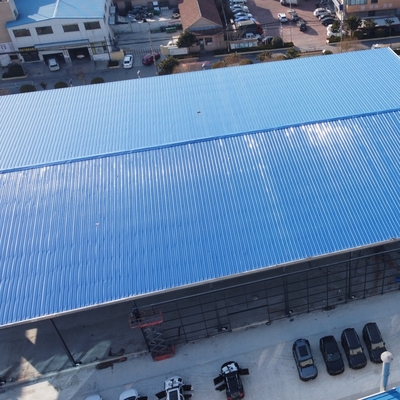

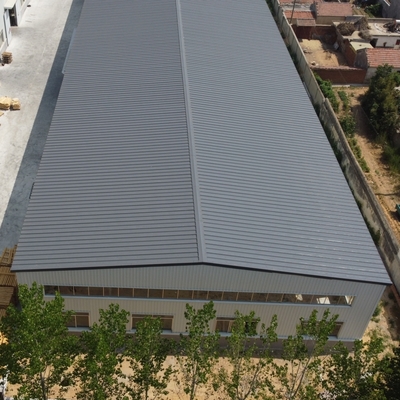

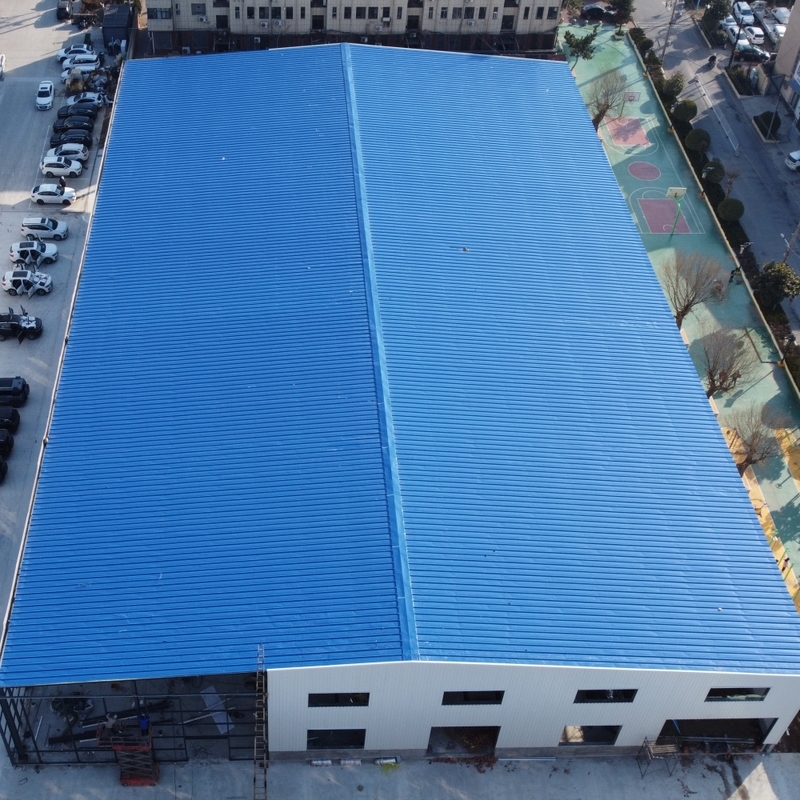

Auto Repair Garage Steel Frame Building with Glass Wool Panels

Auto Repair Garage Steel Frame Building with Glass Wool Panels
Auto Repair Garage Steel Frame Building with Glass Wool Panels
Auto Repair Garage Steel Frame Building with Glass Wool Panels Auto Repair Garage Steel Frame Building with Glass Wool Panels Auto Repair Garage Steel Frame Building with Glass Wool Panels Auto Repair Garage Steel Frame Building with Glass Wool Panels Auto Repair Garage Steel Frame Building with Glass Wool Panels Auto Repair Garage Steel Frame Building with Glass Wool Panels Auto Repair Garage Steel Frame Building with Glass Wool Panels

Large Image :  Auto Repair Garage Steel Frame Building with Glass Wool Panels

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0150
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Auto Repair Garage Steel Frame Building with Glass Wool Panels

Description
Application: Auto Repair Garages Construction Type: Industrial Steel Frame Buildings
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Sandwich Panel Working Scope: Design,Fabrication, Installation
Highlight:

prefab steel buildings

,

metal workshop building

Auto Repair Garages Construction Industrial Steel Frame Buildings
Product Specifications
Application Auto Repair Garages Construction
Type Industrial Steel Frame Buildings
Raw steel material Q235B, Q355B
Surface treatment Painting
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool sandwich panel
Working scope Design, Fabrication, Installation
Product Description

Our Auto Repair Garages Construction Industrial Steel Frame Buildings feature a welded H-section steel column and beam structure connected by high-strength bolts. The roof and wall insulation panels utilize glass wool sandwich panels for superior thermal performance. Available in clean span or double span configurations, these structures can include integrated office and storage spaces.

Key Features
  • Wide span capability with large interior space
  • High strength-to-weight ratio
  • Cost-effective construction solution
  • Rapid construction timeline
  • Excellent insulation properties
  • Superior seismic performance
  • Flexible layout options
Standard Dimensions
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-100m
Width 20-80m
Eave Height 6-15m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Height difference (indoor/outdoor) 300mm
Material Specifications
Component Specification Material Treatment
Column H-section steel Q235B, Q345B Paint or Hot dip galvanized
Beam H-section steel Q235B, Q345B Paint or Hot dip galvanized
Purlin C or Z shape, 1.8mm~3.0mm thickness Q235B, Q346B Hot dip galvanized
Wall/Roof Panel Glass wool sandwich panel Steel T=0.426~0.8mm, insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet, T=1.0~1.5mm Paint or Hot dip galvanized
Our Steel Structure Production Line
Auto Repair Garage Steel Frame Building with Glass Wool Panels 0
Our Services
  • Structural steel fabrication, painting, galvanizing, and pre-assembly
  • Complete design, fabrication, and installation of prefabricated steel structures
  • Shop drawing development based on your architectural plans
  • Professional engineering consulting services
Auto Repair Garage Steel Frame Building with Glass Wool Panels 1
Contact us today for your steel structure building requirements!
