Lightweight Steel Structure Car Service Workshop Q235B Q355B

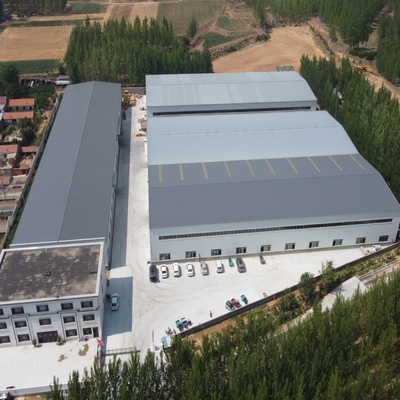

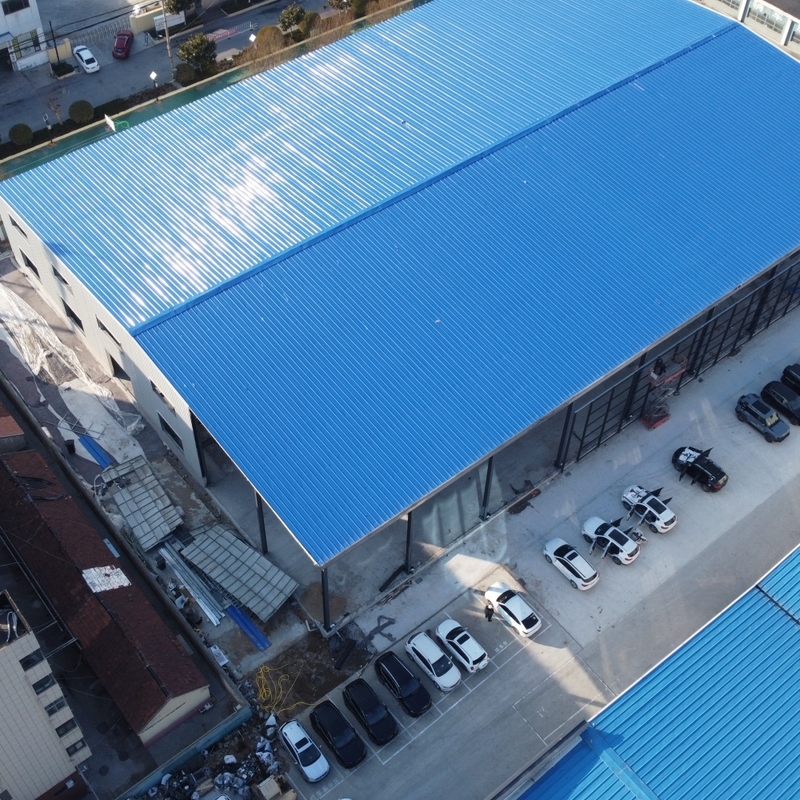

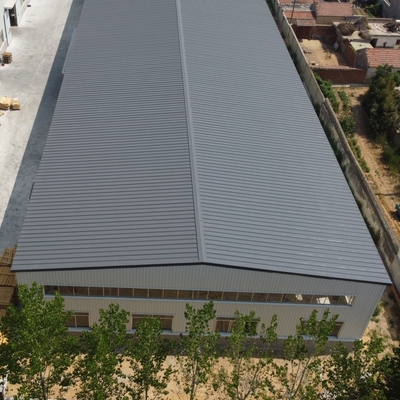

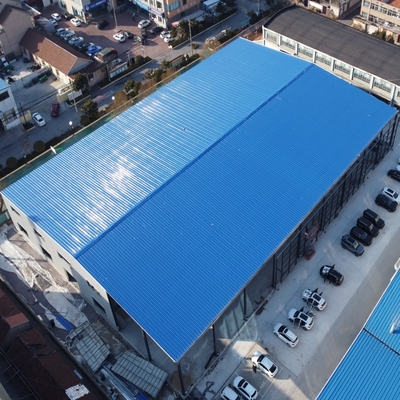

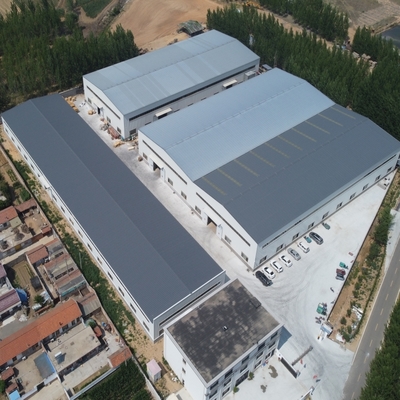

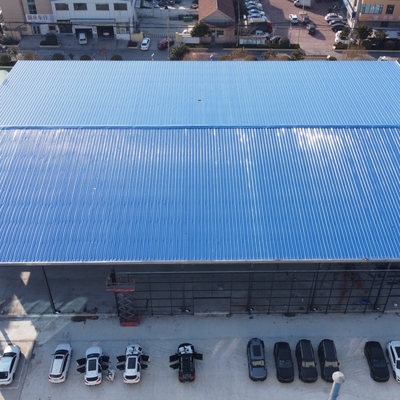

Large Image : Lightweight Steel Structure Car Service Workshop Q235B Q355B

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0148

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Lightweight Steel Structure Car Service Workshop Q235B Q355B

Description

Features:	Maintenance Workshop For Car Service	Application:	Lightweight Steel Structure Buildings
Type:	Portal Frame Steel Structure Buildings	Raw Steel Material:	Q235B, Q355B
Working Scope:	Design,Fabrication, Installation	Surface Treatment:	Painting
Service Life:	50 Years	Wall And Roof:	Steel Cladding Sheet
Highlight:	prefab steel buildings , steel structure factory building

Lightweight Steel Structure Buildings Maintenance Workshop For Car Service

Product Overview

This prefabricated steel structure maintenance workshop is designed specifically for car service applications. The welded H-section steel columns and beams are connected with high-strength bolts, while glass wool sandwich panels provide excellent insulation for both roof and walls. Available in clean span or double span configurations with optional office and storage spaces.

Key Specifications

Structure Type	Gable frame, single ridge, clean span or two spans
Dimensions	Length: 40-100m \| Width: 20-80m \| Eave Height: 6-15m
Roof Slope	10%
Wall/Roof Material	Glass wool sandwich panel
Door Type	Sliding door
Window Type	Ribbon skylight
Height Difference	300mm between indoor and outdoor

Technical Specifications

Component	Specification	Material	Treatment
Column/Beam	H-section steel	Q235B, Q345B	Paint or hot-dip galvanized
Purlin	C or Z shape, 1.8-3.0mm thickness	Q235B, Q346B	Hot-dip galvanized
Wall/Roof Panel	50-150mm insulation thickness	Steel (0.426-0.8mm)	Alu-zinc 150g, Fluorocarbon paint
Ventilator	Turbine or electric type	Steel, stainless steel, PC	Paint or hot-dip galvanized, 304
Fasteners	M24, M27, M30	Q235B	Hot-dip galvanized

Our Services

Structural steel fabrication, painting, galvanizing, and pre-assembly
Complete design, fabrication, and installation of prefabricated steel structures
Detailed fabrication drawings based on your architectural plans
Professional engineering consulting services

Installation Process

We provide detailed installation drawings for each project. Optional on-site engineering support or complete installation services available.

Quotation Requirements

Item	Details Required
Location	Country and specific area
Dimensions	Length × Width × Height (mm)
Environmental Factors	Wind load, snow load, and earthquake resistance level
Wall Requirements	Brickwall height if needed (1.2m or 1.5m)
Insulation	Type preference: EPS, fiberglass wool, rockwool, or PU sandwich panels
Openings	Door and window quantities with dimensions
Crane Requirements	Quantity, max lifting weight, and height if needed
