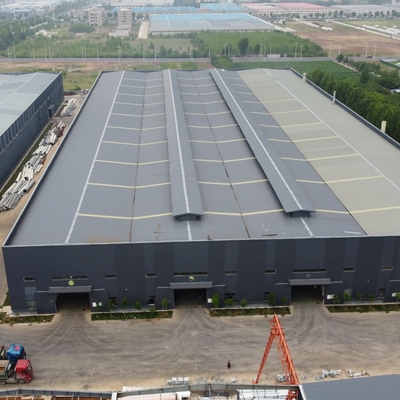

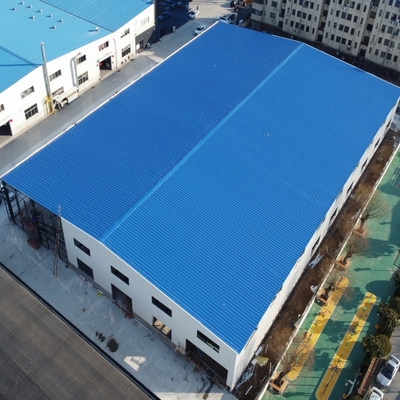

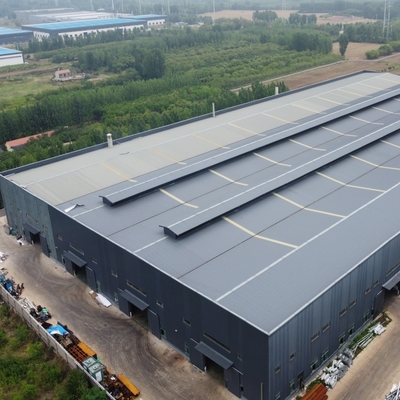

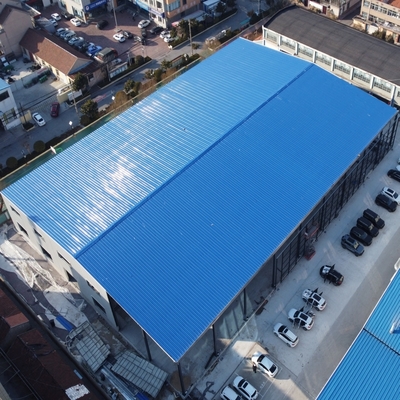

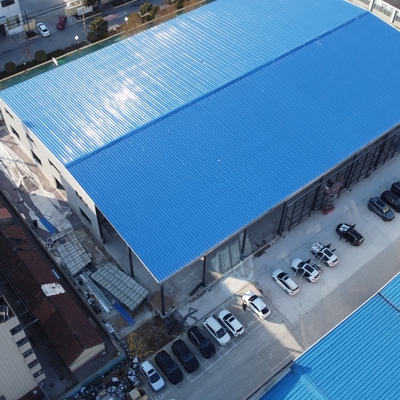

Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B

Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B
Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B
Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B

Large Image :  Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0143
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Steel Cladding Sheet Type: Portal Frame Steel Structure Workshop
Working Scope: Design,Fabrication, Installation Application: Car Maintenance Shop, Auto Repair Shops Buildings
Highlight:

prefab steel buildings

,

metal workshop building

High Performance Light Metal Steel Structure Workshop Buildings For Auto Repair Center
Product Specifications
Raw steel material Q235B, Q355B
Surface treatment Painting
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Steel cladding sheet
Type Portal frame steel structure workshop
Working scope Design, Fabrication, Installation
Application Car Maintenance Shop, Auto Repair Shops Buildings
Project Overview

This light metal workshop building features a welded H-section steel frame structure connected by high-strength bolts, with glass wool sandwich panels for roof and wall insulation. Available in clean span or double span configurations.

Prefabricated steel frame structures are ideal for various applications including factories, warehouses, workshops, and commercial buildings. The system offers numerous advantages including wide spans, large interior spaces, high strength-to-weight ratio, cost efficiency, quick construction, excellent insulation, seismic resistance, and flexible layouts.

Technical Specifications
Structure Type Gable frame, single ridge, clean span or two spans
Length 40-100m
Width 20-80m
Eave Height 6-15m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Material Glass wool sandwich panel
Wall Material Glass wool sandwich panel
Door Type Sliding door
Window Type Ribbon Skylight
Height difference (indoor/outdoor) 300mm
Material Specifications
Component Material Specification
Steel Column Q235B, Q345B H shape, Box, Steel pipe, Hot rolled sheet
Steel Beam Q235B, Q345B H shape, Steel Truss, Hot rolled sheet
Brace Q235B, Q345B Steel rod, Steel pipe, Angle steel
Roof Purlin C or Z shape, Steel purlin
Wall Purlin Q235B, Q345B C or Z shape, Steel purlin
Roof Panels Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool
Wall Panels Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool
Accessories
  • Bolts: Ordinary or High strength
  • Gutter: Galvanized Steel plate or Stainless steel
  • Windows: Aluminum alloy-Glass, Aluminum alloy-shutter, PVC
  • Doors: Sliding or Rolling door
  • Downpipes: PVC pipe or Color steel pipe
  • Edge Cover: Color steel sheet thickness 0.5mm
  • Ventilator: Stainless steel
  • Crane: 5 tons to 30 tons capacity available
Our Manufacturing Facility
Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B 0
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Design, fabrication and installation of prefabricated steel structures
  • Detailed fabrication drawings based on your architectural plans
  • Engineering consulting services
Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B 1

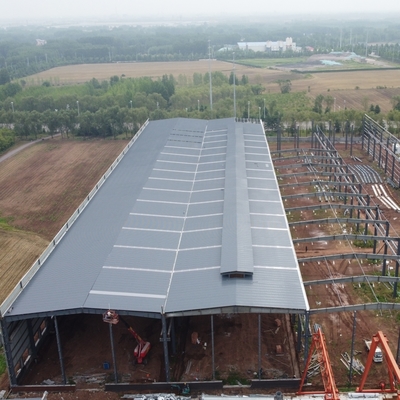

Installation Process

We provide detailed installation drawings for each project. Our engineers can be dispatched to guide installation or we can handle the complete installation process.

Portal Frame Steel Structure Workshop for Auto Repair Shops Q235B Q355B 2
Quotation Requirements

Please provide the following information for an accurate quote:

1 Location (country/area)
2 Size (length × width × height)
3 Wind load (max wind speed)
4 Snow load (max snow height)
5 Earthquake resistance level
6 Brick wall requirements
7 Thermal insulation requirements
8 Door quantity & size
9 Window quantity & size
10 Crane requirements
