Steel Structure Workshop for Car Maintenance Shops Q235B Q355B

Large Image : Steel Structure Workshop for Car Maintenance Shops Q235B Q355B

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0140

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Steel Structure Workshop for Car Maintenance Shops Q235B Q355B

Description

Application:	Car Maintenance Shop, Auto Repair Shops Buildings	Shot Blasting Level:	Steel Structure Workshop Buildings
Type:	Steel Structure Workshop	Raw Steel Material:	Q235B, Q355B
Surface Treatment:	Painting	Service Life:	50 Years
Wall And Roof:	Steel Cladding Sheet	Working Scope:	Design,Fabrication, Installation
Highlight:	prefab steel buildings , metal workshop building

Car Maintenance Shop Steel Structure Workshop Buildings Construction

Product Specifications

Attribute	Value
Application	Car Maintenance Shop, Auto Repair Shops Buildings
Shot blasting level	Steel Structure Workshop Buildings
Type	Steel Structure Workshop
Raw steel material	Q235B, Q355B
Surface treatment	Painting
Service life	50 Years
Wall and Roof	Steel cladding sheet
Working scope	Design, Fabrication, Installation

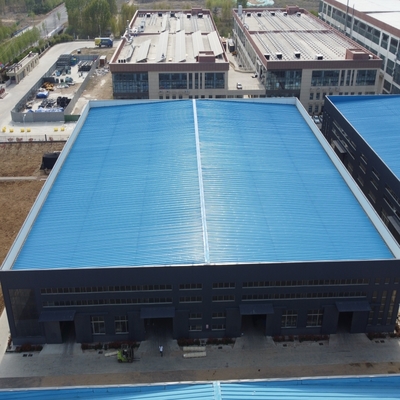

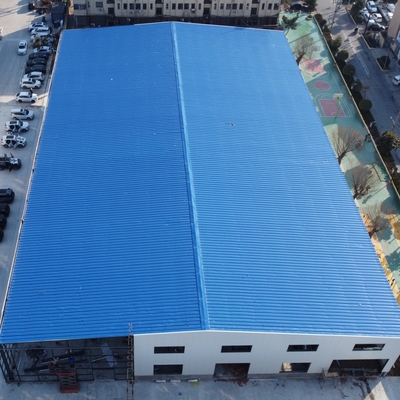

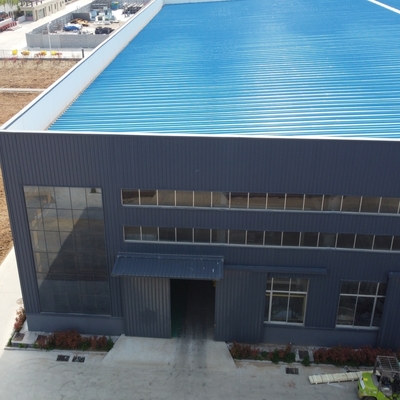

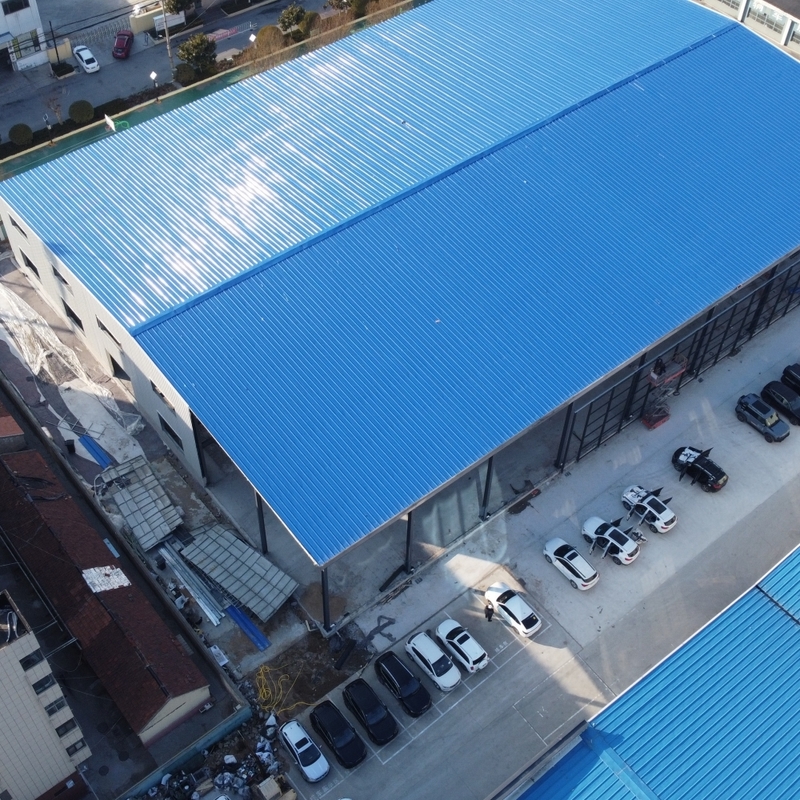

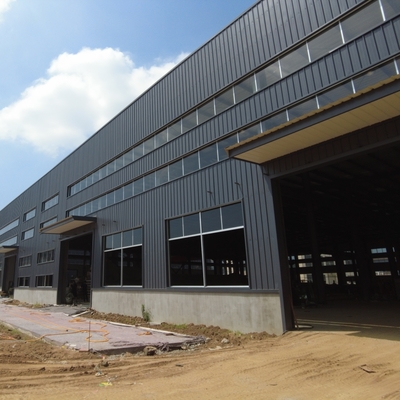

Project Overview

This steel structure workshop building is specifically designed for car maintenance shops, featuring a welded H-section steel column and beam framework. The roof and wall insulation panels utilize glass wool sandwich panels for optimal thermal performance.

Key Dimensions

Structure Type	Gable frame, single ridge, two spans
Length	80m
Width	40m
Eave Height	11m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof Material	Glass wool sandwich panel
Wall Material	Glass wool sandwich panel

Our Competitive Advantages

Professional Design Team
Custom drawings or steel quantity calculations based on your requirements

Skilled Fabrication
Independent production schedules and worker training for each project

One-Stop Service
Customized solutions with integrated project proposals

Quality Control
Professional QC team ensures product and service quality

After-Sales Support
Comprehensive maintenance and support services

Material Specifications

Component	Material
Steel Column/Beam	Q235B, Q345B H-shape, Box, Steel pipe, Hot rolled sheet
Brace	Q235B, Q345B Steel rod, Steel pipe, Angle steel
Roof Purlin	C or Z shape steel purlin
Wall/Roof Panels	Single steel sheet or sandwich panels (EPS, Rock wool, PU, Glass wool)

Production Capabilities

Our 35,000㎡ fabrication facility includes 20,000㎡ of workshop space with three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines, and advanced equipment including plasma cutting machines.

Comprehensive Services

Structural steel fabrication, painting, galvanizing, and pre-assembly
Complete design, fabrication, and installation of prefabricated steel structures
Custom fabrication drawings based on your architectural plans
Professional engineering consulting services

Quotation Requirements

To provide an accurate quote, we require the following information:

Information Needed	Details Required
Project Location	Country and specific area
Building Dimensions	Length × Width × Height (mm)
Environmental Factors	Wind load, snow load, and earthquake resistance requirements
Insulation Needs	Type of thermal insulation required
Door/Window Specifications	Quantity and dimensions
Crane Requirements	If needed, specify capacity and lifting height
