ASTM A36 Steel Workshop with Overhead Crane Rock Wool Insulation

Large Image : ASTM A36 Steel Workshop with Overhead Crane Rock Wool Insulation

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0119

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

ASTM A36 Steel Workshop with Overhead Crane Rock Wool Insulation

Description

Application:	Steel Workshop, Warehouse, Factory	Raw Steel Material:	Q235B, Q355B, ASTM A36
Shot Blasting Level:	Sa 2.5	Service Life:	50 Years
Wall And Roof:	Rock Wool	Surface Treatment:	Painting
Type:	Large Span Multi Span Steel Frame Structure	Working Scope:	Design,Fabrication, Installation
Highlight:	prefab steel buildings , metal workshop building

ASTM A36 Steel Structure Workshop With Overhead Crane Rock Wool Large Span

Product Attributes

Attribute	Value
Application	Steel workshop, warehouse, factory
Raw steel material	Q235B, Q355B, ASTM A36
Shot blasting level	Sa 2.5
Service life	50 Years
Wall and Roof	Rock wool
Surface treatment	Painting
Type	Large span multi span steel frame structure
Working scope	Design, Fabrication, Installation

Project Information

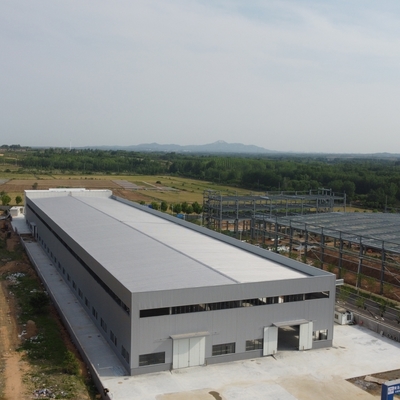

This Large Span Industrial Steel Frame Structure Workshop Building measures 180m × 90m × 12m. The structure features four spans, each equipped with two 5-ton overhead cranes. Column spacing is 8 meters. The workshop is constructed with welded H-shaped steel components, joined using high-strength bolts. Wall and roof insulation consists of 75mm glass wool sandwich panels.

Steel Structure Material Specifications

Item	Specification	Material	Treatment
Column	H shape steel	Q235B, Q345B	Paint or Hot dip galvanized
Beam	H shape, steel Truss	Q235B, Q345B	Paint or Hot dip galvanized
Bracing	Steel rod, Steel pipe, Angle steel	Q235B, Q345B	-
Purlin	C or Z shape, thickness: 1.8mm~3.0mm	Q235B, Q346B	Hot dip galvanized
Wall/Roof panel	Glass wool Sandwich panel	Steel T=0.426~0.8mm, insulation T=50~150mm	Alu-zinc 150g, Fluorocarbon paint
Door	Sliding or rolling door	Steel or Aluminum sheet, T=1.0~1.5mm	Paint or Hot dip galvanized
Window	Alloy-Glass, Aluminium alloy-shutter	T=1.0~2.0mm	Alloy
Lighting panel	FRP, T=1.5mm or T=1.8mm	Coefficient of thermal expansion: 2.2x10-5/cm/cm/℃	Light transmittance 85%
Ventilator	Turbine ventilator, electric type	Steel, stainless steel, PC	Paint or Hot dip galvanized, 304
Gutter	Galvanized or stainless steel plate	T=2.0mm	Hot dip galvanized, 304
Downpipe	PVC pipe, Color steel pipe T=0.5mm	Φ110, 160, 200	Paint
Bolt	Ordinary, high strength	10.9S, 4.8s	Hot dip galvanized
Anchor bolt	Steel rod M24, M27, M30	Q235B	-

Installation Process

We provide detailed construction drawings for each project and offer installation guidance. Training is available at our factory, and we can dispatch engineers for on-site supervision or complete the installation with our professional construction team.

Our Services

Structural steel fabrication, painting, galvanizing, pre-assembly
Design, fabrication and installation of prefabricated steel structure buildings
Development of fabrication/shop drawings based on your architectural plans
Engineering consulting services

Quotation Requirements

Please provide the following information for an accurate quote:

1	Location (where will be built?)	_____country, area
2	Size: length × width × height	_____mm × _____mm × _____mm
3	Wind load (max. wind speed)	_____kn/m², _____km/h, _____m/s
4	Snow load (max. snow height)	_____kn/m², _____mm
5	Anti-earthquake	_____level
6	Brickwall needed or not	If yes, 1.2m high or 1.5m high
7	Thermal insulation	If yes, EPS, fiberglass wool, rockwool, PU sandwich panels; if not, metal steel sheets
8	Door quantity & size	_____units, _____(width)mm × _____(height)mm
9	Window quantity & size	_____units, _____(width)mm × _____(height)mm
10	Crane needed or not	If yes, _____units, max. lifting weight____tons; max. lifting height _____m

Tag:

Contact Person: steven

Tel: 0086-18661691560
