Prefabricated Steel Structure Workshop with Office Q235B/Q355B

Prefabricated Steel Structure Workshop with Office Q235B/Q355B
Prefabricated Steel Structure Workshop with Office Q235B/Q355B
Prefabricated Steel Structure Workshop with Office Q235B/Q355B Prefabricated Steel Structure Workshop with Office Q235B/Q355B Prefabricated Steel Structure Workshop with Office Q235B/Q355B Prefabricated Steel Structure Workshop with Office Q235B/Q355B Prefabricated Steel Structure Workshop with Office Q235B/Q355B Prefabricated Steel Structure Workshop with Office Q235B/Q355B Prefabricated Steel Structure Workshop with Office Q235B/Q355B

Large Image :  Prefabricated Steel Structure Workshop with Office Q235B/Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV
Model Number: Ruly0114
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Structure Workshop with Office Q235B/Q355B

Description
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Type: Portal Frame Structure
Working Scope: Design,Fabrication, Installation Application: Steel Structure Warehouse, Workshop
Highlight:

prefab steel buildings

,

metal workshop building

Ready Made Steel Structure Workshop Architecture With Office Building Inside
Product Specifications
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool
Type Portal frame structure
Working scope Design, Fabrication, Installation
Application Steel structure warehouse, workshop
Project Description

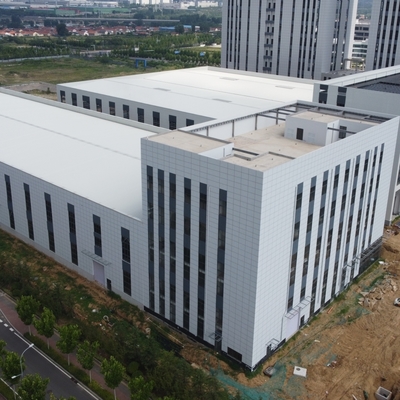

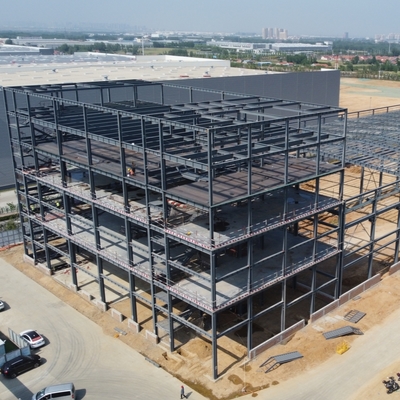

This ready-made steel structure workshop with integrated office building is designed for water tank production. The main structure consists of welded H-section steel beams and columns connected by high-strength bolts. The workshop features two spans, with one span including a mezzanine level (two storeys).
Prefabricated steel frame structures offer significant advantages over concrete buildings, providing large open spaces and easier installation.
Detailed Specifications
  • Steel Frame: H section steel | Q235/Q345 steel 8mm/10mm
  • Welding: Automatic submerged arc welding
  • Rust removal: Sand blasting
  • Surface finish: Alkyd paint or galvanized
  • Intensive bolt: M20, Grade 10.9
  • Supporting System: Angle brace (L50x4), Horizontal brace (Φ20), Column brace (Φ20), Tie rod (Φ89*3)
  • Ordinary bolt: M12 Galvanized bolt
  • Roof System: Purlin (C160*60*2.5), Roof panel (sandwich panel or corrugated steel sheet), Sky light (6mm thick PVC)
  • Wall System: Purlin (C160*60*2.5), Wall panel (sandwich panel or corrugated steel plate)
  • Ventilation: Ventilation ball
  • Doors & Windows: Rolling door/sliding door PVC/alu/steel/window

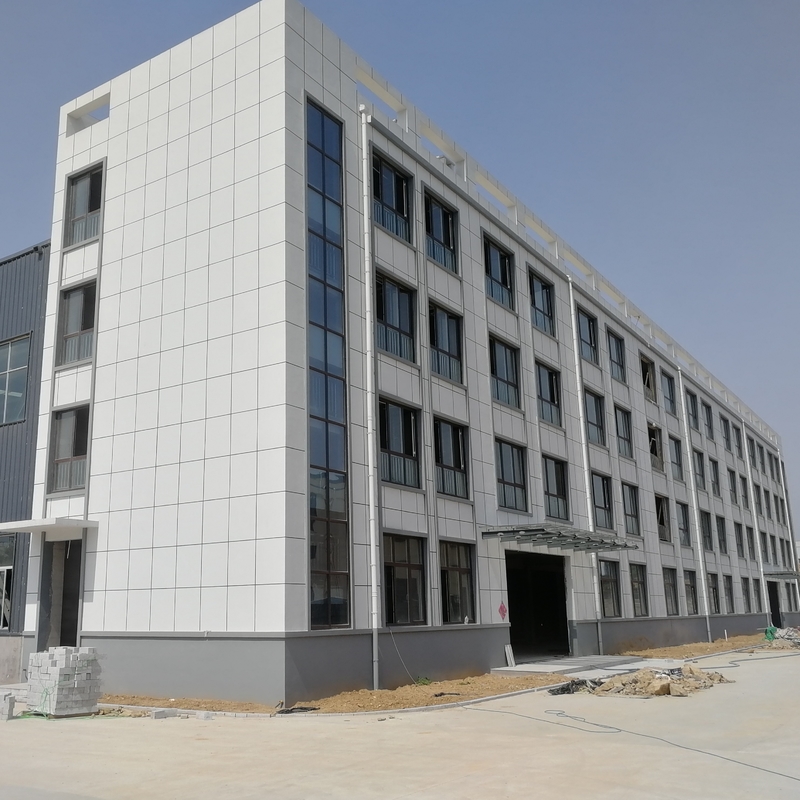

Steel Frame Structure Office Building
Prefabricated Steel Structure Workshop with Office Q235B/Q355B 0
Installation Services
We provide detailed construction drawings for each project and offer comprehensive installation support. This includes factory training for your team, on-site guidance by our engineers, or complete installation by our professional construction team.
Prefabricated Steel Structure Workshop with Office Q235B/Q355B 1
Packing & Loading
All structural components, panels, bolts, and accessories are packed to withstand ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to ensure safe loading without damage to the goods.
Prefabricated Steel Structure Workshop with Office Q235B/Q355B 2
Quotation Information
Please provide the following details for an accurate quote:
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
