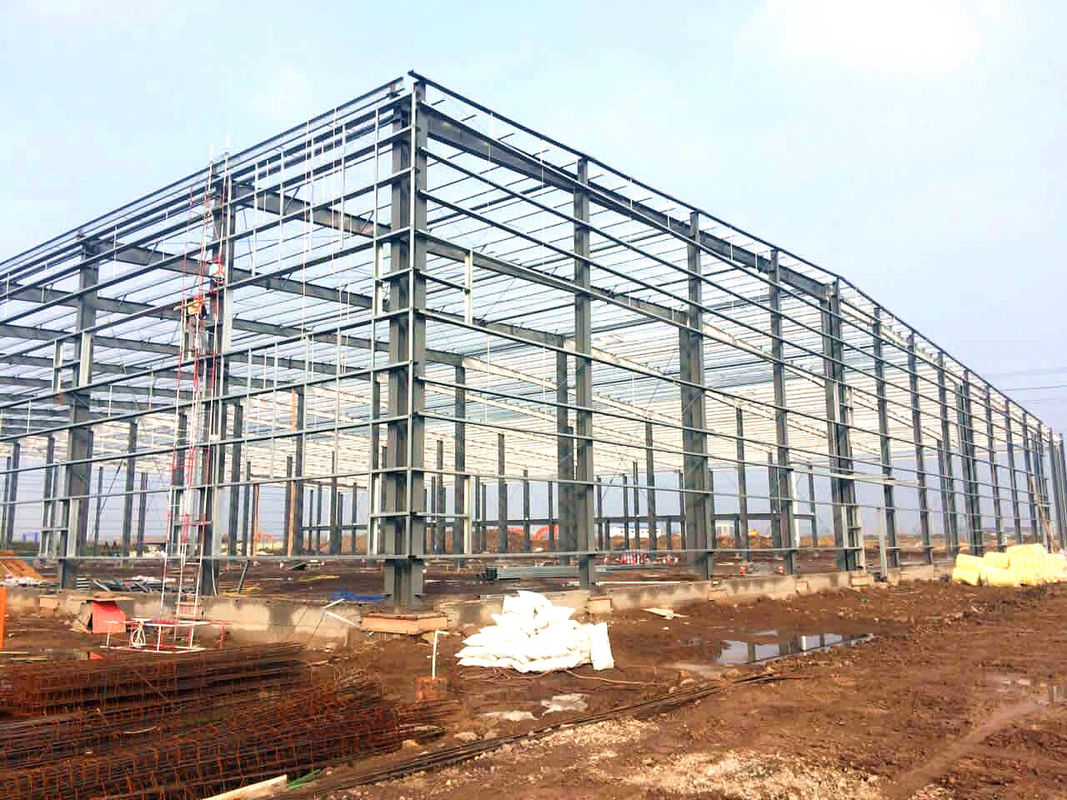

Industry Modern PEB Steel Buildings / Steel Structure Building Construction

Industry Modern PEB Steel Buildings / Steel Structure Building Construction
Industry Modern PEB Steel Buildings / Steel Structure Building Construction Industry Modern PEB Steel Buildings / Steel Structure Building Construction Industry Modern PEB Steel Buildings / Steel Structure Building Construction

Large Image :  Industry Modern PEB Steel Buildings / Steel Structure Building Construction

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0100
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Industry Modern PEB Steel Buildings / Steel Structure Building Construction

Description
Features: Steel Structure Building Construction Application: PEB Steel Buildings , Steel Structure Warehouse
Type: Portal Frame Steel Structure Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Sandwich Panel Working Scope: Design,Fabrication, Installation
High Light:

pre engineered steel buildings

,

steel frame structure



Industry Modern PEB Steel Buildings / Steel Structure Building Construction



Project introduction:



Industry Modern PEB Steel Buildings / Steel Structure Building Construction have lots advantages compared with traditional concrete and wooden buildings: It has incomparable superiority. The steel structure warehouse building is energy-saving and environmentally friendly, and the steel structure itself can be recycled without any construction waste. The components of the steel structure are mass-produced in advance, and then processed and installed together, which greatly saves the cost. In terms of usage rate, the steel structure warehouse can occupy the land to the utmost extent compared to other types of workshops, and it is not necessary to install too many columns. The most important thing is that the steel structure has a light weight and a long service life of up to 100 years. For coastal and earthquake-prone areas, steel structures are more protective because they are highly resistant to earthquakes and winds.



Material list and technical parameters



No. Item Details of steel structure building or steel frame
1 Material Material carbon structural steel
2 Produce Lead time Normallly 45days after down payment, also according to quantity.
3 Quality Certification Quality certificate from factory, the third party by client request.
4 Dimensions Length H beam: 4000-15000mm
5 Thickness: web plate: 6-32mm
6 wing plate: 6-40mm
7 Height 200-1200mm
8 Color According to customers
9 Size MOQ is 1000 m2, width * length * eave height,
10 Main components Base Cement and steel foundation bolts
11 Main frame H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12 Secondary frame : galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13 Material Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14 Purlin C or Z purlin: Size from C120~C320, Z100~Z20
15 Column X-type, tree type ,lattice, Cross, Box etc.
16 Bolt Plain bolt and High-strength bolt
17 Roof & wall PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
18 Canopy steel sheet, PU sandwich panel, Rockwool sandwich panel
19 Door Sliding or rolling door
20 Window Aluminium alloy window
21 Surface Two lays of rust-proof painting or Hot Dip Galvanized
22 Sheet 0.5mm or 0.6mm galvanized sheet
23 Accessories Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24 Finishing options Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25 Usages 1. Steel workshop, steel warehouse, steel structure plant
26 2. Steel web frame structure
27 3. Steel H-column and steel H-beam
28 4. Portal frame products
29 5. High rise building project
30 6. Others steel structure buildings



Steel structure production line:

Industry Modern PEB Steel Buildings / Steel Structure Building Construction 0

Our service:

1. Structural steel fabrication, painting , galvanizing , pre-assembly

2. Designing, fabrication and installation for Prefabricated steel structure building.

3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing

4. Engineering consulting service

Industry Modern PEB Steel Buildings / Steel Structure Building Construction 1

Packing and transport:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Industry Modern PEB Steel Buildings / Steel Structure Building Construction 2

How to quote:

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
