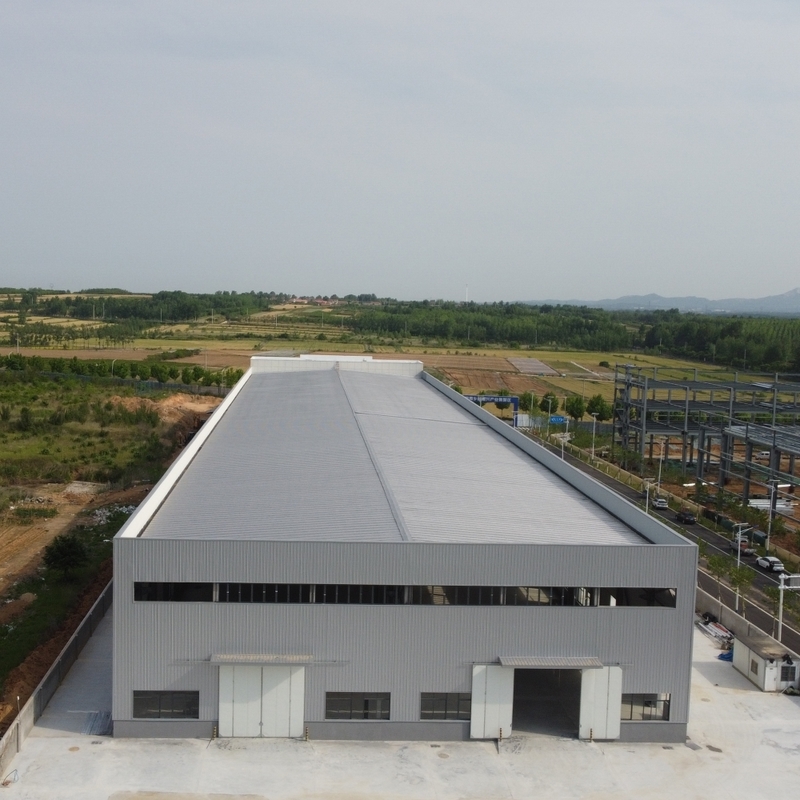

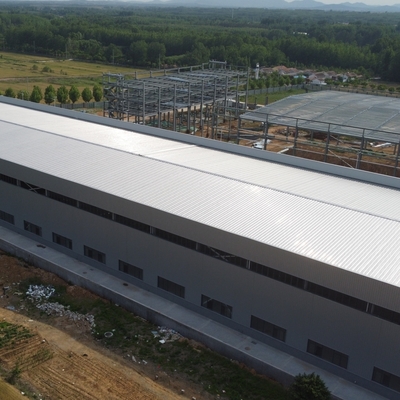

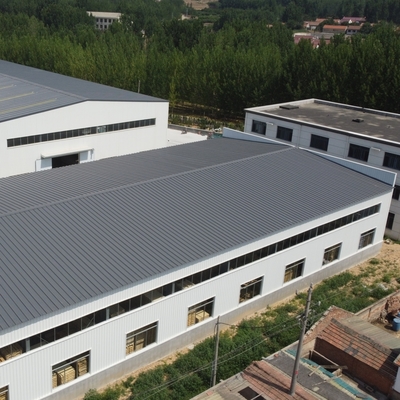

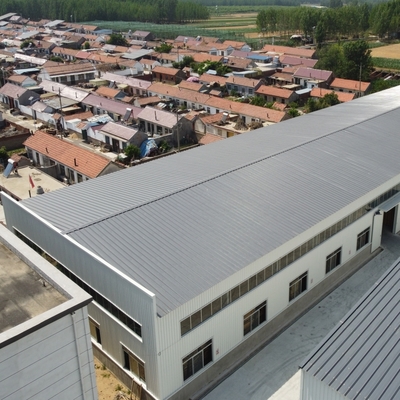

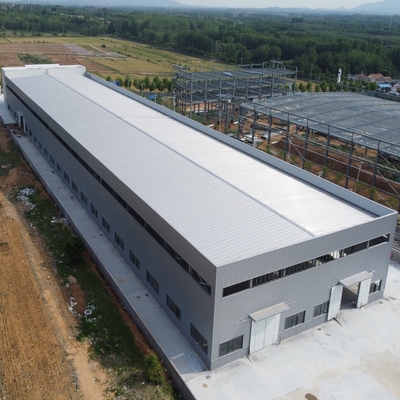

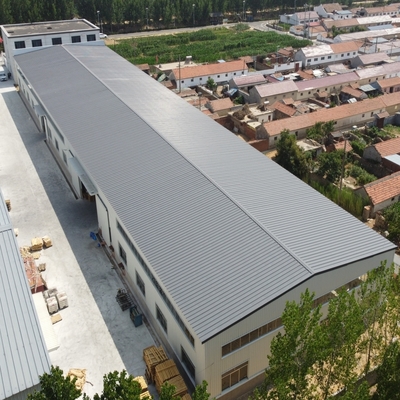

Industrial Steel Structure Workshop with Rock Wool Insulation

Industrial Steel Structure Workshop with Rock Wool Insulation
Industrial Steel Structure Workshop with Rock Wool Insulation
Industrial Steel Structure Workshop with Rock Wool Insulation Industrial Steel Structure Workshop with Rock Wool Insulation Industrial Steel Structure Workshop with Rock Wool Insulation Industrial Steel Structure Workshop with Rock Wool Insulation Industrial Steel Structure Workshop with Rock Wool Insulation Industrial Steel Structure Workshop with Rock Wool Insulation Industrial Steel Structure Workshop with Rock Wool Insulation

Large Image :  Industrial Steel Structure Workshop with Rock Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0086
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Industrial Steel Structure Workshop with Rock Wool Insulation

Description
Application: Modern Industrial Steel Structure Workshop Type: Structural Steel Contractors
Raw Steel Material: Q235B, Q355B, ASTM A36 Shot Blasting Level: Sa 2.5
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
Highlight:

prefab steel buildings

,

steel structure factory building

Modern Industrial Steel Structure Workshop / Structural Steel Contractors
Product Attributes
Attribute Value
Application Modern Industrial Steel Structure Workshop
Type Structural Steel Contractors
Raw steel material Q235B, Q355B, ASTM A36
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Product Description
Our Modern Industrial Steel Structure Workshop is designed for processing and storing automobile parts. The steel structure offers lightweight construction, reducing foundation costs while enabling faster construction times compared to concrete structures, resulting in superior economic benefits.
Specification of Steel Structure Material
Item name Specification Material Parameter Technical Treatment
Column H shape steel Q235B,Q345B Paint or Hot dip galvanized
Beam H shape, steel Truss Q235B,Q345B Paint or Hot dip galvanized
Bracing Steel rod, Steel pipe, Angle steel Q235B,Q345B
Purling C or Z shape, purling Thickness:1.8mm~3.0mm Q235B,Q346B Hot dip galvanized
Wall and roof panel EPS, Rock wool, Pu, Glass wool Sandwich panel or Single sheet Steel T=0.426~0.8mm, insulation T=50~150mm Alu-zinc 150g, Fluorocarbon paint
Door Sliding or rolling door Steel or Aluminum sheet, T=1.0~1.5mm Paint or Hot dip galvanized
Window alloy-Glass, Aluminium alloy-shutter T=1.0~2.0mm Alloy
Lighting panel FRP, T=1.5mm or T=1.8mm Coefficient of thermal expansion:2.2x10-5/cm/cm/℃ Light transmittance 85%
Ventilator Turbine ventilator, and electric type Steel, stainless steel, PC Paint or Hot dip galvanized, 304
Gutter Galvanized or stainless steel plate T=2.0mm Hot dip galvanized, 304
Downpipe PVC pipe, Color steel pipe T=0.5mm Φ110, 160, 200 Paint
Bolt Ordinary, high strength 10.9S, 4.8s Hot dip galvanized
Anchor bolt Steel rod M24, M27 M30 Q235B
Steel Column Fabrication in Our Factory
Industrial Steel Structure Workshop with Rock Wool Insulation 0
Packing and Transport
All structural components, panels, bolts, and accessories are packed with standard packaging suitable for ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts at our factory loading site to ensure safe loading and prevent damage to goods.
Industrial Steel Structure Workshop with Rock Wool Insulation 1
How to Quote
Please provide the following information for an accurate quote:
# Question Your Answer
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
