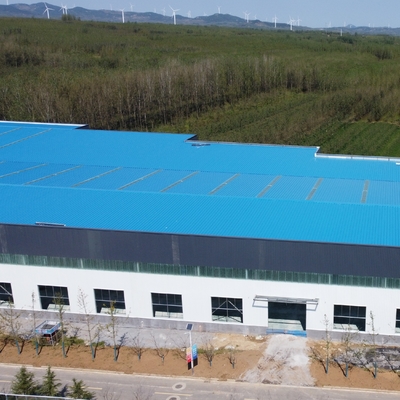

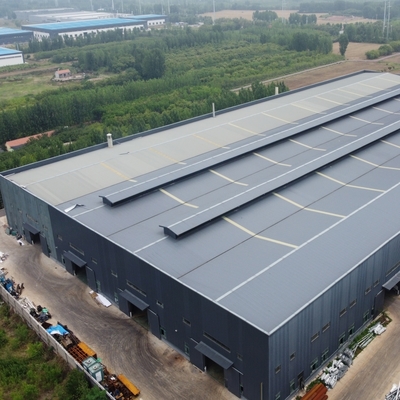

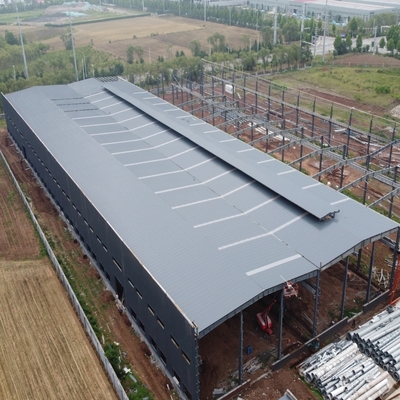

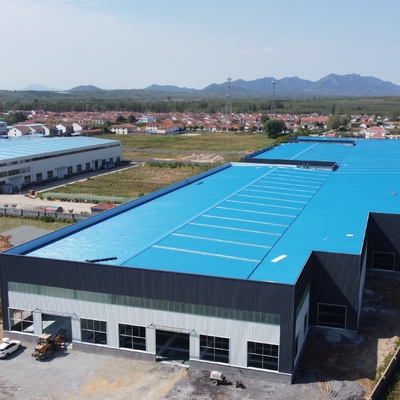

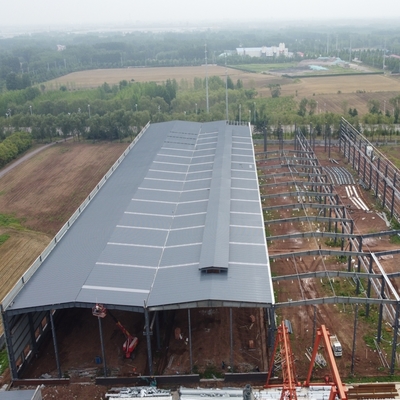

Multi Span Steel Structure Workshop with Glass Wool Insulation

Multi Span Steel Structure Workshop with Glass Wool Insulation
Multi Span Steel Structure Workshop with Glass Wool Insulation
Multi Span Steel Structure Workshop with Glass Wool Insulation Multi Span Steel Structure Workshop with Glass Wool Insulation Multi Span Steel Structure Workshop with Glass Wool Insulation Multi Span Steel Structure Workshop with Glass Wool Insulation Multi Span Steel Structure Workshop with Glass Wool Insulation Multi Span Steel Structure Workshop with Glass Wool Insulation Multi Span Steel Structure Workshop with Glass Wool Insulation

Large Image :  Multi Span Steel Structure Workshop with Glass Wool Insulation

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV，ISO
Model Number: Ruly0039
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Multi Span Steel Structure Workshop with Glass Wool Insulation

Description
Application: Multi Span Steel Structure Workshop / Light Prefab Steel Buildings Type: Steel Structure Workshop
Raw Steel Material: Q235B, Q355B, ASTM A36 Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Highlight:

prefab steel buildings

,

metal workshop building

Multi Span Steel Structure Workshop / Light Prefab Steel Buildings
Product Specifications
Attribute Value
Application Multi Span Steel Structure Workshop / Light Prefab Steel Buildings
Type Steel Structure Workshop
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Painting or Hot-dip Galvanize
Shot blasting level Sa 2.5
Service life 50 Years
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
Product Overview

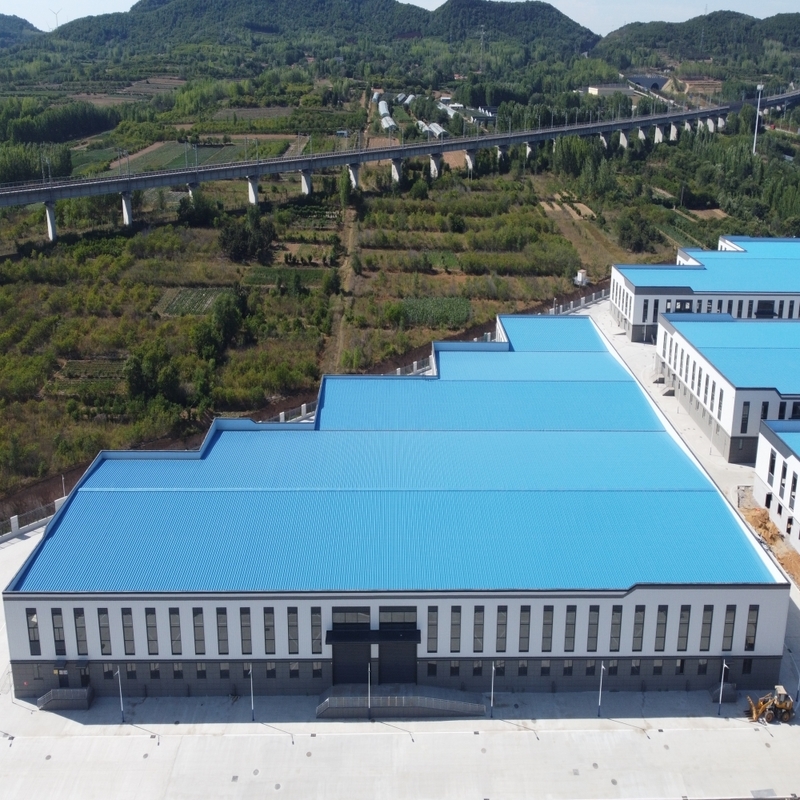

This Multi Span Steel Structure Workshop is designed for electronics factories, featuring 7 continuous spans with single slope roofs. It serves as an integrated facility combining production lines, storage areas, and office spaces, finished with epoxy floor coating and insulated with glass wool sandwich panels for walls and roof.

Key Advantages
  • Provides more usable space compared to concrete structures
  • Reduces construction costs and time significantly
  • Lightweight steel structure without crane requirements
  • Comprehensive service including design, fabrication, and installation
Project Specifications
Structure Type Single ridge for each span, 7 continuous spans with office and storeroom building
Dimensions Length: 210m, Width: 60m, Eave Height: 10m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof & Wall Insulation 75mm thick Glass wool sandwich panel
Doors & Windows Sliding doors, PVC/aluminum alloy windows
Height Difference 300mm between indoor and outdoor
Structural Components
Main Steel Frame System: H section steel Q355 with alkyd painting, galvanized purlins (XZ160*60*20*2.5), grade 10.9 intensive bolts, and various anchor/ordinary bolts.
Bracing System: Round steel bars (Φ20, Φ25), angle steel (L50*5), steel pipes (Φ127*3) with alkyd painting.
Wall & Roof System: Glass wool sandwich panels, stainless steel ventilators (Φ600), FRP skylights (1.2mm), and color steel plate drainage system.
Production Capabilities

Our 35,000㎡ fabrication facility includes 20,000㎡ workshop space equipped with advanced production lines for H steel, BOX sections, C/Z purlins, and profiling steel sheets, supported by plasma cutting machines.

Multi Span Steel Structure Workshop with Glass Wool Insulation 0
Installation Support
  • Detailed shop drawings provided prior to installation
  • On-site training available at our factory
  • Sample structure assembly demonstration when required
Multi Span Steel Structure Workshop with Glass Wool Insulation 1
Packaging & Shipping

All components are packed for ocean transportation in 40'HQ containers, with careful loading by skilled workers using cranes and forklifts to prevent damage during transit.

Quotation Requirements

Please provide the following information for an accurate quote:

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake requirements _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation requirements EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane requirements If yes, _____units, max. lifting weight____tons; max. lifting height _____m
