Steel Structure Garment Factory Building Multi Spans Workshop

Steel Structure Garment Factory Building Multi Spans Workshop
Steel Structure Garment Factory Building Multi Spans Workshop
Steel Structure Garment Factory Building Multi Spans Workshop Steel Structure Garment Factory Building Multi Spans Workshop Steel Structure Garment Factory Building Multi Spans Workshop Steel Structure Garment Factory Building Multi Spans Workshop Steel Structure Garment Factory Building Multi Spans Workshop Steel Structure Garment Factory Building Multi Spans Workshop Steel Structure Garment Factory Building Multi Spans Workshop

Large Image :  Steel Structure Garment Factory Building Multi Spans Workshop

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV，ISO
Model Number: Ruly0036
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Steel Structure Garment Factory Building Multi Spans Workshop

Description
Features: Steel Structure Workshop Application: Ready Made Steel Structures Garment Factory Building
Type: Multi Spans Metal Workshop Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
Highlight:

steel structure factory building

,

metal workshop building

Ready Made Steel Structures Garment Factory Building / Multi Spans Metal Workshop
Product Specifications
Attribute Value
Application Ready Made Steel Structures Garment Factory Building
Type Multi Spans Metal Workshop
Features Steel Structure Workshop
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof Glass wool
Working scope Design, Fabrication, Installation
Product Overview

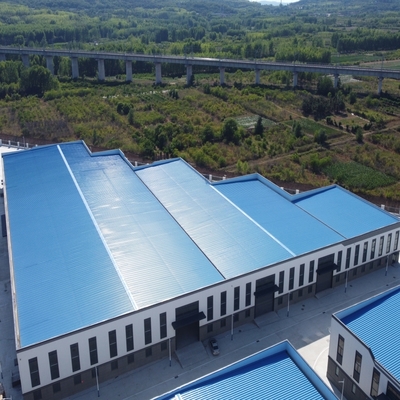

This pre-engineered steel frame structure is specifically designed for garment factory applications. The two-span, two-ridge design features roof skylights, fixed windows, and sliding windows to maximize natural lighting. The glass wool sandwich panel construction provides excellent thermal insulation.

Key advantages over traditional concrete construction include:

  • Greater usable space efficiency
  • Significant cost and time savings
  • Lightweight steel structure without crane requirements
  • Integrated office and storage space
Project Specifications
Structure Type Portal frame, two ridges, two spans with office and storeroom building
Length 120m
Width 50m
Eave Height 11m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof Material 75mm thick Glass wool sandwich panel
Wall Material 75mm thick Glass wool sandwich panel
Door Type Sliding door
Window Type Ribbon Skylight
Height difference (indoor/outdoor) 300mm
Structural Components
Main Steel Frame System
Main structure H section steel Q355, alkyd painting (two primary, two finish coats)
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Glass wool sandwich panel
Wall panel Glass wool sandwich panel
Edge cover 0.5mm color plate, angle Alu.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Our Capabilities

We specialize in prefabricated steel structures including:

  • Warehouses and workshops
  • Storage sheds and garages
  • Industrial hangars and showrooms
  • Office buildings and dormitories
  • Specialized structures for oil & gas projects
Steel Structure Garment Factory Building Multi Spans Workshop 0
Installation Support

We provide comprehensive installation support through:

  1. Detailed shop drawings prior to installation
  2. On-site training at our factory when required
  3. Sample assembly demonstrations for complex projects
Steel Structure Garment Factory Building Multi Spans Workshop 1
Request a Quote

Please provide the following information for an accurate quote:

1. Location (country, area) _____
2. Size (L*W*H in mm) _____*_____*_____
3. Wind load (max. wind speed) _____kn/m², _____km/h, _____m/s
4. Snow load (max. snow height) _____kn/m², _____mm
5. Earthquake resistance level _____
6. Brick wall requirements _____ (1.2m/1.5m high if needed)
7. Thermal insulation type _____ (EPS, fiberglass, rockwool, PU)
8. Door quantity & size _____ units, _____mm*_____mm
9. Window quantity & size _____ units, _____mm*_____mm
10. Crane requirements _____ units, max _____tons, height _____m
