Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B

Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B
Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B
Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B

Large Image :  Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO, BV
Model Number: Ruly0029
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B

Description
Features: Steel Frame Workshop Construction Application: Heavy Duty Steel Structure Workshop With Overhead Crane
Type: Steel Structure Workshop Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: EPS Sandwich Panel Columns And Beam: H Section Column&Beam
Highlight:

prefab steel buildings

,

steel structure factory building

Heavy Duty Steel Structure Workshop With Overhead Crane / Steel Frame Workshop Construction
Product Attributes
Attribute Value
Application Heavy Duty Steel Structure Workshop With Overhead Crane
Features Steel Frame Workshop Construction
Type Steel Structure Workshop
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof EPS sandwich panel
Columns and Beam H Section Column & Beam
Product Description

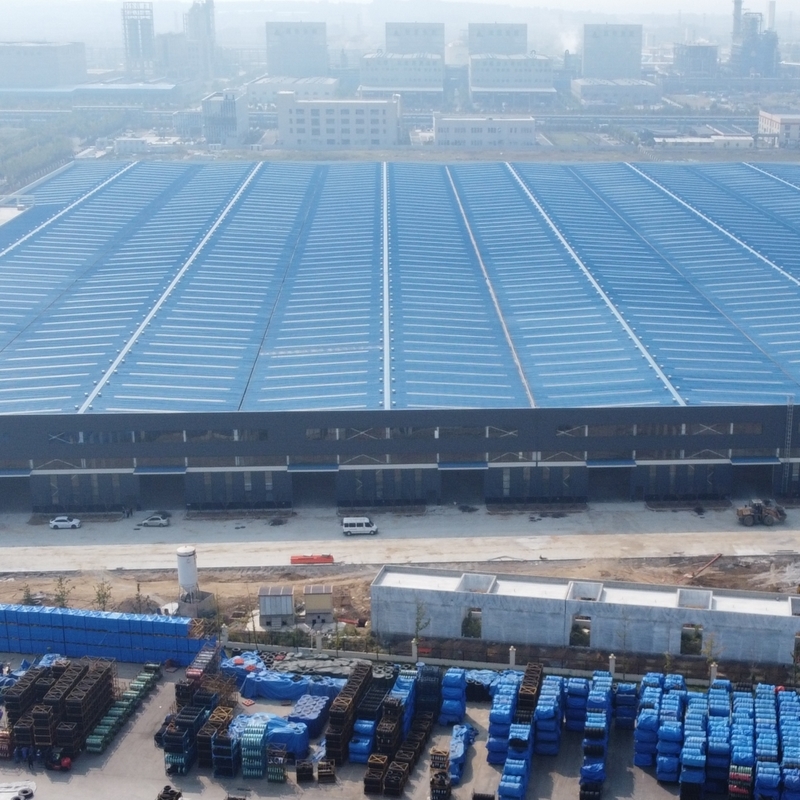

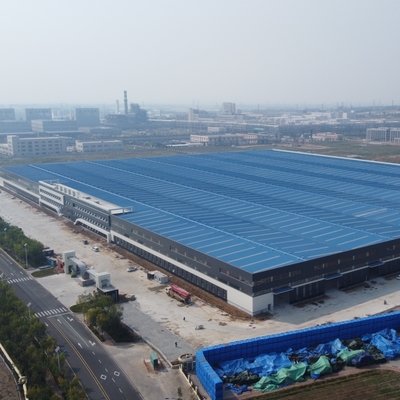

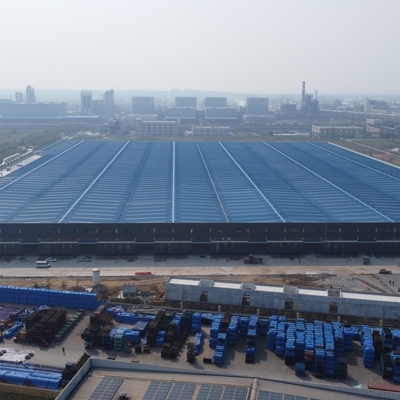

This heavy-duty steel structure workshop is designed for heavy engineering applications, featuring large steel beams and columns as the main structural framework. The workshop includes six 20-ton electric single girder cranes for lifting heavy machinery and parts, with a total steel structure quantity of approximately 950 tons.
Our comprehensive service includes design drawings, steel structure fabrication, installation of steel structures, roof and wall panels, and crane installation. We create customized production schedules for each project and provide engineer-led training for workers before fabrication begins.
Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B 0
Project Content & Scale
New workshop with covered area of 13,500m².
Structure Type 3 spans, single ridge
Length 150m
Width 90m
Eave Height 11m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof 75mm EPS sandwich panel
Wall 75mm EPS sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm
Steel Structure Workshop Specification
Component Specification Material/Process
Main steel frame H-section steel Q345 steel 8mm to 10mm
Welding Automatic Submerged Arc Welding
Rust removing Sand blasting
Surface processing Alkyd Paint or galvanized
High strength bolt Grade 10.9
Supporting system Angle brace L50x4, Steel Q235, Process and painting
Cross bracing dia.20 round bar, Steel Q235, process and painting
Tie bar dia.89*3 round pipe, Steel Q235 Process and painting
Batter brace dia.12 round bar, Steel Q235 process and painting
Ordinary bolt Galvanized bolt
Roof Purlin C160*60*2.5, steel Q235, Painting or galvanized
Out-roof panel Sandwich panel or corrugated steel plate
Transparent skylight 6mm thick PVC
Accessories Sealant, self-tapping screw, etc.
Edge cover Made of color steel sheet thickness 0.5mm
Gutter Made of steel sheet thickness 0.8mm, or PVC
Rinspout dia.110 PVC
Wall Purlin C160*60*2.5, steel Q235, paint
Wall panel Sandwich panel or corrugated steel plate
Accessories Sealant, self-tapping screw etc
Edge cover Made of color steel sheet thickness 0.5mm
Ventilator unpowered axial-flow ventilator or monitor roof
Door & window Rolling door/sliding door, PVC/alu. alloy window
Crane With or without crane, ranging from 5 tons to 20 tons
Installation Process
We provide customized installation drawings for each project and can handle the complete installation process according to your requirements.
Heavy Duty Steel Workshop with Overhead Crane Q235B Q355B 1
Project Information Required for Quotation
Please provide the following details for us to prepare an accurate quote:
  1. Location: Country and area where the workshop will be built
  2. Size: Length × Width × Height (in mm)
  3. Wind load: Maximum wind speed (in kn/m², km/h, or m/s)
  4. Snow load: Maximum snow height (in kn/m² or mm)
  5. Earthquake resistance: Required protection level
  6. Brick wall: Needed or not (if yes, specify height: 1.2m or 1.5m)
  7. Thermal insulation: Required or not (options: EPS, fiberglass wool, rockwool, PU sandwich panels or metal steel sheets)
  8. Door specifications: Quantity and size (width × height in mm)
  9. Window specifications: Quantity and size (width × height in mm)
  10. Crane requirements: Needed or not (if yes, specify quantity, maximum lifting weight in tons, and maximum lifting height in meters)
