Prefabricated Steel Frame Warehouse Building Q235B Q355B Material

Prefabricated Steel Frame Warehouse Building Q235B Q355B Material
Prefabricated Steel Frame Warehouse Building Q235B Q355B Material
Prefabricated Steel Frame Warehouse Building Q235B Q355B Material Prefabricated Steel Frame Warehouse Building Q235B Q355B Material Prefabricated Steel Frame Warehouse Building Q235B Q355B Material Prefabricated Steel Frame Warehouse Building Q235B Q355B Material Prefabricated Steel Frame Warehouse Building Q235B Q355B Material Prefabricated Steel Frame Warehouse Building Q235B Q355B Material Prefabricated Steel Frame Warehouse Building Q235B Q355B Material

Large Image :  Prefabricated Steel Frame Warehouse Building Q235B Q355B Material

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, ,ISO, BV
Model Number: Ruly0019
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Frame Warehouse Building Q235B Q355B Material

Description
Application: Industrial Prefabricated Structural Steel Framing Warehouse Usage: Factory Buildings, Garment Factory, Clothes Plant
Type: Prefabricated Steel Frame Buildings Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Steel Cladding/Rock Wool/Glass Wool/EPS/PU Sandwich Panel Columns And Beam: H Section Column&Beam
Highlight:

prefab steel structures

,

preengineered metal buildings

Industrial Prefabricated Structural Steel Framing Warehouse Construction
Product Specifications
Application Industrial Prefabricated Structural Steel Framing Warehouse
Usage Factory Buildings, Garment Factory, Clothes Plant
Type Prefabricated Steel Frame Buildings
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Service life 50 Years
Wall and Roof Steel cladding/Rock wool/Glass wool/EPS/PU sandwich panel
Columns and Beam H Section Column&Beam
Project Overview

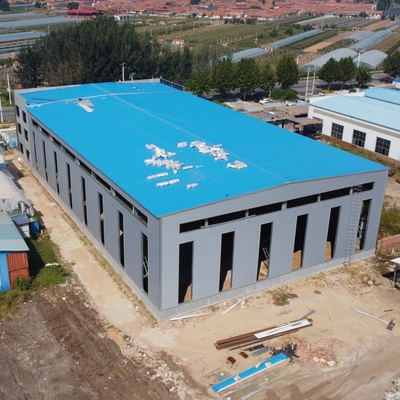

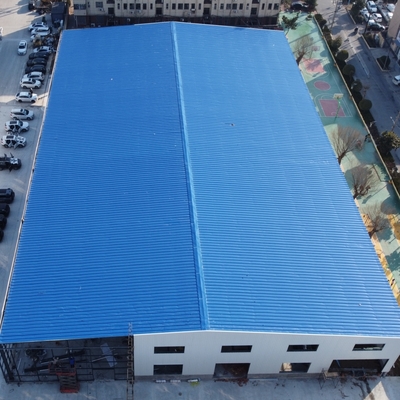

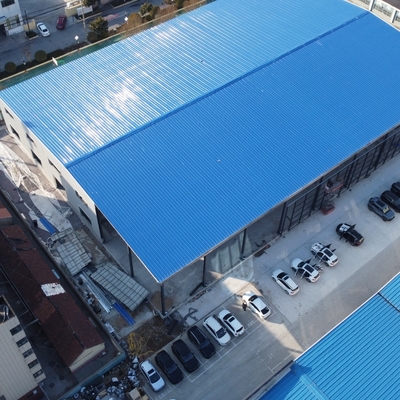

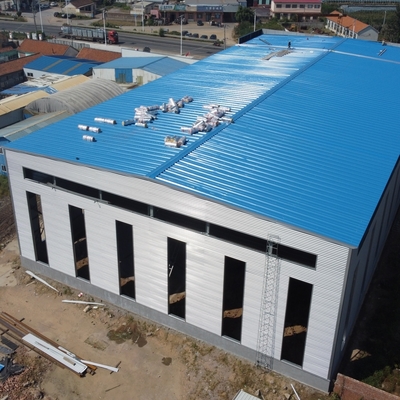

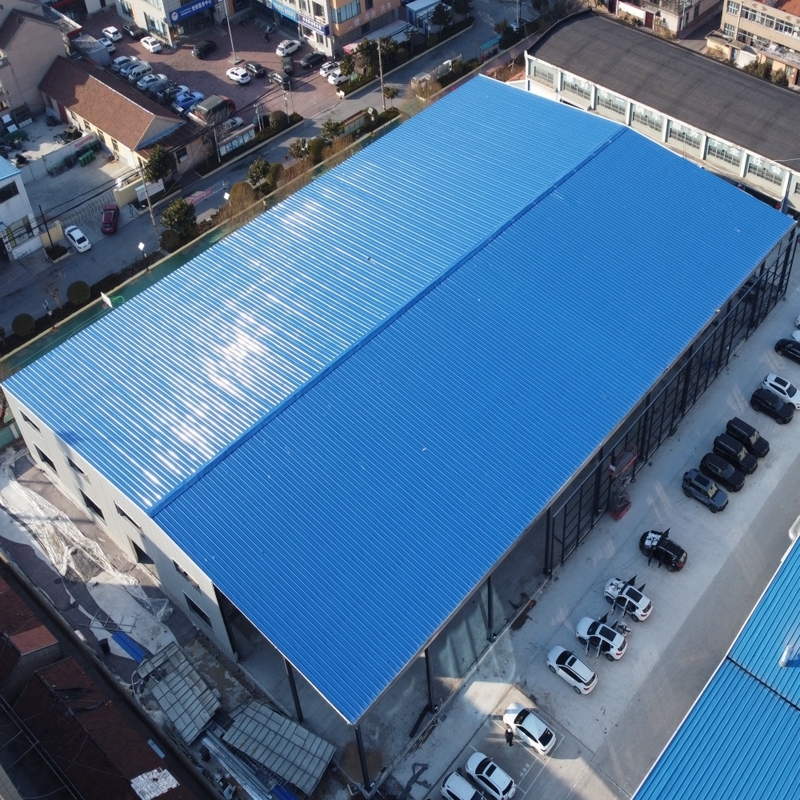

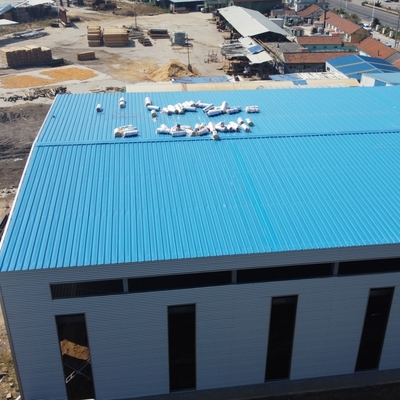

This industrial prefabricated steel framing warehouse features a total floor area of 7,200 square meters. Designed as a portal frame steel structure building with double span and double ridge configuration, it provides expansive interior space and simplified construction.
Design Capabilities
We specialize in custom design and fabrication of steel structure components for both light and heavy steel buildings, including warehouses, workshops, storage facilities, hangars, agricultural buildings, commercial structures, and industrial plants.
Project Specifications
Structure Type Portal frame, two ridges, two spans
Dimensions 120m (Length) × 60m (Width)
Eave Height 9m
Roof Slope 20%
Gable Wall Column Spacing 7.5m
Roof Material 0.5mm thick steel galvanized board
Wall Composition 0.5mm thick steel galvanized board + 3m block wall
Door Type Sliding door
Window Type Ribbon Skylight
Floor Elevation 300mm height difference between indoor and outdoor
Construction Materials
Item Specification
Main Pillar & Beams Q345B
Roof Purlins C200*70*20*2.5 Galvanize
Tie Bar Φ114*4
Pillar Supporters Φ20
Tie rod Φ12, Φ32*2.5
Kneebracing L50*4
Foundation bolt M24
General Bolts C Grade
Bolt screw Φ19
High Strengthened Bolts 10.9 Grade
Roof Panel 0.5mm Galvanized Steel Plate
Ribbon skylight 1.2mm FRP
Floor Steel deck 1.00 mm steel plate
Doors Sliding door
Windows Steel windows
Gutters 3mm thick galvanized steel
Edge and corner wrapping 0.5mm Galvanized Steel Plate
Down pipe Φ140PVC
Production Capabilities
Our 35,000㎡ fabrication facility includes 20,000㎡ of workshop space equipped with:
  • Three light/heavy H steel production lines
  • BOX production lines
  • C/Z purlin production lines
  • Advanced profiling steel sheet machines
  • Plasma cutting equipment
Prefabricated Steel Frame Warehouse Building Q235B Q355B Material 0
Installation Process
  1. Provision of detailed shop drawings prior to installation
  2. On-site engineering guidance during construction
Prefabricated Steel Frame Warehouse Building Q235B Q355B Material 1
Project Inquiry Form
Please provide the following details for a customized quotation:
1. Location (country, area) _____
2. Size (length × width × height) _____mm × _____mm × _____mm
3. Wind load (max. wind speed) _____kn/m², _____km/h, _____m/s
4. Snow load (max. snow height) _____kn/m², _____mm
5. Anti-earthquake requirements _____level
6. Brick wall requirements If yes: 1.2m high or 1.5m high
7. Thermal insulation requirements EPS, fiberglass wool, rockwool, or PU sandwich panels
8. Door specifications _____units, _____(width)mm × _____(height)mm
9. Window specifications _____units, _____(width)mm × _____(height)mm
10. Crane requirements If yes: _____units, max. lifting weight____tons; max. lifting height _____m
