Product Details:
|
| Application: | Multi Floors Steel Frame Office Buildings | Usage: | Prefab Steel Structures Buildings, Showroom Building |
|---|---|---|---|
| Raw Steel Material: | Q235B, Q355B, ASTM A36 | Surface Treatment: | Painting Or Hot-dip Galvanize |
| Service Life: | 50 Years | Fabrication: | GB Standard |
| Columns And Beam: | H Section Column&Beam | Installation: | Construction Contractor |
| Highlight: | prefab steel structures,preengineered metal buildings |
||
Multi Floors Steel Frame Office Buildings / Prefab Steel Structures Buildings

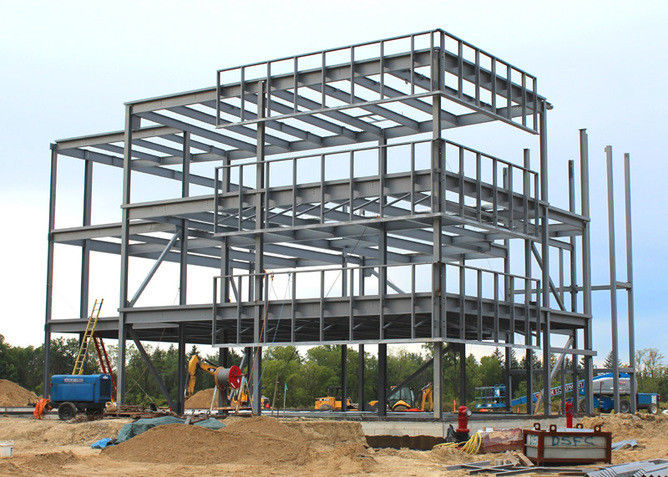

Multi Floors Steel Frame Office Buildings / Prefab Steel Structures Buildings. The major structure of this three floors is consisted of welded H-section steel beam and column. Glavanized steel floor decks is used to support floor concrete. Connection of the steel frame structure is by bolts.
The steel structure building has the advantages of wide span, high strength, light weight, low cost, temperature protection, save energy,beautiful appearance, short construction time, good effect of insulation, long using life, space-efficient, good seismic performance, flexible layout,etc.
| Steel Frame | H section steel | Q235/Q345 steel 8mm/10mm |
| Welding | Automatic submerged arc welding | |
| Rust removal | Sand blasting | |
| Surface finish | Alkyd paint or galvanized | |
| Intensive bolt | M20,Grade 10.9 | |
| Floor system | Steel floor deck | 1.2mm glavanized steel floor deck |
| Stud | Φ25mm | |
| Side forms | 1.2mm glavanized steel sheet | |
| Walls | Glass curtain wall | |
| Accessories | Glass cement, self-tapping screws, etc. | |
| Edge cover | 0.4mm steel sheet profile trimming | |
| Doors & windows | Rolling door/sliding door PVC/alu/steel/window |
We could design layout drawing,3D Tekla model, construction drawing as your request.
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
QC/Technical Support
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details.
1: We provide construction drawing before installation.
2. Then our engineer guide on site for installation
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
