Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication

Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication
Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication

Large Image :  Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication

Product Details:
Place of Origin: China
Brand Name: Ruly Stel
Certification: SGS, BV,ISO
Model Number: Ruly0011
Payment & Shipping Terms:
Minimum Order Quantity: 30 Ton
Price: USD900-USD1500 Per Ton
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 2000 Ton Per Month

Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication

Description
Application: Steel Support Beam, Structural Steel Fabrication Usage: Structural Steel Beams, H Beam, Welded Beam
Raw Steel Material: Q235B, Q355B, ASTM A36 Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Process Criterion: AWS D1.1, GB Installation: Engineer Guidance On Site
High Light:

steel box beam

,

h shape steel beam

Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication

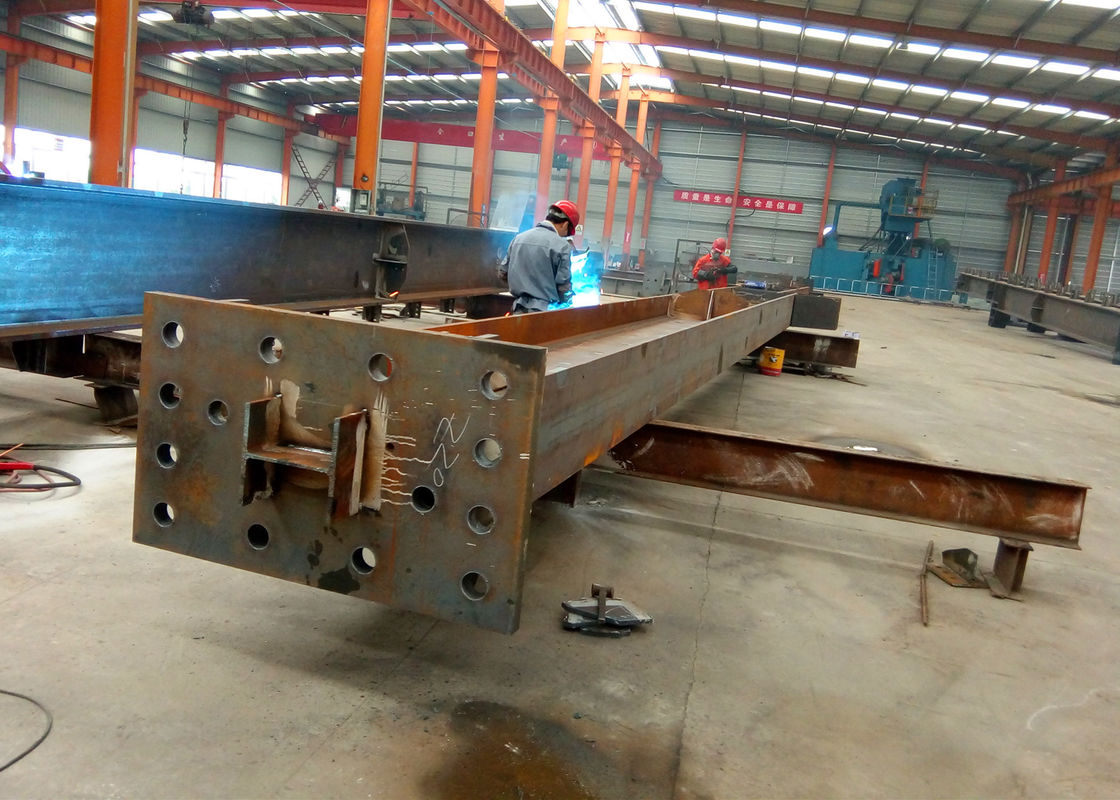

Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication. We have three H-Section steel production lines, equipped the flame cutting machine, H-Section steel assembly machine, gantry welding machine and shot-blasting machine, paint spray booth. We also put apart the space for the fabrication of heavy-duty and large structure steel components in our workshop. The steel structure has high strength. Compared with the concrete structure, the steel structure beam and the column cross-sectional area are small, which can increase the effective use area. Generally, the cross-sectional area of the high-rise steel structure column accounts for about 3% of the building area, and the cross-sectional area of the high-rise concrete structure accounts for 7%-9% of the building area.
Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication 0


Structural steel fabrication procedure:


Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication 1


Specification:



Products NameSteel Support Beam Prefab Structural Steel Beams And Columns Fabrication
GradeQ235B,SS400,Q345B,S235JR,S275JR,ASTM-A36
Size100x100mm-900x300mm
Thickness8mm-100mm
Length3-20meters
ShapH-shaped or H-channel
Delivery Time7-15 Days if in stock size, or it will be 20-40 for customized
Payment TermL/C or T/T
PackageBy bundle or as customer's requirement
ApplicationEngineering or project, plant and equipment, mechanical equipment, bridge, etc
SurfaceBlack, coating, galavnized
MOQ30Ton



 Quality control:


QC/Technical Support
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details.

Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication 2

What service we could do for you:


1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication 3


What kind of project we engage in:


1. Light gauge prefabricated steel warehouse, workshop, shed, storage
2.  Heavy industrial steel warehouse, workshop
3.  Steel structure warehouse, workshop with crane
4.  Truss roof steel warehouse, workshop
5.  Steel frame structure cold storage
6.  Prefab steel house, villa, resident building, high-rise building
7.  Car parking, garage
8.  Structural steel fabrication for heavy industrial field


Advantage and feature of steel frame structure building:


1.  Economical and practical
2.  Faster of construction speed
3.  High structural stability
4.  Lighter of total weight
5.  Lower cost and maintenance
6.  Higher earthquake resistance performance
7.  Long using time up to 50 years
8.  Good thermal insulation function
9.  Prefabricated in factory of the steel components and customized design
10.  Environmental friendly
