Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam

Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam
Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam

Large Image :  Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam

Product Details:
Place of Origin: China
Brand Name: Ruly Stel
Certification: SGS, BV,ISO
Model Number: Ruly0011
Payment & Shipping Terms:
Minimum Order Quantity: 30 Ton
Price: USD900-USD1500 Per Ton
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 2000 Ton Per Month

Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam

Description
Application: Steel Support Beam, Structural Steel Fabrication Usage: Structural Steel Beams, H Beam, Welded Beam
Raw Steel Material: Q235B, Q355B, ASTM A36 Surface Treatment: Painting Or Hot-dip Galvanize
Shot Blasting Level: Sa 2.5 Service Life: 50 Years
Process Criterion: AWS D1.1, GB Installation: Engineer Guidance On Site
Highlight:

steel box beam

,

h shape steel beam

Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication
Product Attributes
Attribute Value
Application Steel Support Beam, Structural Steel Fabrication
Usage Structural Steel Beams, H Beam, Welded Beam
Raw steel material Q235B, Q355B, ASTM A36
Surface treatment Painting or Hot-dip Galvanize
Shot blasting level Sa 2.5
Service life 50 Years
Process criterion AWS D1.1, GB
Installation Engineer guidance on site
Product Description

We specialize in Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication with three dedicated H-Section steel production lines. Our facility is equipped with advanced machinery including flame cutting machines, H-Section steel assembly machines, gantry welding machines, shot-blasting machines, and paint spray booths. We also have dedicated space for fabricating heavy-duty and large structural steel components.

Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam 0

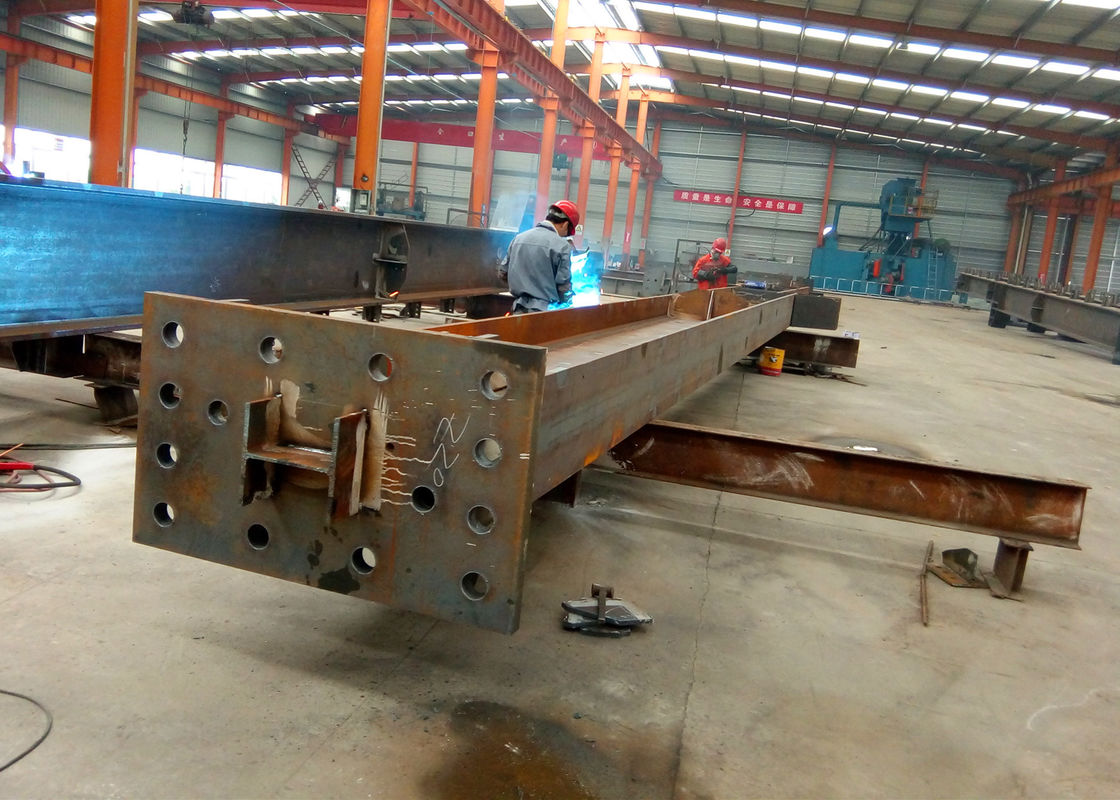

Structural Steel Fabrication Procedure
Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam 1
Specifications
Products Name Steel Support Beam Prefab Structural Steel Beams And Columns Fabrication
Grade Q235B, SS400, Q345B, S235JR, S275JR, ASTM-A36
Size 100x100mm-900x300mm
Thickness 8mm-100mm
Length 3-20meters
Shape H-shaped or H-channel
Delivery Time 7-15 Days if in stock size, or 20-40 for customized
Payment Term L/C or T/T
Package By bundle or as customer's requirement
Application Engineering or project, plant and equipment, mechanical equipment, bridge, etc
Surface Black, coating, galvanized
MOQ 30Ton
Quality Control
  • QC/Technical Support
  • Raw material quality control
  • Thickness tolerance <0.25mm
  • Yield and tension strength testing in-house
  • Third party inspection certificate
  • Supply traceable mill certificate
  • Structural steel fabrication quality control
  • 100% testing dimension tolerance <1mm
  • 20% sample welding line ultrasonic testing, no fault, full penetration
  • 20% magnetic powder testing, no bubble, no defect, Smooth and Full
  • Supply third-party inspection assistance
  • Shot blasting and painting quality control
  • Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
  • Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
  • Pre-assembly testing the connection details
Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam 2
Our Services
  • Structural steel fabrication, painting, galvanizing, pre-assembly
  • Designing, fabrication and installation for Prefabricated steel structure building
  • Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
  • Engineering consulting service
Prefab Structural Steel Beams Q235B Q355B ASTM A36 H Beam 3
Project Types We Engage In
  • Light gauge prefabricated steel warehouse, workshop, shed, storage
  • Heavy industrial steel warehouse, workshop
  • Steel structure warehouse, workshop with crane
  • Truss roof steel warehouse, workshop
  • Steel frame structure cold storage
  • Prefab steel house, villa, resident building, high-rise building
  • Car parking, garage
  • Structural steel fabrication for heavy industrial field
Advantages of Steel Frame Structure Building
  • Economical and practical
  • Faster construction speed
  • High structural stability
  • Lighter total weight
  • Lower cost and maintenance
  • Higher earthquake resistance performance
  • Long service life up to 50 years
  • Good thermal insulation function
  • Prefabricated in factory of the steel components and customized design
  • Environmental friendly
