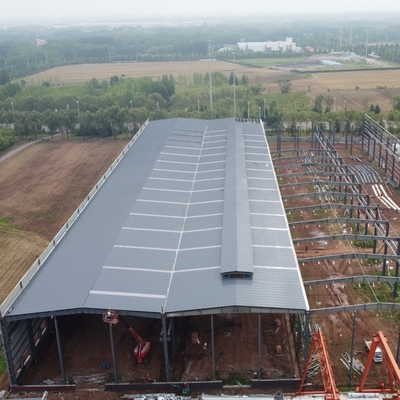

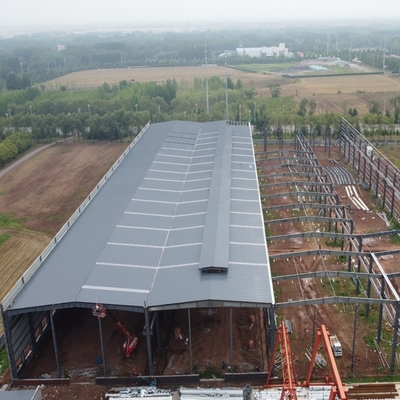

Q355B Steel Structure Workshop Prefabricated Building Frame

Q355B Steel Structure Workshop Prefabricated Building Frame
Q355B Steel Structure Workshop Prefabricated Building Frame
Q355B Steel Structure Workshop Prefabricated Building Frame Q355B Steel Structure Workshop Prefabricated Building Frame Q355B Steel Structure Workshop Prefabricated Building Frame Q355B Steel Structure Workshop Prefabricated Building Frame Q355B Steel Structure Workshop Prefabricated Building Frame Q355B Steel Structure Workshop Prefabricated Building Frame Q355B Steel Structure Workshop Prefabricated Building Frame

Large Image :  Q355B Steel Structure Workshop Prefabricated Building Frame

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV，ISO
Model Number: Ruly0298
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Q355B Steel Structure Workshop Prefabricated Building Frame

Description
Application: Prefabricated Workshop Buildings Steel Frame Structure Modern Steel Structures Usage: Steel Structure Workshop, Metal Warehouse, Factory Buildings, Garment Factory, Clothes Plant
Type: Steel Structure Workshop Working Scope: Design,Fabrication, Installation
Raw Steel Material: Q235B, Q355B Surface Treatment: Painting Or Hot-dip Galvanize
Wall And Roof: Glass Wool Service Life: 50 Years
Highlight:

Q355B Prefabricated Workshop Buildings

,

Q235B Prefabricated Workshop Buildings

,

Q355B Modern Steel Structures

Q355B Prefabricated Workshop Buildings Steel Frame Structure
Product Attributes
Attribute Value
Application Prefabricated Workshop Buildings Steel Frame Structure Modern Steel Structures
Usage Steel Structure Workshop, Metal Warehouse, Factory Buildings, Garment Factory, Clothes Plant
Type Steel Structure Workshop
Working scope Design, Fabrication, Installation
Raw steel material Q235B, Q355B
Surface treatment Painting or Hot-dip Galvanize
Wall and Roof Glass wool
Service life 50 Years
Product Description

Prefabricated Workshop Buildings Steel Frame Structure modern steel structures are designed for automobile spare parts storage and similar industrial applications. The H steel truss beam roof system provides superior strength and efficiency compared to solid web steel beams.

Main Components and Technical Specifications
Main Steel Frame System
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel PU sandwich panel
Wall panel PU sandwich panel
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe
Steel Building Characteristics
  • Light-weight construction with superior resistance to earthquakes and strong winds
  • Sustainable design with low lifecycle costs due to minimal maintenance requirements
  • Rapid construction enabled by modular prefabrication of building elements
  • Environmentally friendly with reusable steel members and efficient material usage
  • Functional flexibility with relocatable walls and optimized space utilization
Installation Options

We provide detailed shop drawings prior to installation. For additional support, we offer:

  • On-site installation training at our factory
  • Assembly of sample steel structure buildings when required
Q355B Steel Structure Workshop Prefabricated Building Frame 0
Packing and Transportation

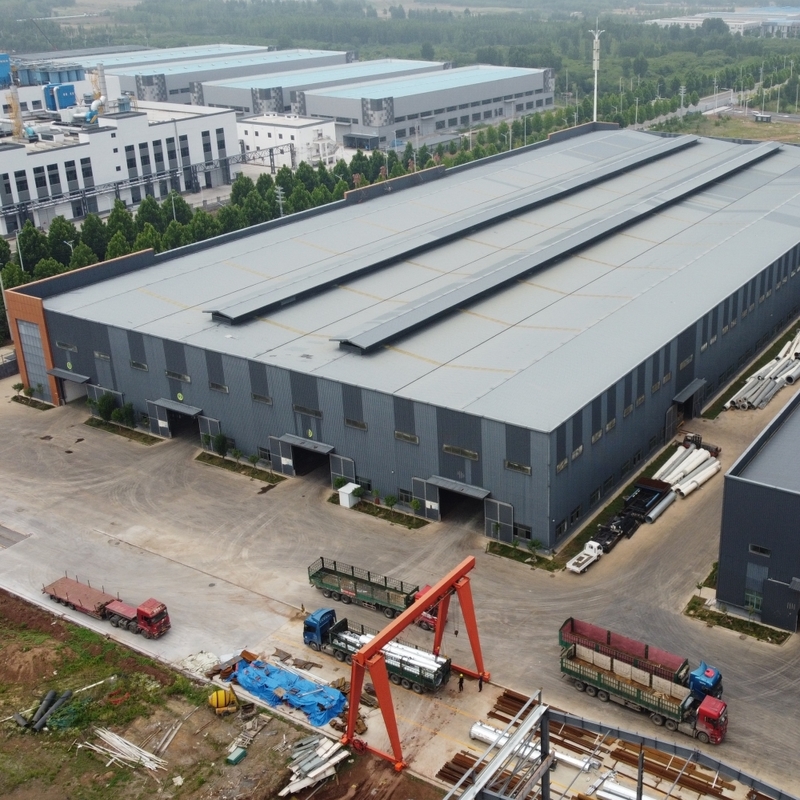

All structural components, panels, bolts, and accessories are packed in standard ocean transportation containers (40'HQ). Our skilled workers use cranes and forklifts to load products at our factory, ensuring damage-free transportation.

Q355B Steel Structure Workshop Prefabricated Building Frame 1
Our Capabilities

We specialize in manufacturing both light and heavy steel structure buildings including:

  • Warehouses and workshops
  • Storage facilities and construction materials
  • High-rise steel office buildings
  • Factories and plants
  • Exhibition halls and steel tile structures
Quotation Requirements

Please provide the following information for an accurate quote:

# Question Your Input
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake requirements _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation requirements EPS, fiberglass wool, rockwool, PU sandwich panels or metal steel sheets
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
