Q235B Prefabricated Steel Structure Workshop for Industrial Buildings

Large Image : Q235B Prefabricated Steel Structure Workshop for Industrial Buildings

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0295

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Q235B Prefabricated Steel Structure Workshop for Industrial Buildings

Description

Application:	Pre Engineering Industrial Steel Buildings	Type:	Industrial Steel Buildings
Raw Steel Material:	Q235B, Q355B	Surface Treatment:	Painting Or Hot-dip Galvanize
Working Scope:	Design,Fabrication, Installation	Beam And Column:	H-section Steel, Latticed Steel, Box Steel
Wall And Roof:	Composited Concrete Panel	Service Life:	50 Years
Highlight:	Q235B Industrial Steel Buildings , Shed Industrial Steel Buildings , Q235B Prefabricated Steel Structure Workshop

Q235B Industrial Steel Buildings Shed Prefabricated Steel Structure Workshop

Product Specifications

Application	Pre Engineering Industrial Steel Buildings
Type	Industrial Steel Buildings
Raw steel material	Q235B, Q355B
Surface treatment	Painting or Hot-dip Galvanize
Working scope	Design, Fabrication, Installation
Beam and Column	H-section steel, latticed steel, box steel
Wall and Roof	Composited Concrete Panel
Service life	50 Years

Product Description

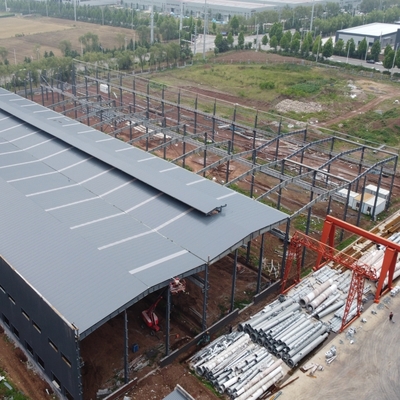

This heavy industrial steel structure workshop building is designed for cable production with frame structure capable of supporting large production machinery and overhead cranes up to 300 tons capacity. The building reaches 35.5m in height with approximately 3500 tons of steel used in construction.

Main Steel Frame System

Main structure	H section steel Q355, alkyd painting, two primary painting, two finish painting
Roof purlin	XZ1606020*2.5, galvanized
Wall purlin	XZ1606020*2.5, galvanized
Intensive bolt	Grade 10.9
Turn buckle bolt	M20+2, steel Q235, processing
Anchor bolt	M24, steel Q235, processing

Bracing System

Cross brace	Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace	L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing	Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar	Φ127*3 steel pipe Q235, process and painted (alkyd painting)

Wall & Roof System

Roof panel	Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel	Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover	0.5mm color plate, angle Alu.
Unpowered ventilator	Diameter Φ600, stainless steel

3D Model

Why Choose Our Steel Structures

Quality and Service

"Quality firstly, Customer firstly" is our company principle. We maintain sound reputation through quality products and excellent service.

Low cost: Professional design reduces construction time and material usage
Environmental protection: Specialized cladding materials provide excellent acoustic and insulation performance with recyclable materials
Comfortable and aesthetic: Larger building bays offer more usable space and better views

Our Capabilities

We produce both light and heavy steel structure buildings including warehouses, workshops, storage facilities, high-rise steel office buildings, factories, plants, and exhibition halls.

Quotation Information Required

1	Location (where will be built?)	_____country, area
2	Size: lengthwidthheight	_____mm_____mm_____mm
3	Wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4	Snow load (max. snow height)	_____kn/m2, _____mm
5	Anti-earthquake	_____level
