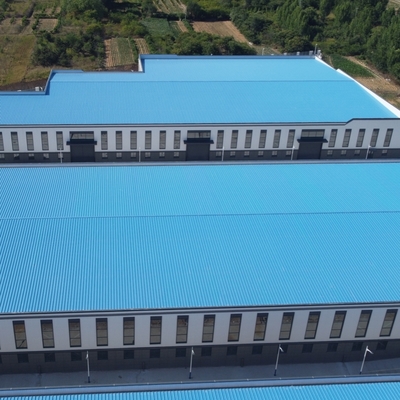

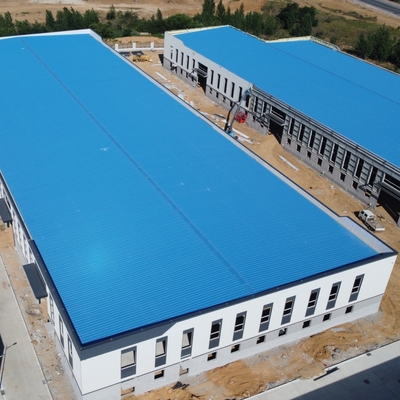

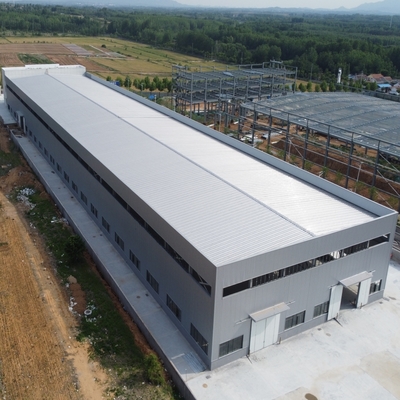

Prefabricated Steel Workshop with Crane H-Section Frame

Prefabricated Steel Workshop with Crane H-Section Frame
Prefabricated Steel Workshop with Crane H-Section Frame
Prefabricated Steel Workshop with Crane H-Section Frame Prefabricated Steel Workshop with Crane H-Section Frame Prefabricated Steel Workshop with Crane H-Section Frame Prefabricated Steel Workshop with Crane H-Section Frame Prefabricated Steel Workshop with Crane H-Section Frame Prefabricated Steel Workshop with Crane H-Section Frame Prefabricated Steel Workshop with Crane H-Section Frame

Large Image :  Prefabricated Steel Workshop with Crane H-Section Frame

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV,ISO
Model Number: Ruly0321
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square meters
Price: USD25-USD95 Per Square meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 2000 Ton Per Month
Contact Now

Prefabricated Steel Workshop with Crane H-Section Frame

Description
Features: Steel Workshop With Crane Appilcation: Prefabricated Steel Workshop
Raw Steel Material: Q235B, Q355B, ASTM A36, Columns And Beam: H Section Column&Beam, Latticed Column
Surface Treatment: Painting Or Hot-dip Galvanize Wall And Roof: Glass Wool Sandwich Panel
Service: Design,Fabrication, Installation Service Life: 50 Years
Highlight:

Prefabricated Steel Structure Workshop

,

Steel Structure Workshop With Crane

,

Steel Building FrameWith Crane

Prefabricated Steel Structure Workshop With Crane Steel Building Frame
Product Specifications
Attribute Value
Application Prefabricated Steel Workshop
Features Steel Workshop With Crane
Raw steel material Q235B, Q355B, ASTM A36
Columns and Beam H Section Column & Beam, Latticed column
Surface treatment Painting or Hot-dip Galvanize
Wall and Roof Glass wool sandwich panel
Service Design, Fabrication, Installation
Service life 50 Years
Product Description
Our prefabricated steel structure workshop with crane consists of lightweight steel beams and columns, with welded steel components connected by bolts. This steel structure warehouse is designed for storing metal raw materials and includes a 5-ton electric single girder crane on the crane beam. The design optimizes working space by eliminating middle steel columns, resulting in an efficient steel quantity of just 35 kg per square meter.
Project Specifications
Name Lightweight Prefabricated Steel Warehouse With Overhead Crane
Structure Type Portal frame, single ridge, single span
Length 90m
Width 25m
Eave Height 8m
Span Single span
Steel structure quantity 75 Ton
Column & Beam H-section steel, latticed column, honeycomb beam, truss beam
Roof & Wall sandwich panel 0.5mm steel cladding sheet
Door Sliding door
Window Glass window
Crane Installation Requirements
  • The hoisting requirements of unit components must be met, with the inlet valve centerline within the crane auxiliary hook's working range
  • Minimum 200-300mm clearance between crane top and building ceiling/roof truss
  • Required space for disassembling crane components must be provided on the roof
  • Proper clearance between crane end and wall for maintenance and operation
  • Crane beam top surface must accommodate operator traffic with proper access
  • All safety distances must comply with SDJ 173-85 regulations
Steel Design & Detailing
Our engineering team can design according to your specifications or calculate steel quantities from your drawings. With dedicated design and R&D departments, we've established a comprehensive system for structural engineering that ensures reliability, economy, and architectural aesthetics. We carefully select and combine traditional and new materials for optimal performance.
Prefabricated Steel Workshop with Crane H-Section Frame 0
Manufacturing Capabilities
As a direct manufacturer, we welcome factory visits to demonstrate our professional quality control processes and competitive pricing. Our skilled fabrication team uses advanced equipment with customized production schedules for each project.
Prefabricated Steel Workshop with Crane H-Section Frame 1
Our Advantages
  • Professional design team for custom solutions
  • Skilled fabrication with advanced equipment
  • One-stop service for complete project solutions
  • Quality control team ensuring product standards
  • Comprehensive after-sales service and maintenance support
Quotation Requirements
Please provide the following information for an accurate quote:
1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 Wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 Snow load (max. snow height) _____kn/m2, _____mm
5 Anti-earthquake _____level
6 Brickwall needed or not If yes, 1.2m high or 1.5m high
7 Thermal insulation EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets
8 Door quantity & size _____units, _____(width)mm*_____(height)mm
9 Window quantity & size _____units, _____(width)mm*_____(height)mm
10 Crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
