Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan

Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan
Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan
Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan

Large Image :  Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0297
Payment & Shipping Terms:
Minimum Order Quantity: 300 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: Steel frame pallets and loaded into 40’HQ
Delivery Time: 30 Days
Payment Terms: L/C,T/T,Western Union
Supply Ability: 20000 Square Meter Per Month
Contact Now

Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan

Description
Application: Steel Framing Prefabricated Factory , Steel Structure Workshop Type: Steel Structure Workshop
Raw Steel Material: Q235B, Q355B, ASTM A36 Service Life: 50 Years
Wall And Roof: Rock Wool Surface Treatment: Painting
Working Scope: Design,Fabrication, Installation Columns & Beams: H-section Steel
Standard: AISC, ASTM, BS, DIN, GB, JIS Shot Blasting Level: Sa 2.5
Highlight:

Shed Steel Structure Workshop

,

Light Gauge Steel Structure Workshop

,

Light Gauge Prefabricated Factory

Light Gauge Shed Steel Structure Workshop Steel Framing Prefabricated Factory
Product Specifications
Attribute Value
Application Steel Framing Prefabricated Factory, Steel Structure Workshop
Type Steel Structure Workshop
Raw steel material Q235B, Q355B, ASTM A36
Service life 50 Years
Wall and Roof Rock wool
Surface treatment Painting
Working scope Design, Fabrication, Installation
Columns & Beams H-section steel
Standard AISC, ASTM, BS, DIN, GB, JIS
Shot blasting level Sa 2.5
Product Description

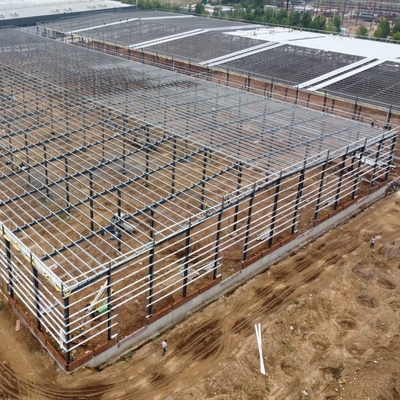

This prefabricated workshop building features welded H-section steel columns and beams connected by high strength bolts to form the main frame structure. The steel structure is made from an organized combination of structural steel members designed to carry loads while providing adequate rigidity.
Material Specifications
Component Specification
Steel Frame H section steel | Q235/Q355 steel plate thickness: 8-30mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20, Grade 10.9
Supporting System Angle brace: L50x4, Steel Q235, processed and painted
Roof Components Purlin: C160*60*2.5, Steel Q235, galvanized and painted
Wall Components Purlin: C160*60*2.5, Steel Q235, painted
Key Advantages
  • Excellent heat insulation, waterproofing, and fireproof performance
  • Lightweight design for easier transportation and handling
  • Customizable designs available to meet specific requirements
  • Manufactured under strict quality control standards
  • Easy assembly with common tools (installation guide provided)
  • Durable construction with 50+ year lifespan
  • Attractive appearance with low maintenance requirements
Service Scope
  • Structural steel fabrication, painting, galvanizing, and pre-assembly
  • Complete design, fabrication, and installation services
  • Engineering drawing development based on client specifications
  • Comprehensive engineering consulting services
Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan 0
Packaging & Transportation
All structural components, panels, bolts, and accessories are packed in standard ocean transportation packaging and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to ensure safe loading and prevent damage during transit.
Prefabricated Steel Structure Workshop with H-Section Beams 50-Year Lifespan 1
Frequently Asked Questions
How is product quality guaranteed?
Our dedicated QC team performs quality inspections on all orders before shipment.
What is the typical installation time?
Installation typically takes about 1 month, depending on building size.
Is the workshop insulated?
Yes, insulated sandwich panels are available in various thicknesses.
Is the building rainproof?
Yes, with proper roof joints and a complete drainage system.
Are all components included?
Yes, we provide a complete turnkey solution including doors, windows, and all structural elements.
