PEB Steel Buildings Clean Span Frame Warehouse 50-Year Life

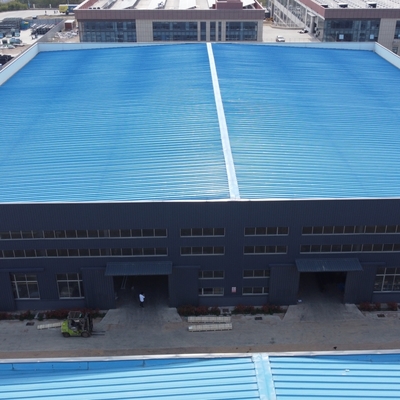

Large Image : PEB Steel Buildings Clean Span Frame Warehouse 50-Year Life

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0070

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

PEB Steel Buildings Clean Span Frame Warehouse 50-Year Life

Description

Features:	Clean Span Steel Frame Structure Warehouse	Application:	Pre Engineered Steel Buildings
Type:	PEB Steel Buildings	Working Scope:	Design,Fabrication, Installation
Raw Steel Material:	Q235B, Q355B	Surface Treatment:	Painting Or Hot-dip Galvanize
Service Life:	50 Years	Wall And Roof:	Glass Wool
Highlight:	pre engineered steel buildings , pre engineered building structure

Clean Span Steel Frame Warehouses PEB Steel Buildings

Product Specifications

Application	Pre Engineered Steel Buildings
Features	Clean Span Steel Frame Structure Warehouse
Type	PEB Steel Buildings
Working scope	Design, Fabrication, Installation
Raw steel material	Q235B, Q355B
Surface treatment	Painting or Hot-dip Galvanize
Service life	50 Years
Wall and Roof	Glass wool

Product Overview

Pre Engineered Steel Buildings with clean span steel frame structure provide customizable industrial solutions. The portal frame steel structure warehouse features a load-bearing design with two lines of columns and no middle column, creating an efficient, open space system.

Key Structural Advantages:

Optimized support system for enhanced structural rigidity
Effective resistance to horizontal forces (wind, crane loads, temperature effects)
Earthquake-resistant design
Prevention of rod vibration and lateral instability
Stable installation characteristics

Standard Project Specifications

Structure Type	Portal frame, single ridge, two slope
Length	120m
Width	100m
Eave Height	11m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof	75 mm thick Rock wool sandwich panel
Wall	75 mm thick Rock wool sandwich panel
Door	Sliding door
Window	Ribbon Skylight
Height difference between indoor and outdoor	300mm

Technical Parameters

Component	Specification
Material	Carbon structural steel (Q235B, Q345B or custom)
Production Lead Time	Typically 45 days after down payment (varies by quantity)
Quality Certification	Factory quality certificate, third-party available upon request
Main Frame	H Steel beam, Q235/Q345 steel H beam and columns, painted or galvanized
Secondary Frame	Galvanized C or Z purlin, steel bracing, tie bar, knee brace, flashing
Surface Treatment	Two layers of rust-proof painting or Hot Dip Galvanized

Production Capabilities

Our 35,000㎡ steel structure fabrication facility includes 20,000㎡ of workshop space equipped with:

Three light/heavy H steel production lines
BOX production lines
C/Z purlin production lines
Advanced profiling steel sheet machines
Plasma cutting equipment

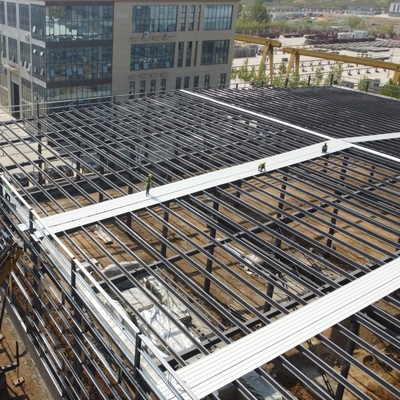

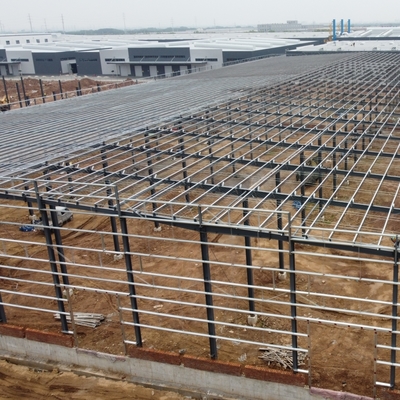

Installation Process

Packaging & Shipping

All structural components, panels, bolts and accessories are packed for secure ocean transportation in 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.

Request a Custom Quote

Please provide the following information for an accurate quotation:

1. Location (where will be built?)	_____country, area
2. Size: lengthwidthheight	_____mm_____mm_____mm
3. Wind load (max. wind speed)	_____kn/m2, _____km/h, _____m/s
4. Snow load (max. snow height)	_____kn/m2, _____mm
5. Anti-earthquake requirements	_____level
6. Brick wall needed?	If yes, 1.2m high or 1.5m high
7. Thermal insulation requirements	EPS, fiberglass wool, rockwool, PU sandwich panels or metal sheets
8. Door quantity & size	_____units, _____(width)mm*_____(height)mm
9. Window quantity & size	_____units, _____(width)mm*_____(height)mm
10. Crane requirements	If yes, _____units, max. lifting weight____tons; max. lifting height _____m
