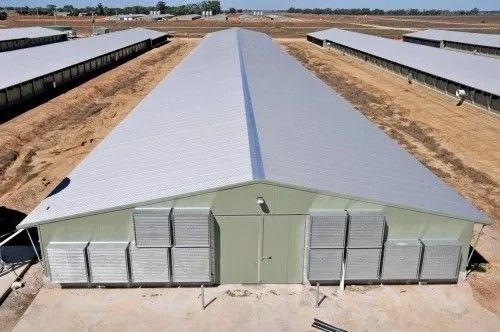

Prefabricated Metal Steel Poultry House Industry Steel Structure

Prefabricated Metal Steel Poultry House Industry Steel Structure
Prefabricated Metal Steel Poultry House Industry Steel Structure Prefabricated Metal Steel Poultry House Industry Steel Structure Prefabricated Metal Steel Poultry House Industry Steel Structure Prefabricated Metal Steel Poultry House Industry Steel Structure Prefabricated Metal Steel Poultry House Industry Steel Structure Prefabricated Metal Steel Poultry House Industry Steel Structure

Large Image :  Prefabricated Metal Steel Poultry House Industry Steel Structure

Product Details:
Place of Origin: Qingdao China
Brand Name: Ruly
Certification: SGS, ,ISO9001, BV, CE, ASTM
Model Number: RulyS009
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD53 Per SQM
Packaging Details: 20GP, 40HC,40OT Shipping container standard package
Delivery Time: 25-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20000 Square Meter Per Month

Prefabricated Metal Steel Poultry House Industry Steel Structure

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Carbon Structural Steel: Q355
Application: Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway And Floor, Steel Structure Bridge Keyword: Prefabricated Steel Structure Poultry House Warehouse/Workshop
Size: Customized Service Life: More Than 50 Years
Installation: Engineer Guidance On Site Drawing: CAD, Tekla, 3D Model, Pkpm, Bim
Usage: Steel Structure Construction Surface Treatment: Painting Or Hot-DIP Galvanized
Transport Package: Standard Export Package Or Customers Requirement Origin: China
Production Capacity: 50000 Square Meter Per Month Connection Form: Bolt Connection
Type Of Steel For Building Structure: H-Section Steel Residential Wall Structure: Wall Support
Product Name: High Quality Prefab Steel Structure Warehouse Building Cost Prefabricated Workshop Metal Construction For Export Columns & Beams: H-Section Steel
Raw Steel Material: Q235B, Q355b, ASTM A36 Parapet Wall: As Requested
Certification: CE, Aisc, SGS, BV, ISO, GB Residential Wall Structure Building Structure: Steel Cladding Sheet/Sandwich Panel
Wall And Roof: Steel Cladding Sheet, Sandwich Panel Specification: Prefab Steel Buildings
HS Code: 9406900090
Highlight:

Industry Steel Structure Poultry House

,

Metal Steel Poultry House

,

Prefabricated Metal Steel Poultry House

Low Cost Prefab Steel Structure Buildings Container House Metal Prefabricated Poultry House Industry Construction

Project description:

One of the main advantages of steel structure chicken houses is their durability. Steel is a highly resilient material that can withstand harsh weather conditions and protect the chickens from external threats such as predators. This makes it a reliable choice for poultry farmers who want to ensure the safety and well-being of their chickens.

In terms of construction, steel structure chicken houses are also highly efficient. The pre-made steel components are manufactured off-site and then assembled on the farm, reducing the time and labor required for construction. This also results in lower costs, making it a cost-effective option for farmers.

Another benefit of steel structure chicken houses is their design flexibility. The steel components can be easily customized to fit the specific needs of the farmer, whether it's for a small backyard chicken coop or a large commercial farm. This flexibility also allows for future expansions or modifications to the house without major disruptions.

One of the key advantages of steel structure chicken houses is their low maintenance. The steel components are resistant to rust and corrosion, reducing the need for frequent repairs or replacements. This saves both time and money for farmers, allowing them to focus on their poultry business.

Additionally, steel structure chicken houses are environmentally friendly. The manufacturing process produces very little waste, and the steel components can be recycled at the end of the house's lifespan. This makes them a sustainable and eco-friendly option for poultry farmers looking to reduce their carbon footprint.

In conclusion, steel structure chicken houses offer numerous benefits that make them an ideal choice for poultry farmers. From durability and efficiency to design flexibility and low maintenance, these houses provide a safe and comfortable environment for raising chickens. Consider investing in a steel structure chicken house for your poultry farm and experience the many advantages it has to offer.

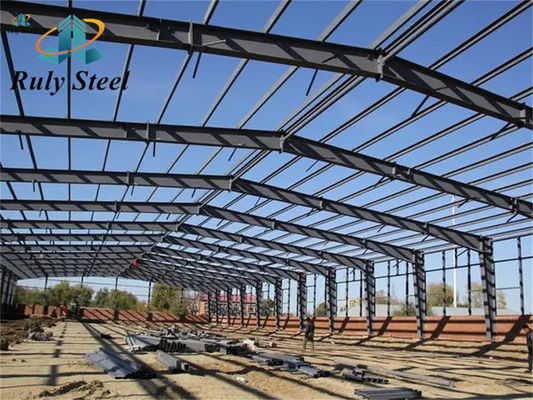

1. Main steel frame structure

                                  Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 0





2. Laying purlin

                                  Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 1



3. H section steel column



                                   Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 2

4. End wall

                                   Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 3

Welded steel components in our factory:

Welding

                                   Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 4

Packing

                                   Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 5

Main parts of the steel structures and technical parameters:



Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe
Installation:

1: We provide construction drawing before installation.

2. Then our engineer guide on site for installation

                                    Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 6



Why did you choose us?



Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.

  1. Low cost---Professional design, less construction time; saving raw materials.
  2. Environmental protection---specialized cladding materials guarantee excellent acoustic and insulation performance; no pollution ;Raw material can be recycled

Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company, located in Qingdao, China, which integrates steel structure design, research and development, manufacturing and installation. The project types include prefabricated steel workshop, warehouse, logistics park and other light steel structure of the civil building system, high-rise residential buildings, exhibition center, stadium, airport station and bridge, Power plant, chemical plant, oil and gas, mining,etc.
Our company's steel structure processing plant now covers an area of 35,000 square meters, plant20,000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 1500 Tons. Our steel structure componetns include light/heavy H steel ,BOX steel,Cross shaped section steel, large diameter submerged arc straight-weld pipe,steel model structure, C/Z purlin and machining fitting components . There are three subordinate steel structure companies, which have passed and strictly implemented ISO9001:2008 quality management system, ISO14001:2004 environmental system, GB/T28001:2001 occupational health system, and obtained ASTM certification in the United States, and international SGS product certification. Obtained the right of export, design, installation and consultation from the ministry of foreign trade and economic cooperation.



RFQ:

1. Are you a manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.

2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.

3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.

4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.

5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.

6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.

7. How can you get a quotation for your projects?
You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
