Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage

Certification
China Qingdao Ruly Steel Engineering Co.,Ltd certification
China Qingdao Ruly Steel Engineering Co.,Ltd certification
Customer Reviews
To be honest, i am not so familiar with steel structure at beginning, but they give me a perfect proposal to help me complete my project, good job, Ruly steel

—— Mike Guioguio

The delivery time is quick, and very important: the products always sent match the order. I trust them because i have never been disappointed with them.

—— Mae Cena

This mutual cooperation last for about 4 years,and must admit the service they provide is above expected.

—— Terry Shepley

I'm Online Chat Now

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage
Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage

Large Image :  Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage

Product Details:
Place of Origin: Qingdao,China
Brand Name: Ruly Steel
Certification: CE,AISC,SGS, BV, ISO,GB
Model Number: RULYC022
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meters
Price: USD19-USD39 Per Square Meter
Packaging Details: 40HQ/Open top container
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20,000 square meters or 1,500 tons per month

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Raw Steel Material: Q235B, Q355B, ASTM A36
Application: Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part Surface Treatment: Painting Or Hot-DIP Galvanized
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet,Sandwich Panel
Columns & Beams: H-Section Steel Shot Blasting Level: SA 2.5
Certification: CE, AISC, SGS, BV, ISO, GB Installation: Engineer Guidance On Site
Drawing: CAD, TEKLA, 3D Model, PKPM, BIM HS Code: 9406900090
Transport Package: Standard Export Package Or Customer′s Requirement Production Capacity: 30000ton/Year
Connection Form: Bolt Connection
High Light:

Prefabricated Steel Structure Building

,

Quick Assembly Steel Structure Building

,

Q355B Steel Structure Building

Q355B Prefabricated Steel Structure Building Quick-Assembly Steel Structure Warehouse For Efficient Storage Solutions

Project description:

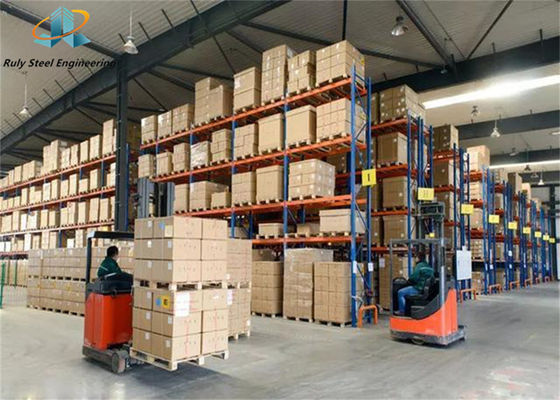

Steel structure storage warehouses have several distinguishing features:

1. Structural Strength: Steel structures offer high strength and durability. They can withstand heavy loads and resist adverse weather conditions, including wind, snow, and seismic forces. This strength allows for the construction of large, open spaces without the need for internal support columns, maximizing storage capacity.

2. Spaciousness: Steel warehouses provide ample storage space due to their clear-span design. Without the need for interior columns, the entire floor area can be utilized for storage, ensuring efficient use of available space. This feature is particularly beneficial for storing large or bulky items.

3. Flexibility: Steel structures can be easily modified and expanded to accommodate changing storage needs. Additional sections or floors can be added without compromising the structural integrity of the warehouse. This adaptability allows businesses to adjust their storage capacity as per demand.

4. Fire Resistance: Steel is non-combustible and highly resistant to fire. This characteristic enhances the safety of the warehouse, reducing the risk of damage to stored goods. Steel structures can also incorporate fire suppression systems to further enhance fire safety measures.

5. Cost-effectiveness: Steel structures offer a cost-effective solution for storage warehouses. They are relatively quick to construct, reducing labor costs. Additionally, steel is a recyclable material, making it an environmentally friendly and sustainable choice. Its durability also minimizes maintenance and repair expenses over the long term.

6. Energy Efficiency: Steel warehouses can be designed to be energy efficient. Insulation systems can be incorporated to regulate temperature inside the facility, reducing heating and cooling costs. Natural lighting and ventilation options can also be integrated, further enhancing energy efficiency.

7. Construction Time: Steel structures can be prefabricated off-site and then quickly assembled on-site, significantly reducing construction time compared to traditional building methods. This feature allows for faster project completion and earlier utilization of the warehouse for storage purposes.

Overall, steel structure storage warehouses offer strength, spaciousness, flexibility, fire resistance, cost-effectiveness, energy efficiency, and shorter construction times, making them a popular choice for businesses requiring efficient and secure storage facilities.



Items Specification
Main steel frame Colume Q235,Q355 welded H section steel
Beam Q235,Q355 welded H section steel







Secondary frame

Purlin Q235 C and Z purlin
Knee brace Q235 angle steel
Tie rod Q235 circular steel pipe
Brace A235 round bar
Vertical and horizontal support Q235 angle steel, round bar or steel pipe
Maintenance system Roof panel EPS sandwich panel/glass fiber sandwich panel/rock wool sandwich panel/Pu sandwich panel/steel sheet
Wall panel Sandwich panel/corrugated steel sheet



Accessories

Window Aluminium alloy window/PVC window/sandwich panel window
Door Sliding sandwich panel door/rolling metal door/personal door
Rainspout PVC
Live load on roof In 120kg/sqm(color steel panel surrounded)
Wind resistance grade 12 grades
Earthquake-resistance 8 grades
Structure usage Up to 50 years
Finishing options Vast array of colors and textures available
Paint options Alkyd paiting, two primary paiting, two finish paiting(Gray paint, red paint, white paint, epoxy zinc etc.) or galvanized







Company profile:



Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure design, research, fabrication and construction company, located in Qingdao, China. Our company's steel structure processing plant now covers an area of 35, 000 square meters, plant20, 000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 2000 Tons.

We could contract the projects such as prefabricated steel structure warehouse, workshop, storage sheds, garage, hangar, chicken shed, car parking, showroom, office buildings, gym, dormitory building, high rise steel residence buildings, oli&gas project, power station, infrastructure buildings, etc.

At present, Our products have been exported to Southeast Asia, South America, Middle East and Africa, Australia, etc. In order to serve better for the exported project, we get certification of AWS D1.1, CE(EN 1090-1: 2009+A1: 2011), ISO 14001, ISO9001, ISO45001, AS/NZS 1554, SGS and BV Certification.

We provide one-stop service for steel structure project, just tell us your requirement, and we will give you what you need.



Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 0



Processing and fabrication:



Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 1Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 2
Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 3Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 4

Our service:





Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 5

Our certificate:

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 6

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 7

Packing and loading:



Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 8

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 9

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 10

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40'HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.



Why us:



1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.

2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.

3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.

4. Professional QC team will guarantee that we will provide the production and service as your request.

5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 11

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 12

Q355B Prefabricated Steel Structure Building Quick Assembly Warehouse For Storage 13

How to quote:



The following questions we need to know before offering the quotation. Just feel free to fill in what you know.



1 Location (where will it be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
