Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel

Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel
Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel

Large Image :  Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel

Product Details:
Place of Origin: Qingdao China
Brand Name: Ruly
Certification: SGS, ,ISO9001, BV, CE, ASTM
Model Number: RulyS020
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD53 Per SQM
Packaging Details: 20GP, 40HC,40OT Shipping container standard package
Delivery Time: 25-30 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 50000 Square Meter Per Month

Workshop Steel Frame Structure Prefab Metal Buildings H-Section Steel

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Application: Construction
Assembly: Bolted/Welded Corrosion Resistance: Yes
Durability: Long-lasting Fire Resistance: Yes
Installation: Easy Maintenance: Low
Material: Steel Size: Customized
Strength: High Surface Treatment: Galvanized/Painted
Type: Fabrication Weather Resistance: Yes
Connection Form: Bolt Connection Type Of Steel For Building Structure: H-Section Steel
Residential Wall Structure: Wall Support Product Name: High Quality Prefab Steel Structure Warehouse Building Cost Prefabricated Workshop Metal Construction For Export
Columns & Beams: H-Section Steel Raw Steel Material: Q235B, Q355b, ASTM A36
Parapet Wall: As Requested Certification: CE, Aisc, SGS, BV, ISO, GB
Residential Wall Structure Building Structure: Steel Cladding Sheet/Sandwich Panel Wall And Roof: Steel Cladding Sheet, Sandwich Panel
Specification: Prefab Steel Buildings HS Code: 9406900090
High Light:

Metal Buildings Steel Frame Structure

,

H-Section Steel Frame Structure

,

Prefab Metal Buildings Steel Frame Structure

Manufacturer Steel Structure Frame Prefabricated Steel Buildings Portal Frame Warehouse Workshop Prefab Metal Buildings

Project description:

One of the main benefits of using metal for building construction is its strength and durability. Metal, particularly steel, is known for its high tensile strength, making it able to withstand extreme weather conditions and natural disasters. This ensures the safety and stability of the building, making it a reliable option for both commercial and residential construction.

Moreover, metal structures are highly customizable, allowing for flexibility in design and layout. This is particularly beneficial in building construction, as it allows for unique and innovative designs. With metal, it is easy to add or remove sections, making it a versatile option for different building purposes.

Additionally, metal structures are quick and easy to construct, compared to traditional construction methods. With prefabricated components, metal buildings can be erected in a shorter time, reducing labor costs and saving time. This makes it a cost-effective option for building construction.

Furthermore, metal is a sustainable material, making it an environmentally friendly choice for building construction. It is a recyclable material and has a longer lifespan compared to other building materials, reducing the need for frequent replacements and renovations. This also contributes to a smaller environmental footprint.

However, it is important to consider some challenges when using metal for building construction. One of the main challenges is corrosion, which is common in humid and tropical climates. Proper anti-corrosion coatings and maintenance must be applied to combat this.

In conclusion, metal structure buildings have numerous advantages, including strength, flexibility, cost-effectiveness, and sustainability. As the demand for innovative and efficient building solutions grows, we can expect to see an increase in the use of metal structures in various industries and sectors.

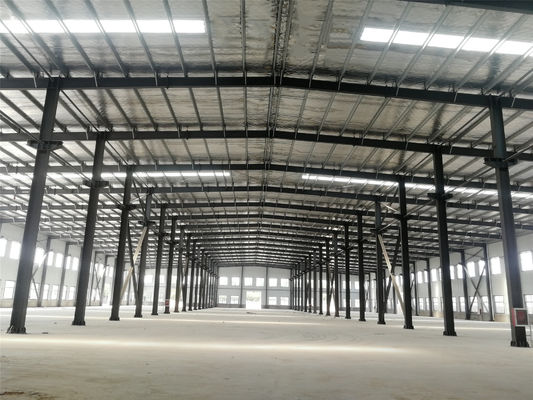

1. Main steel frame structure

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 0

2. Laying purlin

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 1

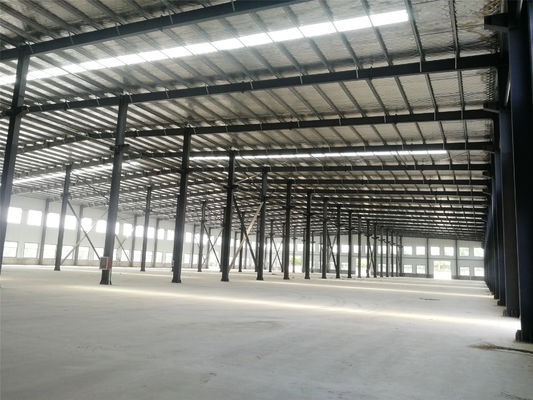

3. H section steel column

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 2

4. End wall

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 3

Welded steel components in our factory:

Welding

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 4

Packing

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 5



How to get a quote :

The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will it be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not

If yes, _____units, max. lifting weight____tons; max. lifting height _____m









Main parts of the steel structures and technical parameters:



Main Steel Frame System
Main structure H section steel Q345, alkyd painting, two primary painting, two finish painting.
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Ordinary bolt Galvanized bolt M20
Ordinary bolt Galvanized bolt M12
Brace nut Galvanized bolt M12
Bracing System
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Batter brace Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting)
Wall & Roof System
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Fittings & accessories Nails, glue etc.
Unpowered ventilator Diameter Φ600, stainless steel
Sky lighting band 1.2mm FRP, double layer
Sliding door sandwich panel door
Roof drainage system
Gutter 0.5mm color steel plate
Rainspout pipes Φ110 PVC pipe
Installation:

1: We provide construction drawing before installation.

2. Then our engineer guide on site for installation

Prefabricated Steel Frame Buildings / Metal Building Frame Structure Warehouse 6



Why did you choose us?



Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.

  1. Low cost---Professional design, less construction time; saving raw materials.
  2. Environmental protection---specialized cladding materials guarantee excellent acoustic and insulation performance; no pollution ;Raw material can be recycled

Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company, located in Qingdao, China, which integrates steel structure design, research and development, manufacturing and installation. The project types include prefabricated steel workshop, warehouse, logistics park and other light steel structure of the civil building system, high-rise residential buildings, exhibition center, stadium, airport station and bridge, Power plant, chemical plant, oil and gas, mining,etc.
Our company's steel structure processing plant now covers an area of 35,000 square meters, plant20,000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 1500 Tons. Our steel structure componetns include light/heavy H steel ,BOX steel,Cross shaped section steel, large diameter submerged arc straight-weld pipe,steel model structure, C/Z purlin and machining fitting components . There are three subordinate steel structure companies, which have passed and strictly implemented ISO9001:2008 quality management system, ISO14001:2004 environmental system, GB/T28001:2001 occupational health system, and obtained ASTM certification in the United States, and international SGS product certification. Obtained the right of export, design, installation and consultation from the ministry of foreign trade and economic cooperation.



RFQ:

1. Are you a manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.

2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.

3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.

4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.

5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.

6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.

7. How can you get a quotation for your projects?
You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
