Product Details:
|
| Features: | Prefab Steel Structure, Large Span, Multi-Floor | Carbon Structural Steel: | Q355 |
|---|---|---|---|
| Application: | Steel Workshop, Steel Structure Platform, Steel Fabricated House, Structural Roofing, Frame Part, Steel Walkway And Floor, Steel Structure Bridge | Keyword: | Prefabricated Steel Structure Warehouse/Workshop |
| Size: | Customized | Service Life: | More Than 50 Years |
| Installation: | Engineer Guidance On Site | Drawing: | CAD, Tekla, 3D Model, Pkpm, Bim |
| Usage: | Steel Structure Construction | Surface Treatment: | Painting Or Hot-DIP Galvanized |
| Transport Package: | Standard Export Package Or Customers Requirement | Origin: | China |
| Production Capacity: | 50000 Square Meter Per Month | Connection Form: | Bolt Connection |
| Type Of Steel For Building Structure: | H-Section Steel | Residential Wall Structure: | Wall Support |
| Product Name: | High Quality Prefab Steel Structure Warehouse Building Cost Prefabricated Workshop Metal Construction For Export | Columns & Beams: | H-Section Steel |
| Raw Steel Material: | Q235B, Q355b, ASTM A36 | Parapet Wall: | As Requested |
| Certification: | CE, Aisc, SGS, BV, ISO, GB | Residential Wall Structure Building Structure: | Steel Cladding Sheet/Sandwich Panel |
| Wall And Roof: | Steel Cladding Sheet, Sandwich Panel | Specification: | Prefab Steel Buildings |
| HS Code: | 9406900090 |
Free Design Prefabricated Large Clear Span Steel Structure Building Manufacturer Prefab Metal Construction Materials
One of the main advantages of a 3500 square meter steel structure factory building is its cost-effectiveness. The manufacturing process for these buildings is highly efficient and streamlined, resulting in lower labor and material costs. This makes them an attractive option for businesses looking to save money on construction.
Another benefit of a steel structure factory building is its speed of construction. The pre-made steel components are manufactured off-site and then assembled on the factory's location, reducing the time and labor required for construction. This also allows for quicker occupancy and production, leading to faster returns on investment for businesses.
In terms of design flexibility, a 3500 square meter steel structure factory building offers a wide range of options. The steel components can be easily customized to fit the specific needs of the business, whether it's for a small factory or a large industrial facility. This flexibility also allows for future expansions or modifications to the building without major disruptions.
One of the key advantages of a steel structure factory building is its strength and durability. Steel is a highly resilient material that can withstand harsh weather conditions, seismic activity, and heavy loads. This makes it an ideal choice for factories that need to house heavy machinery or equipment.
Additionally, steel structure factory buildings are environmentally friendly. The manufacturing process produces very little waste, and the steel components can be recycled at the end of the building's lifespan. This makes them a sustainable and eco-friendly option for businesses looking to reduce their carbon footprint.
In conclusion, a 3500 square meter steel structure factory building offers numerous benefits that make it a practical and efficient solution for businesses of all sizes. From cost-effectiveness and speed of construction to design flexibility and durability, these buildings have proven to be a valuable investment for businesses looking to expand or upgrade their manufacturing facilities. Consider the advantages of a steel structure factory building for your business and make the smart choice for your construction needs.

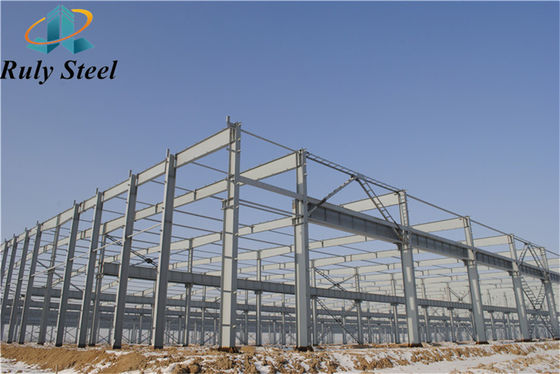

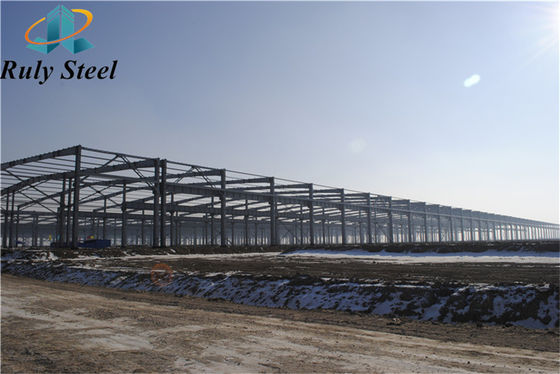

1. Main steel frame structure
2. Laying purlin

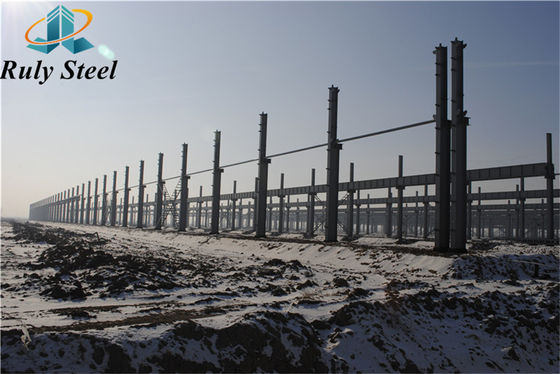

3. H section steel column
4. End wall
Welding
Packing
| Main Steel Frame System | |
| Main structure | H section steel Q345, alkyd painting, two primary painting, two finish painting. |
| Roof purlin | XZ160*60*20*2.5, galvanized |
| Wall purlin | XZ160*60*20*2.5, galvanized |
| Intensive bolt | Grade 10.9 |
| Turn buckle bolt | M20+2, steel Q235, processing |
| Anchor bolt | M24, steel Q235, processing |
| Ordinary bolt | Galvanized bolt M20 |
| Ordinary bolt | Galvanized bolt M12 |
| Brace nut | Galvanized bolt M12 |
| Bracing System | |
| Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
| Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
| Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
| Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
| Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
| Wall & Roof System | |
| Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
| Edge cover | 0.5mm color plate, angle Alu. |
| Fittings & accessories | Nails, glue etc. |
| Unpowered ventilator | Diameter Φ600, stainless steel |
| Sky lighting band | 1.2mm FRP, double layer |
| Sliding door | sandwich panel door |
| Roof drainage system | |
| Gutter | 0.5mm color steel plate |
| Rainspout pipes | Φ110 PVC pipe |
1: We provide construction drawing before installation.
2. Then our engineer guide on site for installation
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will it be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
Many customers have visited our factory for the long term cooperation."Quality firstly,Customer firstly" is our company principle.We obtain sound reputation because of our good quality and service. Meanwhile,We pay attention to the team work and value win-win cooperation, which would guide us much further.
Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure fabrication and engineering company, located in Qingdao, China, which integrates steel structure design, research and development, manufacturing and installation. The project types include prefabricated steel workshop, warehouse, logistics park and other light steel structure of the civil building system, high-rise residential buildings, exhibition center, stadium, airport station and bridge, Power plant, chemical plant, oil and gas, mining,etc.
Our company's steel structure processing plant now covers an area of 35,000 square meters, plant20,000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 1500 Tons. Our steel structure componetns include light/heavy H steel ,BOX steel,Cross shaped section steel, large diameter submerged arc straight-weld pipe,steel model structure, C/Z purlin and machining fitting components . There are three subordinate steel structure companies, which have passed and strictly implemented ISO9001:2008 quality management system, ISO14001:2004 environmental system, GB/T28001:2001 occupational health system, and obtained ASTM certification in the United States, and international SGS product certification. Obtained the right of export, design, installation and consultation from the ministry of foreign trade and economic cooperation.
RFQ:
1. Are you a manufacture factory or trading company?
We are manufacture factory. And you are welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will can get best and most competitive price after visiting us.
2. Is your price competitive compared with other companies?
Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3. Can you send engineers or whole team to install my project?
We will give detailed installation drawings for free. We can send engineers as installation director or a team upon request.
4. Do you accept container loading inspection?
You are welcomed to send an inspector, not only for the container loading, but any time during the production time.
5. Do you offer designing service for us?
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design complex industrial building like office mansion, super marker, auto dealer shop, shipping mall, 5 star hotel.
6. What is the delivery time?
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
7. How can you get a quotation for your projects?
You can contact us by email, phone, WhatsApp, Viber and so on 24*7 and you will get reply within 8 hours.
