Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof
Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof

Large Image :  Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof

Product Details:
Place of Origin: Qingdao,China
Brand Name: Ruly Steel
Certification: CE,AISC,SGS, BV, ISO,GB
Model Number: RULYC017
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meters
Price: USD19-USD39 Per Square Meter
Packaging Details: 40HQ/Open top container
Delivery Time: 20 days
Payment Terms: L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability: 20,000 square meters or 1,500 tons per month

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Raw Steel Material: Q235B, Q355B, ASTM A36
Application: Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part Surface Treatment: Painting Or Hot-DIP Galvanized
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet,Sandwich Panel
Columns & Beams: H-Section Steel Shot Blasting Level: SA 2.5
Certification: CE, AISC, SGS, BV, ISO, GB Installation: Engineer Guidance On Site
Drawing: CAD, TEKLA, 3D Model, PKPM, BIM HS Code: 9406900090
Transport Package: Standard Export Package Or Customer′s Requirement Production Capacity: 30000ton/Year
Connection Form: Bolt Connection

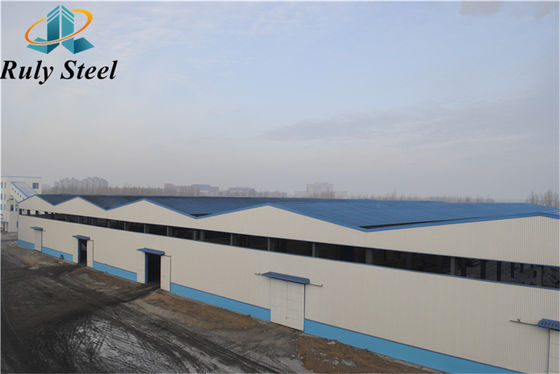

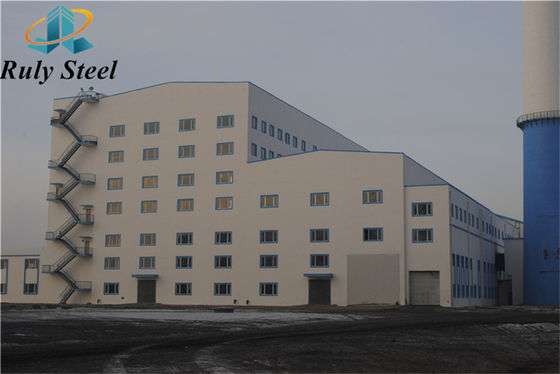

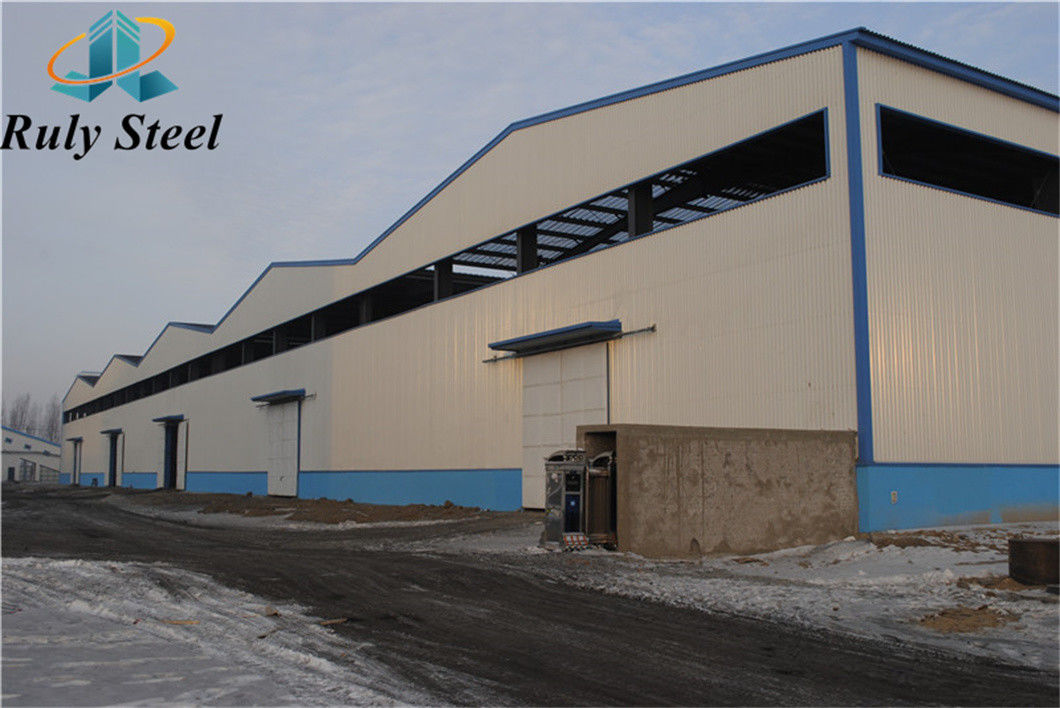

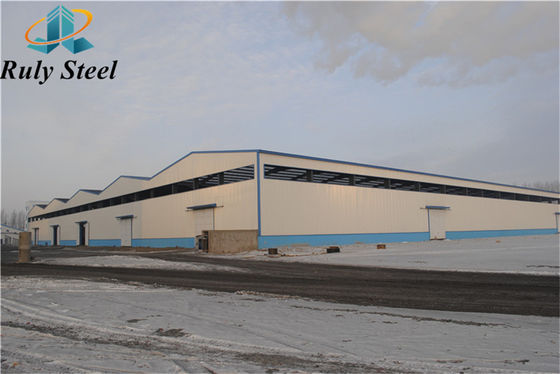

Prefabricated Metal Steel Structure Warehouse Large-Span Multi-Roof Electric Heating Plant



Project description:



A steel structure with a large span and multiple ridge lines is commonly used in the construction of electric heating plants. This type of structure offers several advantages and can be described as follows:



Structural Integrity: The steel structure provides excellent strength and stability, allowing for the construction of large-span buildings. The use of steel beams and columns ensures structural integrity, enabling the facility to withstand heavy loads, harsh weather conditions, and seismic activity.



Wide Clear Span: The large-span design of the steel structure eliminates the need for intermediate support columns or walls, creating an unobstructed space within the electric heating plant. This open layout provides flexibility in equipment placement, machinery installation, and workflow organization.



Efficient Space Utilization: The absence of internal support columns allows for optimal space utilization. The open area can be efficiently utilized for machinery, storage, and operational activities. It also provides a safe and spacious working environment for personnel to move around and perform their tasks with ease.



Quick Construction: Steel structures can be fabricated off-site, allowing for faster construction compared to traditional building methods. The prefabricated steel components are accurately manufactured, ensuring a precise fit during assembly. This reduces construction time, labor costs, and potential disruptions to plant operations.



Fire Resistance: Steel structures used in electric heating plants are designed to be fire-resistant. Steel has inherent fire-resistant properties, and additional fire protection measures such as fireproof coatings can be applied to enhance safety. This helps in safeguarding the facility, equipment, and personnel from fire hazards.



Longevity and Durability: Steel structures are known for their durability and longevity. They can withstand the test of time, requiring minimal maintenance and repair. The steel components are resistant to corrosion, pests, and environmental degradation, ensuring the long-term integrity of the electric heating plant.



Expansion Potential: The design of a steel structure with multiple ridge lines allows for future expansion if needed. Additional wings or sections can be seamlessly integrated into the existing structure, accommodating the growth and evolving needs of the electric heating plant without significant disruption to operations.



In summary, a steel structure with a large span and multiple ridge lines offers advantages such as structural integrity, wide clear span, efficient space utilization, quick construction, fire resistance, longevity, and expansion potential. These features make it an ideal choice for constructing electric heating plants, providing a safe, functional, and durable facility for efficient operations.





Steel Frame H section steel Q235/Q355 steel plate thickness: 8-30mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ20, Steel Q235, processed and painted
Column brance Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Gutter 0.4mm thick sheet steel profile or galvanized sheet
Down pie Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall Sandwich panel or corrugated steel plate
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window





Company profile:



Qingdao Ruly Steel Engineering Co., Ltd is a professional steel structure design, research, fabrication and construction company, located in Qingdao, China. Our company's steel structure processing plant now covers an area of 35, 000 square meters, plant20, 000 square meters. More than 100 employees. The monthly production capacity for steel structure is more than 2000 Tons.

We could contract the projects such as prefabricated steel structure warehouse, workshop, storage sheds, garage, hangar, chicken shed, car parking, showroom, office buildings, gym, dormitory building, high rise steel residence buildings, oli&gas project, power station, infrastructure buildings, etc.

At present, Our products have been exported to Southeast Asia, South America, Middle East and Africa, Australia, etc. In order to serve better for the exported project, we get certification of AWS D1.1, CE(EN 1090-1: 2009+A1: 2011), ISO 14001, ISO9001, ISO45001, AS/NZS 1554, SGS and BV Certification.

We provide one-stop service for steel structure project, just tell us your requirement, and we will give you what you need.



Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 0



Processing and fabrication:



Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 1Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 2
Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 3Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 4

Our service:





Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 5Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 6

Our certificate:

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 7

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 8

Packing and loading:



Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 9

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 10

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 11

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40'HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.



Why us:



1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.

2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.

3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.

4. Professional QC team will guarantee that we will provide the production and service as your request.

5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 12

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 13

Prefabricated Metal Steel Structure Fabrication Large Span Multi Roof 14

How to quote:



The following questions we need to know before offering the quotation. Just feel free to fill in what you know.



1 Location (where will it be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
