Product Details:
|
| Application: | Steel Structure Packaging Workshop | Type: | Steel Frame Structure Buildings |
|---|---|---|---|
| Working Scope: | Design,Fabrication, Installation | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Shot Blasting Level: | Sa 2.5 |
| Service Life: | 50 Years | Wall And Roof: | Glass Wool |
| High Light: | Customized Steel Structure Building,DIN Prefabricated Steel Structure Building,Sa 2.5 Prefabricated Warehouse Buildings |
||

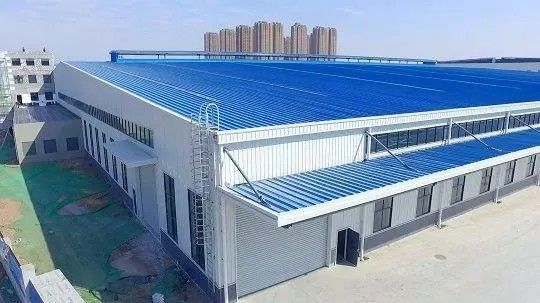

China Prefabricated Warehouse Customized Steel Building Steel Structure Building Factory
This is a China Prefabricated Warehouse Customized Steel Building Steel Structure Building Factory. We could design and fabricate for the Poultry farm, livestock house building. The main steel frame structure could be light H-section steel, steel square tube, double-purlin. The surface treatment for steel structure components could be paint or hot dip galvanized.
| Name |
China Prefabricated Warehouse Customized Steel Building Steel Structure Building Factory |
| Structure Type | Portal frame, single ridge, two slopes,single span |
| Length | 60 m |
| Width | 25m |
| Eave Height | 7m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof |
steel cladding sheet |
| Wall | steel cladding sheet |
| Height difference between indoor and outdoor | 300mm |
| Service Life | 50-70years | Standard | AISI, ASTM, BS, DIN,JIS |
| Place of Origin | Qingdao,Shandong,China | Material | steel and sandwich panel |
| Grade | Q235B, Q355B or as per customer's need | Application | workshop, warehouse, poultry house,garage etc. |
| Connection | intensive bolt, ordinary bolt | Bolt Grade | M20, M16, M14 etc. |
| Downsput | PVC pipe or as per customer's request | Window | PVC steel or aluminum alloy |
| Purlin | C/Z shape profile | Door | sliding or rolling door |
| Main Frame | welded or hot rolled H section steel, colum and beam | Panel | EPS/PU/fiber glass/rock wool |
| Delivery | 30-40days | Payment |
TT,LC
|
We could contract the projects such as prefabricated steel structure warehouse, workshop, storage sheds, garage, hangar, chicken shed, car parking, showroom, office buildings, gym, dormitory building, high rise steel residence buildings, oli&gas project, power station, infrastructure buildings, etc.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
