Wide span Workshop Prefab Steel Structure Q235B, Q355B Easy Assemble low cost Crane Ventilation
Wide span Workshop Prefab Steel Structure Q235B, Q355B Easy Assemble low cost Crane Ventilation

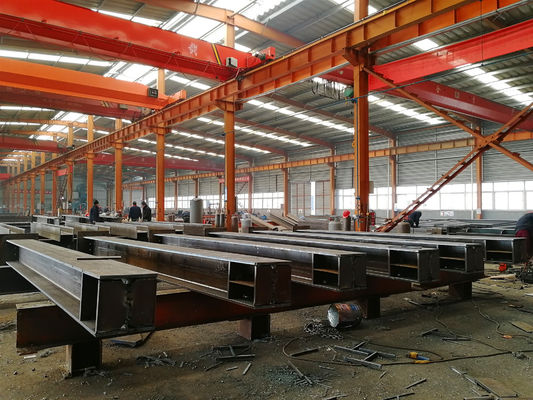

This Wide span Prefab Steel Structure Workshop is used for machine parts processing,according to the customer's request, we provide welded steel beam&column, roof and wall panel, purlin, window and doors and other accessory.All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.
1. Wide span: Single span or Multi-span
2. Low cost: unit price range from USD50/m2 to USD80/m2 according to clients' request
3. Long lifespan: about 20~ 50 years
4. Fast construction and easy installation
5. Others: environmental protection, stable structure, earthquake resistance,
water proofing, and energy conservation.
Name | Steel Structure Warehouse Building Construction Large Span Easy Assemble | |
Dimension | Length | H beam:400-1500mm |
Thickness |
web plate: 6-32mm wing plate: 6-40mm |
|
Height | 200-1200mm | |
color | according to customers |
Advantage |
1. low cost but beautiful out look 2. high savety performance 3. easy to assemble and dismantle 4.manufacture under under complete quality control system ISO9001 5. Installation with instruction of experiance engineers. 6. Non-pollution |
Main components |
base | cement and steel foundation bolts |
Main frame | H beam | |
Material | Q235B, Q355B or others as customer's request | |
Purlin | C or Z purlin,size from C120-C320,Z100-Z20 | |
bracing | X-type or other type bracing made from angle,round pipe. | |
bolt | plain bolt and high strength bolt | |
Roof&wall | sandwich panel and color plate | |
door | sliding or rolling door | |
Window | Aluminium alloy window | |
surface | two ways of anti-rust painting or hot dip galvanized |
components | sheet | 0.5mm or 0.6mm galvanized sheet |
Accessories | semi-transparent skyling belts, Ventilators,down pipe,galvanized gutter,etc. |
Usages |
1.worshop,warehouse,plants. 2. steel web frame structure 3. steel H-colum and sheet H-beam 4. Portal frame products 5. high rise building project 6. other steel structure buildings. |
Packing | Main sheet frame without packing load in 40'OT |
Drawing | according to drawings or according to customer's requirements. |
Design |
If you need design for you, please supply us the following phareters and other detailed size: 1) length,wideth,height,eave height,roof pitch etc. 2) wind load,snow load,raining condition,aseismatic requirments,etc. 3) demand for doors and windows. 4) other information if necessory |
Main Steel Frame System | |
Main structure | H section steel Q355, alkyd painting, two primary painting, two finish painting. |
Roof purlin | XZ160*60*20*2.5, galvanized |
Wall purlin | XZ160*60*20*2.5, galvanized |
Intensive bolt | Grade 10.9 |
Turn buckle bolt | M20+2, steel Q235, processing |
Anchor bolt | M24, steel Q235, processing |
Ordinary bolt | Galvanized bolt M20 |
Ordinary bolt | Galvanized bolt M12 |
Brace nut | Galvanized bolt M12 |
Bracing System | |
Cross brace | Φ20 round steel bar Q235, process and painted (alkyd painting) |
Angle brace | L50*5 angle steel Q235, process and painted (alkyd painting) |
Column bracing | Φ25 round steel bar Q235, process and painted (alkyd painting) |
Tie bar | Φ127*3 steel pipe Q235, process and painted (alkyd painting) |
Batter brace | Φ32*2.5, Φ12 round steel bar Q235, process and painted (alkyd painting) |
Wall & Roof System | |
Roof panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Wall panel | Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU) |
Edge cover | 0.5mm color plate, angle Alu. |
Fittings & accessories | Nails, glue etc. |
Unpowered ventilator | Diameter Φ600, stainless steel |
Sky lighting band | 1.2mm FRP, double layer |
Sliding door | sandwich panel door |
Roof drainage system | |
Gutter | 0.5mm color steel plate |
Rainspout pipes | Φ110 PVC pipe |
We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
Method 1: We provide shop drawing before installation.
Method 2: If you still don't know how to install, We will teach you the installation in our factory. when necessary , we will assemble a sample steel structure building for you.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.
The following question we need to know before making the price. Just feel free to fill what you know.
1 | Location (where will it be built?) | _____country, area |
2 | Size: length*width*height | _____mm*_____mm*_____mm |
3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
4 | snow load (max. snow height) | _____kn/m2, _____mm |
5 | anti-earthquake | _____level |
6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
