Product Details:
|
| Application: | Steel Frame Workshop Buildings | Usage: | Steel Structure Workshop With Overhead Crane |
|---|---|---|---|
| Type: | Prefab Steel Structure Workshop | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
| Surface Treatment: | Painting Or Hot-dip Galvanize | Service Life: | 50 Years |
| Wall And Roof: | Steel Cladding | Working Scope: | Design,Fabrication, Installation |
| High Light: | ASTM A36 Steel Structure Building,Galvanized Prefab Steel Structure Building,Q235B Prefab Steel Structure Workshop |
||

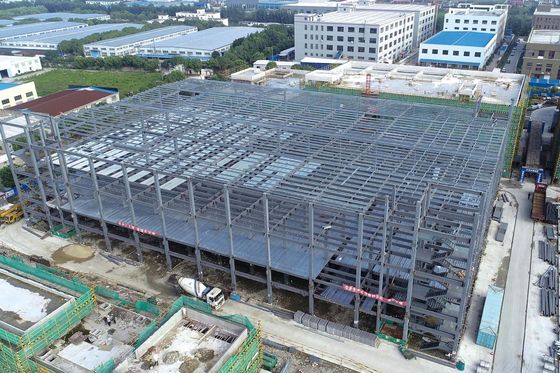

Low cost factory prefab steel structures building workshop shed for industrial
Steel structure workshop is a building with steel structure as the frame and metal plate as the enclosure system. It is widely used in light steel structure, large steel structure industrial plant, large public building, small civil building, steel structure elevator shaft, steel structure carport, steel structure bridge, etc. And according to the different materials used in steel structure, steel structure workshops and other buildings can be divided into light steel structure workshops and heavy steel structure workshops. Although the scope of application of these two kinds of steel structures is different, but in a broad sense, these two kinds of building structures belong to the steel structure.
Steel structure has the characteristics of high strength, light weight and high stiffness, which is very suitable for the construction of large-span and super-heavy buildings. The material has good homogeneity and isotropy, and is an ideal elastic body, which conforms to the basic assumptions of general engineering mechanics. The material has large deformation and can bear dynamic load well. The steel structure construction period is short, the industrialization degree is high, can realize the mechanization degree of high production; High processing precision, high efficiency, good sealing performance, can be used to manufacture oil tanks, oil tanks, transformers and so on.
| No. | Item | Details of steel structure building or steel frame | |
| 1 | Material | Material | carbon structural steel |
| 2 | Produce | Lead time | Normallly 45days after down payment, also according to quantity. |
| 3 | Quality | Certification | Quality certificate from factory, the third party by client request. |
| 4 | Dimensions | Length | H beam: 4000-15000mm |
| 5 | Thickness: | web plate: 6-32mm | |
| 6 | wing plate: 6-40mm | ||
| 7 | Height | 200-1200mm | |
| 8 | Color | According to customers | |
| 9 | Size | MOQ is 1000 m2, width * length * eave height, | |
| 10 | Main components | Base | Cement and steel foundation bolts |
| 11 | Main frame | H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe | |
| 12 | Secondary frame : | galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc. | |
| 13 | Material | Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS, | |
| 14 | Purlin | C or Z purlin: Size from C120~C320, Z100~Z20 | |
| 15 | Column | X-type, tree type ,lattice, Cross, Box etc. | |
| 16 | Bolt | Plain bolt and High-strength bolt | |
| 17 | Roof & wall | PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet | |
| 18 | Canopy | steel sheet, PU sandwich panel, Rockwool sandwich panel | |
| 19 | Door | Sliding or rolling door | |
| 20 | Window | Aluminium alloy window | |
| 21 | Surface | Two lays of rust-proof painting or Hot Dip Galvanized | |
| 22 | Sheet | 0.5mm or 0.6mm galvanized sheet | |
| 23 | Accessories | Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc | |
| 24 | Finishing options | Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized. | |
| 25 | Usages | 1. Steel workshop, steel warehouse, steel structure plant | |
| 26 | 2. Steel web frame structure | ||
| 27 | 3. Steel H-column and steel H-beam | ||
| 28 | 4. Portal frame products | ||
| 29 | 5. High rise building project | ||
| 30 | 6. Others steel structure buildings | ||
| 31 | Packing | 1. Container 20 feet: Inside: 5.69m x 2.34m x 2.18m, Gross weight: 17.5 ton, volume is 24-26m3. 2. Container of 40 feet: Inside: 11.8m x 2.34m x 2.18m, Gross weight: 22 ton, volume is 54m3. 3. HC container: Inside: 13.58m x 2.34m x 2.71m, Gross weight: 29 ton, volume is 68m3. 4. All of the steel columns &beams ends and plates will be packed by the blanket to protect them from the crash in the container during the shipment. |
|
| 32 | |||
| 33 | |||
| 34 | |||
| 35 | Drawing | According to drawings or steel structure design, according to customer's requirement. | |
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
| Items | Questions | Answers |
| 1 | Are you manufacture factory or trading company? | We are manufacture factory. Welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will get best and most competitive price after visiting us. |
| 2 | Is your price competitive compared with other companies? | Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for. |
| 3 | Can you send engineers or whole team to install my project? | We will give detailed installation drawings for free for each project before installation. We can send engineers to guide installation on site or a construction team to install directly. |
| 4 | Do you offer designing service for us? |
Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design proposal drawing, shop drawing, 3D Tekla model, construction/installation drawing to you. |
| 5 | What is the delivery time? |
Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit. |
| 6. | How to pack and transport: | All the structure components, panels,bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40’HQ. |
