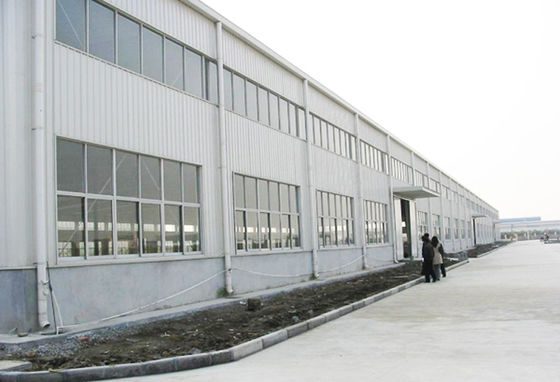

Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop

Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop
Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop

Large Image :  Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0389
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop

Description
Application: Steel Frame Workshop Buildings Usage: Mechanical Production Workshop
Type: Prefab Steel Structure Workshop Raw Steel Material: Q235B, Q355B, ASTM A36
Surface Treatment: Painting Or Hot-dip Galvanize Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
High Light:

Multi Span Prefabricated Steel Building

,

H 1200mm Prefabricated Steel Building

,

Q235B Mechanical Production Workshop

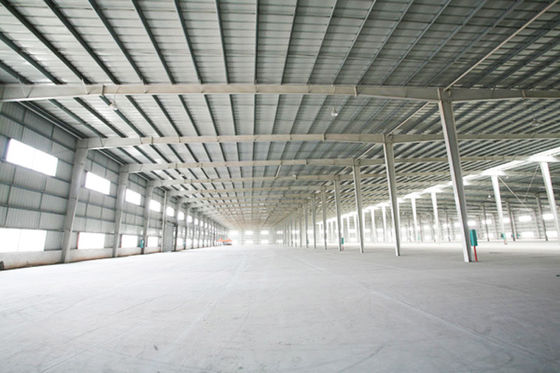

Multi-Span Metal Workshop/Prefabricated Steel Building/Mechanical Production Workshop



Multi-Span Metal Workshop/Prefabricated Steel Building/Mechanical Production Workshop. Generally, one or more steel structure platforms are arranged in the workshop. Most of the steel structure materials are wide flange H-shaped steel, and the installation methods are mostly high-strength. Bolt connection, with the increasing popularity of the use of steel structure workshops, the manufacturing, transportation and installation process technology of steel structure workshops has received more and more attention, and it has also been rapidly developed and continuously improved. The steel structure workshop has simple design structure, light weight, high strength, easy production and installation, large space span of the workshop, short construction period, low price, strong earthquake resistance, and can improve the overall earthquake resistance of the whole house.



We are one professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.



Main parts of the steel structures and technical parameters:



No.  Item Details of steel structure building or steel frame
1 Material Material carbon structural steel
2 Produce Lead time Normallly 45days after down payment, also according to quantity.
3 Quality Certification Quality certificate from factory, the third party by client request.
4 Dimensions Length H beam: 4000-15000mm
5 Thickness: web plate: 6-32mm
6 wing plate: 6-40mm
7 Height 200-1200mm
8 Color According to customers
9 Size MOQ is 1000 m2, width * length * eave height,
10 Main components Base Cement and steel foundation bolts
11 Main frame H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12 Secondary frame : galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13 Material Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14 Purlin C or Z purlin: Size from C120~C320, Z100~Z20
15 Column X-type, tree type ,lattice, Cross, Box etc.
16 Bolt Plain bolt and High-strength bolt
17 Roof & wall PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
18 Canopy steel sheet, PU sandwich panel, Rockwool sandwich panel
19 Door Sliding or rolling door
20 Window Aluminium alloy window
21 Surface Two lays of rust-proof painting or Hot Dip Galvanized
22 Sheet 0.5mm or 0.6mm galvanized sheet
23 Accessories Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24 Finishing options Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25 Usages 1. Steel workshop, steel warehouse, steel structure plant
26 2. Steel web frame structure
27 3. Steel H-column and steel H-beam
28 4. Portal frame products
29 5. High rise building project
30 6. Others steel structure buildings
31 Packing 1. Container 20 feet: Inside: 5.69m x 2.34m x 2.18m, Gross weight: 17.5 ton, volume is 24-26m3.
2. Container of 40 feet: Inside: 11.8m x 2.34m x 2.18m, Gross weight: 22 ton, volume is 54m3.
3. HC container: Inside: 13.58m x 2.34m x 2.71m, Gross weight: 29 ton, volume is 68m3.
4. All of the steel columns &beams ends and plates will be packed by the blanket to protect them from the crash in the container during the shipment.
32
33
34
35 Drawing According to drawings or steel structure design, according to customer's requirement.



Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop 0



Our steel structure fabrication factory:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.



Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop 1



Packing and transport:



All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Multi Span Prefabricated Steel Building Metal Mechanical Production Workshop 2

FAQ:



Items Questions Answers
1 Are you manufacture factory or trading company? We are manufacture factory. Welcomed to visit us at any time. The quality control flow and sales team will show you our professionalism. Also you will get best and most competitive price after visiting us.
2 Is your price competitive compared with other companies? Our business objectives are to give the best price with same quality and best quality with the same price. We will do everything we can to reduce your cost and guarantee you get the best product that you paid for.
3 Can you send engineers or whole team to install my project? We will give detailed installation drawings for free for each project before installation. We can send engineers to guide installation on site or a construction team to install directly.
4 Do you offer designing service for us?

Yes, we could design full solution drawings as your requirements. By using AutoCAD, PKPM, MTS, 3D3S, Tarch, Tekla Structures (Xsteel) and etc. we can design proposal drawing, shop drawing, 3D Tekla model, construction/installation drawing to you.
5 What is the delivery time?

Delivery time depends on order quantities. In general the delivery time to nearest seaport in China will be 40 days after receiving deposit.
6. How to pack and transport: All the structure components, panels,bolts and sort of accessories will be well packed with standard package suitable ocean transportation and loaded into 40’HQ.
