|Features:||Multi Span Warehouse Buildings||Application:||Prefabricated Steel Structure Building|
|Type:||Steel Structure Warehouse||Raw Steel Material:||Q235B, Q355B, ASTM A36|
|Service Life:||50 Years||Wall And Roof:||Steel Cladding Sheet|
|Surface Treatment:||Painting||Working Scope:||Design,Fabrication, Installation|
Mechanical Warehouse Steel Structure Building,
Q355 Steel Structure Building,
Prefabricated Steel Structure Mechanical Warehouse
Q355 Mechanical Warehouse Prefabricated Steel Structure Building

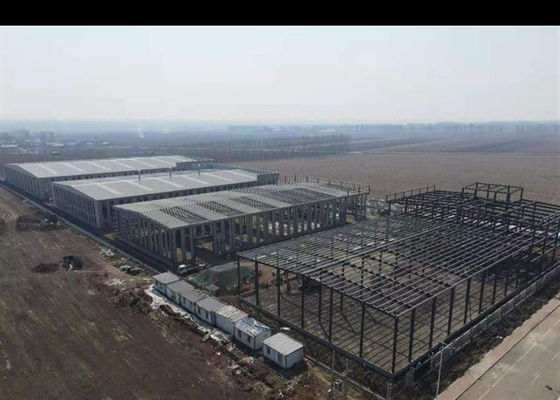

Q355 Mechanical Warehouse Prefabricated Steel Structure Building that is used to process sandwich panel. It has three spans. Each span has one 5T overhead crane. The main steel frame structure is consisted of Welded H-shaped steel beam & columns. The roof and wall panel are Rock wool sandwich panel.
Prefabricated Steel Structure Building is widely used as large warehouse, factory, workshops, sheds, garage, hangar, office buildings, bridges, stadiums and other buildings. Portal frame steel structure building is a new type of building structure system, which is formed by the main steel framework linking up H-section, Z-section, and U-section steel components, roof and walls using a variety of panels and other components such as windows and doors. We have special steel structure engineering design department and R & D department, Established an independent and perfect steel structure engineering design, optimization and deepening design system. Establishing engineering material-to-material storage, we not only control the reliability and economy of the structure, but also the types, performance, selection and combination of traditional enclosure materials and new maintenance materials. Our design is not only more applicable, safer and more economical, but also richer in architectural art.
|Item name||Specification||Material Parameter||Technical Treatment|
|Column||H shape,Box,steel pipe,Hot rolled sheet||Q235B,Q345B||Paint or Hot dip galvanized|
|Beam||H shape,steel Truss,Hot rolled sheet||Q235B,Q345B||Paint or Hot dip galvanized|
|Bracing||Steel rod,Steel pipe,Angle steel||Q235B,Q345B|
|Purling||C or Z shape, purling Thickness:1.8mm~3.0mm||Q235B,Q346B||Hot dip galvanized|
|Wall and roof panel||EPS,Rock wool,Pu,Glass wool Sandwich panel or Single sheet.||Steel T=0.426~0.8mm,insulation T=50~150mm||Alu-zinc 150g, Fluorocarbon paint|
|Door||Sliding or rolling door||Steel or Aluminum sheet,T=1.0~1.5mm||Paint or Hot dip galvanized|
|Lighting panel||FRP, T=1.5mm or T=1.8mm||Coefficient of thermal expansion:2.2x10-5/cm/cm/℃||Light transmittance 85%|
|Ventilator||Turbine ventilator, and electric type||Steel,stainless steel,PC||Paint or Hot dip galvanized,304|
|Gutter||Galvanized or stainless steel plate||T=2.0mm||Hot dip galvanized,304|
|Downpipe||PVC pipe,Color steel pipe T=0.5mm||Φ110,160,200||Paint|
|Bolt||Ordinary, high strength||10.9S,4.8s||Hot dip galvanized|
|Anchor bolt||Steel rod M24,M27 M30||Q235B|
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
