Product Details:
|
Application: | Pre Steel Structure Warehouse | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
---|---|---|---|
Type: | Steel Structure Warehouse | Shot Blasting Level: | Sa 2.5 |
Wall And Roof: | Glass Wool | Working Scope: | Design,Fabrication, Installation |
Service Life: | 50 Years | ||
Highlight: | ASTM A36 Steel Structure Warehouse Construction,Metal Structure Warehouse With Lighting |

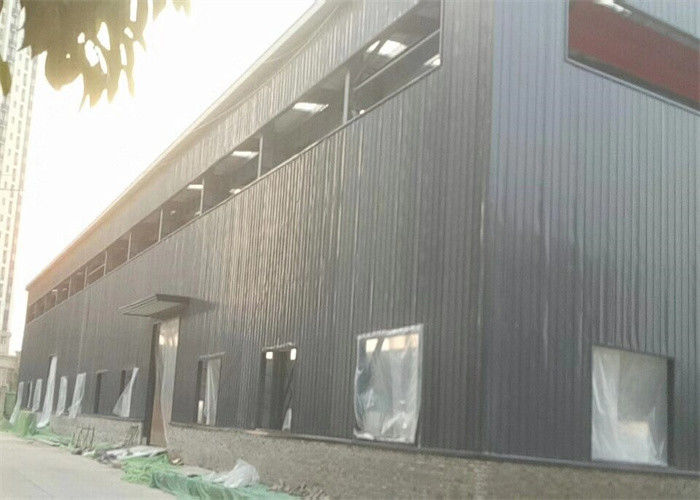

Prefabricated Steel Structure Warehouse/Steel Structure Building With Lighting
The prefabricated steel structure workshop, because of the large span and high strength, the steel structure workshop components can be processed in the factory, and the completion degree is high, which can realize industrial production, and can also reduce the on-site construction workload, improve the utilization rate of funds, and reduce investment costs; steel structure The plant produces less construction waste, is a green building, and the steel structure plant is suitable for different environments. It is more and more favored by architects and structural engineers, and its application fields are also expanding.
The design drawing and many design drawings of the steel structure workshop are also divided into two parts, which are divided into two parts: the design drawing and the construction drawing. The main direction of the drawing designer is in the in-depth research and exploration of the steel structure design. In the design process, this The designers of the two parts should coordinate their work, infiltrate their respective ideas into each other, and achieve a common goal in order to achieve a common goal. To ensure the smooth implementation of the project schedule and achieve the purpose of the project.
In the design of the steel structure workshop, attention should be paid to the separation measures of the temperature section of the single-storey workshop. With the expansion of my country's industrial construction scale, in recent years, a number of large-area workshops have been built. Some are hundreds of meters long, and some are more than ten meters cross-linked. The separation of the longitudinal temperature section is suitable for double-column expansion joints. For workshops with brackets, double-column expansion joints can also be realized by using a structure supported by hinged short steel columns or hanging steel plates. Longitudinal temperature section, such as the use of double-column expansion joints, will affect the use function. For plants, the method of sliding support is appropriate.
In the design of the steel structure workshop, attention should be paid to the arrangement of the roof support system. The factory roof support system improves the stability of the structure during installation and use, improves the overall rigidity of the structure, and controls the calculated length of the roof truss rod outside the plane to reduce the section size of the rod. Roof bracing systems include lateral bracing, longitudinal bracing, vertical bracing (for trapezoidal trusses only) and tie rods.
The design of the steel structure workshop should pay attention to the arrangement of the support system between the columns of the single-storey workshop. The inter-column support of the workshop is the longitudinal stability and spatial rigidity of the workshop, which carries the longitudinal stability and spatial rigidity of the workshop. The longitudinal wind load, crane load and seismic force of the factory building are transmitted to the foundation, and the calculated length of the column out of plane is controlled to reduce the cross-sectional size of the column. In addition to meeting the above functions, according to the required specifications, the setting of the inter-column support should also be coordinated with the roof support system, and within the same column spacing as the roof support.
Items | Specification | |
Main Steel Frame | Column | Q235, Q355 Welded H Section Steel |
Beam | Q235, Q355 Welded H Section Steel | |
Secondary Frame | Purlin | Q235 C and Z purlin |
Knee brace | Q235 Angle Steel | |
Tie Rod | Q235 Circular Steel Pipe | |
Brace | Q235 Round Bar | |
Vertical and Horizontal Support | Q235 Angle Steel, Round Bar or Steel Pipe | |
Maintenance system | Roof Panel | EPS Sandwich Panel /Glass Fiber Sandwich Panel / Rock Wool Sandwich Panel / PU Sandwich Panel /Steel Sheet |
Wall Panel | Sandwich Panel / Corrugated Steel Sheet | |
Accessories | Window | Aluminium Alloy Window / PVC Window / Sandwich Panel Window |
Door | Sliding Sandwich Panel Door / Rolling Metal Door / Personal Door | |
Downspout | PVC | |
Live load on Roof | In 120kg/Sqm (Color steel panel surrounded) | |
Wind Resistance Grade | 12 Grades | |
Earthquake-resistance | 8 Grades | |
Structure Usage | Up to 50 years | |
Temperature | Suitable temperature. -50ºC~+50ºC | |
Certification | CE, SGS, ISO9001: 2008, ISO14001: 2004 | |
Finishing Options | Vast array of colors and textures available | |
Paint Options | Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc. ) Or Galvanized. |
