Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction

Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction
Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction

Large Image :  Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0304
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction

Description
Features: Metal Workshop Construction Application: Industrial Steel Frame Buildings,
Type: Steel Frame Structure Workshop With Crane Raw Steel Material: Q235B, Q355B, ASTM A36
Service Life: 50 Years Wall And Roof: Rock Wool
Surface Treatment: Painting Working Scope: Design,Fabrication, Installation
High Light:

10mm Industrial Steel Frame Buildings

,

8mm Industrial Steel Frame Buildings

,

10mm Metal Workshop Construction



Industrial Steel Frame Buildings / Industrial Metal Workshop Construction



Project Information:

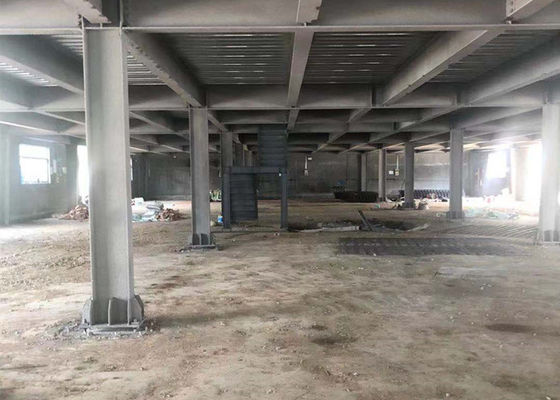

Industrial Steel Frame Buildings /  Industrial Metal Workshop Construction. The main steel frame structure is welded H-section steel columns and beams that is connected by high strength bolts. All the steel structure are fabricated in our factory. Welded steel structure has good rigidity and light weight, which provides favorable conditions for production, transportation and installation.

Qingdao Ruly Steel Engineering Co.,Ltd is a professional steel structure fabrication and construction company for light and heavy steel structure project. Our service include design, fabrication for all the steel structure components and insullation panel, installation on site.

Specification of steel structure material:



Steel Frame H section steel Q235/Q355 steel 8mm/10mm
Welding Automatic submerged arc welding
Rust removal Sand blasting
Surface finish Alkyd paint or galvanized
Intensive bolt M20,Grade 10.9
Supporting System Angle brace L50x4,Steel Q235, processed and painted
Horizontal brace Φ20, Steel Q235, processed and painted
Column brance Φ20, Steel Q235, processed and painted
Tie rod Φ89*3, Steel Q235, processed and painted
Ordinary bolt M12 Galvanized bolt
Roof Purlin C160*60*2.5,Steel Q235, galvanized and painted
Roof panel Sandwich panel or corrugated steel sheet
Sky light 6mm thick PVC
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Gutter 0.4mm thick sheet steel profile or galvanized sheet
Down pie Φ110PVC
Walls Purlin C160*60*2.5,Steel Q235, painted
Wall Sandwich panel or corrugated steel plate
Accessories Glass cement, self-tapping screws, etc.
Edge cover 0.4mm steel sheet profile trimming
Ventilation Ventilation ball
Doors & windows Rolling door/sliding door PVC/alu/steel/window

Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction 0

Advantages of prefabricated steel structure buildings:



1 High strength and light weight Although the density of steel is larger than that of other building materials, its strength is very high. Under the same force, the steel structure has a small weight and can be made into a structure with a large span.
2 Good plasticity and good toughness The plasticity of the steel is good, and the structure will not suddenly break due to accidental overload or partial overload. The toughness of the steel is good, making the structure more adaptable to dynamic loads.
3 High degree of industrialization in production The steel structure is mainly produced in a specialized metal structure factory, so the production is simple and the precision is high.
4 Simple construction and short construction period All components are prefabricated at the factory, and the site is simply assembled, which greatly shortens the construction period.
5 Wind resistance and structural stability Steel structure construction with light weight, high strength, good overall rigidity and strong deformation ability
6 Saving construction costs The steel structure has light weight, reduces the basic cost, and has a fast construction speed. It can be completed and put into operation as soon as possible, and the comprehensive economic benefits are much better than the concrete structure.
7 Recyclable Steel can be recycled, less environmentally polluted when constructed and removed



Our steel structure fabrication factory:

We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine.

Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction 1

How to install:

We will provide construction drawing for each project to guide installation. We will teach you the installation in our factory. We could dispatch our engineer to guide installation on site or we install it by our construction team.

Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction 2

Packing and transport:

All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Steel 8mm/10mm Industrial Steel Frame Buildings Metal Workshop Construction 3



teel structure workshop technology


Heat preservation and energy saving technology
In order to ensure the insulation function, a special material is used for the exterior and interior walls of the building. The material has heat preservation and energy saving technology.

Fire protection technology
Fire protection is essential to steel structures. The fire rating of steel structure is four. It can reach the need of one hour of fire prevention.

Finally, sound insulation technology. Glass wool can effectively prevent sound in the air.
