Product Details:
|
| Features: | Industrial Metal Buildings Construction | Application: | Prefabricated Steel Industrial Buildings, |
|---|---|---|---|
| Type: | Heavy Industrial Steel Structure Fabrication | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
| Surface Treatment: | Painting Or Hot-dip Galvanize | Service Life: | 50 Years |
| Working Scope: | Design,Fabrication, Installation | Beam And Column: | H-section Steel, Latticed Steel, Box Steel |
| Highlight: | industrial steel structure,industrial building construction,Prefabricated Steel Industrial Buildings |
||

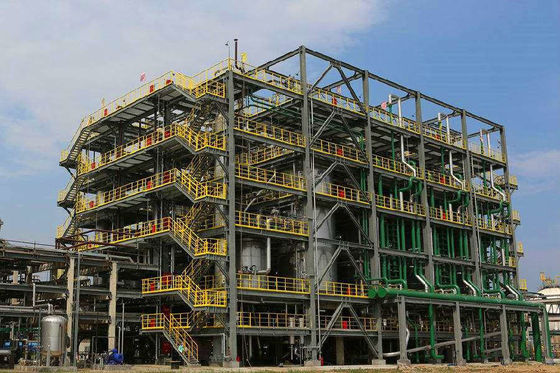

Prefabricated Steel Industrial Buildings / Industrial Metal Buildings Construction

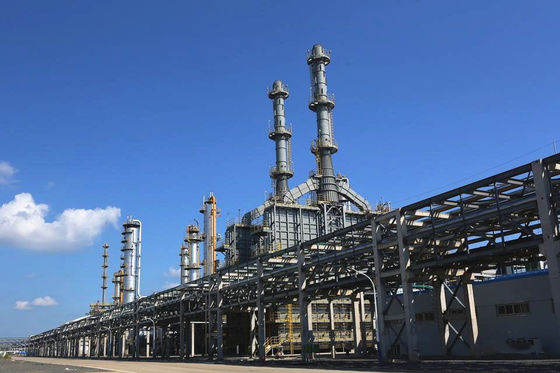

Prefabricated Steel Industrial Buildings / Industrial Metal Buildings Construction. This buildings is a heavy industrial steel frame structure building for Caustic soda plant and PVC production plant. It includes main production line for Caustic soda and PVC, piperack, storage area, etc.
Our service for this project include detailing the steel structure drawing, fabrication of the steel structure for main production line, piperack supporting and then delivery the steel structure to construction site.
We fabricated about 2000 tons steel strucutre for this project. As it is a chemial industry project, the fabrication requirement and painting requirement is very strictly. All the steel structure welding line should carry out ultrasonic testing, no fault, full penetration. Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, We delivery all the steel structure within 2 months that is totally following the requirement for this project.
| Product | H Steel Beam, Columns, Piperack Supporting Steel, Channel steel |
| Raws Steel Material | Q235 Q345 A36 A53 S235JR SS400 |
| Welding Technic | GB, AWS D1.1 |
| Shaped Steel | Hot rolled & welded |
| Section | H shaped |
| Rust-protection | Shot blasting, then paint Alkyd paiting, two primary painting, two finish painting |
| Application | Steel Frame Strucuture, Steel Supporting |
| Web Thickness | 8-55mm |
| Web Width | 50-600mm |
| Flange Thickness | 5-55mm |
| Flange Width | 100-2500mm |
| Length | 1-12m |
| Custom Order | Yes |
| Packing | Bundle etc. |
The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.
QC/Technical Support
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details.
