Product Details:
|
| Features: | Steel Structure Warehouse | Application: | Low Cost Prefabricated Buildings |
|---|---|---|---|
| Type: | Prefab Steel Buildings | Raw Steel Material: | Q235B, Q355B |
| Surface Treatment: | Painting | Service Life: | 50 Years |
| Wall And Roof: | Sandwich Panel | Working Scope: | Design,Fabrication, Installation |
| High Light: | steel structure building,metal warehouse construction |
||
Low Cost Prefabricated Light Weight Buildings For Steel Structure Warehouse

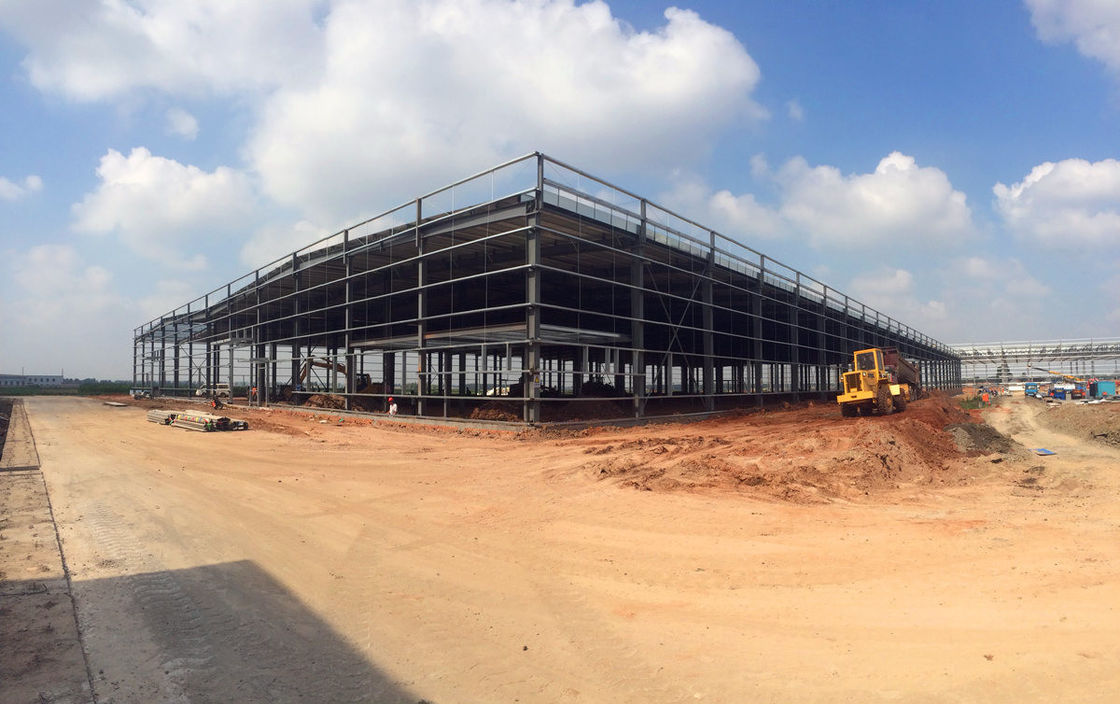

Low Cost Prefabricated Light Weight Buildings For Steel Structure Warehouse. This prefabricated steel structure warehouse is used for store automobile motors.With the rapid development of industrial construction, steel structure warehouses and workshops have been widely used. Steel structure warehouses and workshops have significant advantages: light weight, high strength, large span and environmental protection. The steel structure warehouse and plant structure in this solution are mainly composed of horizontal structure and longitudinal structure system. The transverse structural system uses the trusses (including roof trusses, beams and columns) as the basic load-bearing structure to withstand roof loads, lateral wind loads and earthquakes, as well as vertical loads and lateral horizontal loads of the crane. The longitudinal structural system is composed of columns, inter-column supports, wall beams, etc. In addition, there are housing peripheral wall frames and roof supports to form a space rigid skeleton.
| Name | Low Cost Prefabricated Light Weight Buildings For Steel Structure Warehouse |
| Structure Type | portal frame, double ridges, two spans for each ridge |
| Length | 200m |
| Width | 120m |
| Eave Height | 10m |
| Roof Slope | 10% |
| Gable Wall Column Spacing | 7.5m |
| Roof & Wall insulation panel |
75mm Glass wool sandwich panel |
| Door | Sliding door |
| Window | Ribbon Skylight |
| Main Parts | Item Name | Specification |
Main Steel Frame |
Steel Column |
Q235B, Q345B |
| H shape, Box, Steel pipe, Hot rolled sheet | ||
Steel Beam |
Q235B, Q345B | |
| H shape, Steel Truss, Hot rolled sheet | ||
Brace |
Q235B, Q345B | |
| Steel rod, Steel pipe, Angle steel | ||
| Roof Purlin | C or Z shape, Steel purlin | |
Supporting System |
Wall Purlin |
Q235B, Q345B |
| C or Z shape, Steel purlin | ||
| Roof | Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., | |
| Wall | Single colorful corrugate steel sheet, Sandwich panel with EPS, Rock wool, PU, Glass wool etc., | |
Accessories |
Bolts | Ordinary, High strength |
| Gutter | Galvanized Steel plate, Stainless steel | |
| Windows | Aluminum alloy-Glass, Aluminum alloy-shutter, PVC | |
| Doors | Sliding or Rolling door | |
| Downpipes | PVC pipe, Color steel pipe | |
| Edge Cover | Made of color steel sheet thickness 0.5mm | |
| Ventilator | Stainless steel | |
| Crane | Crane in 5 tons to 30 tons |
We have three production lines for steel structure fabrication, in order to serve better for abroad project, we buy some advanced machine in our production line, such as the plasma cutting machine.
We can design and fabricate customized steel structure components for light and heavy steel structure buildings in protal frame and dome frame, such as warehouse, workshop, storage, hangar, chicken shed, steel shed for market and ground parking, supermarket , high rise steel office buiding, factory , plant, exhibition hall, gym, dormitory building, oli&gas, power station, infrastructure buildings, etc.
All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.
All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.
The following question we need to know before making the price. Just feel free to fill what you know.
| 1 | Location (where will be built?) | _____country, area |
| 2 | Size: length*width*height | _____mm*_____mm*_____mm |
| 3 | wind load (max. wind speed) | _____kn/m2, _____km/h, _____m/s |
| 4 | snow load (max. snow height) | _____kn/m2, _____mm |
| 5 | anti-earthquake | _____level |
| 6 | brickwall needed or not | If yes, 1.2m high or 1.5m high |
| 7 | thermal insulation | If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much lower than that of the former |
| 8 | door quantity & size | _____units, _____(width)mm*_____(height)mm |
| 9 | window quanity & size | _____units, _____(width)mm*_____(height)mm |
| 10 | crane needed or not | If yes, _____units, max. lifting weight____tons; max. lifting height _____m |
