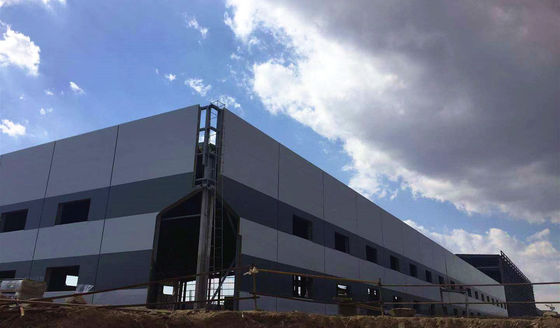

Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop

Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop
Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop

Large Image :  Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop

Product Details:
Place of Origin: China
Brand Name: Ruly Steel
Certification: SGS, BV, ISO
Model Number: Ruly0073
Payment & Shipping Terms:
Minimum Order Quantity: 500 Square Meter
Price: USD29-USD99 Per Square Meter
Packaging Details: As request
Delivery Time: 30 Days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 20000 Square Meter Per Month

Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop

Description
Application: Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop Usage: Steel Structure Workshop, Warehouse, Factory Buildings, Garment Factory, Clothes Plant
Type: Steel Structure Workshop Raw Steel Material: Q235B, Q355B
Surface Treatment: Painting Service Life: 50 Years
Wall And Roof: Glass Wool Working Scope: Design,Fabrication, Installation
High Light:

prefab steel buildings

,

steel structure factory building



Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop



General information:



Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop . Prefabricated steel frame structure buildings are mainly composed of steel beams, steel columns, steel trusses and other components made of steel and steel plates. Welding joints, bolts or the like are usually used between components or parts of steel structure workshops, warehouses, office buildings, houses and other buildings. Rivet connection. The steel structure building system has the comprehensive advantages of light weight, factory manufacturing, quick installation, short construction period, good seismic performance, fast investment recovery and less environmental pollution. Compared with reinforced concrete structures, it has more "high, large and light". "The unique advantages of the development of the three aspects, in the global scope, especially in developed countries and regions, steel structures have been rationally and widely applied in the field of construction engineering.



We are one-stop service contractor for steel structure design, fabrication and construction. Portal frame steel structure building project is our main business such as prefabricated steel warehouse, workshop, sheds, garage, office building.



Project information for Prefabricated steel structure workshop buildings



Name

Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop

Structure Type Portal frame, single ridge, two slopes, two spans
Length 30m-150 m
Width 9m-36m
Eave Height 4.5m-12m
Roof Slope 10%
Gable Wall Column Spacing 7.5m
Roof

steel cladding sheet, sandwich panel

Wall steel cladding sheet, sandwich panel
Door Sliding door
Window Ribbon Skylight
Height difference between indoor and outdoor 300mm



Material list and technical parameters



No. Item Details of steel structure building or steel frame
1 Material Material carbon structural steel
2 Produce Lead time Normallly 45days after down payment, also according to quantity.
3 Quality Certification Quality certificate from factory, the third party by client request.
4 Dimensions Length H beam: 4000-15000mm
5 Thickness: web plate: 6-32mm
6 wing plate: 6-40mm
7 Height 200-1200mm
8 Color According to customers
9 Size MOQ is 1000 m2, width * length * eave height,
10 Main components Base Cement and steel foundation bolts
11 Main frame H Steel beam, Q235 Q345 steel H beam and columns, painted or galvanized, box steel, galvanized C section or steel pipe
12 Secondary frame : galvanized C or Z purlin , steel bracing , tie bar , knee brace ,flashing etc.
13 Material Q235B, Q345B or others as buyers' requests, like: ASTM, BSEN, DIN, IPE,AISI,JIS,
14 Purlin C or Z purlin: Size from C120~C320, Z100~Z20
15 Column X-type, tree type ,lattice, Cross, Box etc.
16 Bolt Plain bolt and High-strength bolt
17 Roof & wall PU sandwich panel, Rockwool sandwich panel or Corrugated steel sheet
18 Canopy steel sheet, PU sandwich panel, Rockwool sandwich panel
19 Door Sliding or rolling door
20 Window Aluminium alloy window
21 Surface Two lays of rust-proof painting or Hot Dip Galvanized
22 Sheet 0.5mm or 0.6mm galvanized sheet
23 Accessories Semi-transparent skylight belts, Ventilators,down pipe, Galvanized gutter, Trim, flashing, etc
24 Finishing options Vast array of colors and textures available, Alkyd painting, two primary painting, two finish painting (gray paint, red paint, white paint, epoxy zinc etc.). Or Galvanized.
25 Usages 1. Steel workshop, steel warehouse, steel structure plant
26 2. Steel web frame structure
27 3. Steel H-column and steel H-beam
28 4. Portal frame products
29 5. High rise building project
30 6. Others steel structure buildings



Our steel structure production line:

The floor space of our steel structre fabrication factory is 35,000㎡, and the workshop area is 20000㎡. We own three light/heavy H steel production lines, BOX production lines, C/Z purlin production lines and various types of profiling steel sheet machines with advanced equipment such as plasma cutting machine.

Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop 0



Packing and transport



All the structure components, panels,bolts and sort of accessories will bewell packed with standard package suitable ocean transportation and loaded into 40’HQ.

All the products are loaded at the loading site of our factory using crane and forklift by our skilled workers,who will prevent the goods to be damaged.

Prefabricated Steel Frame Structure Metal Building / Steel Building Erection Workshop 1



How to quote



The following question we need to know before making the price. Just feel free to fill what you know.

1 Location (where will be built?) _____country, area
2 Size: length*width*height _____mm*_____mm*_____mm
3 wind load (max. wind speed) _____kn/m2, _____km/h, _____m/s
4 snow load (max. snow height) _____kn/m2, _____mm
5 anti-earthquake _____level
6 brickwall needed or not If yes, 1.2m high or 1.5m high
7 thermal insulation If yes, EPS, fiberglass wool, rockwool, PU sandwich panels will be suggested; . if not, the metal steel sheets will be ok. The cost of the latter will be much
lower than that of the former
8 door quantity & size _____units, _____(width)mm*_____(height)mm
9 window quanity & size _____units, _____(width)mm*_____(height)mm
10 crane needed or not If yes, _____units, max. lifting weight____tons; max. lifting height _____m
