Product Details:
|
| Features: | Structural Steel Beams | Application: | Welded Structural Steel H Beams |
|---|---|---|---|
| Type: | Lightweight Steel Beams | Raw Steel Material: | Q235B, Q355B, ASTM A36 |
| Surface Treatment: | Painting Or Hot-dip Galvanize | Shot Blasting Level: | Sa 2.5 |
| Process Criterion: | AWS D1.1, GB | Installation: | Engineer Guidance On Site |
| High Light: | lightweight steel beams,h shape steel beam |
||
Welded Structural Steel H Beams / Large Size Metal Lightweight Steel Beams
Welded Structural Steel H Beams / Large Size Metal Lightweight Steel Beams. Welded steel structure crane beam is a beam structure that supports the operation of the overhead crane. There are crane tracks on the beam, and the crane travels back and forth on the crane beam through the track.
The flange plate of the welded crane beam should be a layer of steel plate. When two layers of steel plate are used, the outer steel plate should be set along the beam length, and measures should be taken in the design and construction to make the upper flange two layers of steel plate in close contact.
Supporting clamps or rigid material hard-hook cranes and crane-like structures are not suitable for use with crane trusses and brake trusses.

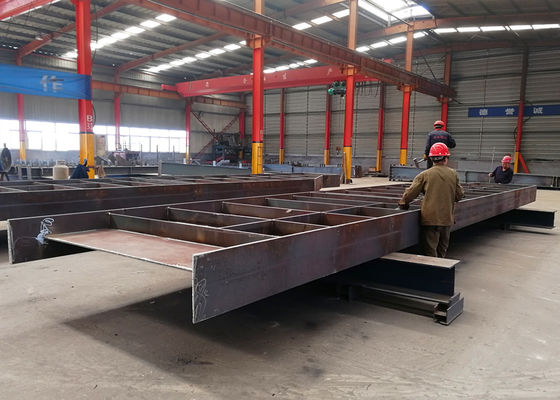

We have three steel structure production lines, equipped the flame cutting machine, H-Section steel assembly machine, gantry welding machine and shot-blasting machine, paint spray booth. We also put apart the space for the fabrication of heavy-duty and large structure steel components in our workshop.
| Products Name |
Welded Structural Steel H Beams / Large Size Metal Lightweight Steel Beams |
| Grade | Q235B,SS400,Q345B,S235JR,S275JR,ASTM-A36 |
| Size | 100x100mm-1500x1500mm |
| Thickness | 8mm-100mm |
| Length | 2-20meters |
| Shape | H-shaped column |
| Delivery Time | 7-15 Days if in stock size, or it will be 20-40 for customized |
| Payment Term | L/C or T/T |
| Package | By bundle or as customer's requirement |
| Application | Engineering or project, plant and equipment, mechanical equipment, bridge, etc |
| Surface | Black, coating, galavnized |
| MOQ | 30Ton |
1. Structural steel fabrication, painting , galvanizing , pre-assembly
2. Designing, fabrication and installation for Prefabricated steel structure building.
3. Deepen or design the fabrication drawing or shop drawing based on your architectural drawing and construction drawing
4. Engineering consulting service
QC/Technical Support
Raw material quality control
Thickness tolerance <0.25mm
Yield and tension strength testing in-house
Third party inspection certificate
Supply traceable mill certificate
Structural steel fabrication quality control
100% testing dimension tolerance <1mm
20% sample welding line ultrasonic testing, no fault, full penetration.
20% magnetic powder testing, no bubble, no defect, Smooth and Full
Supply third-party inspection assistance.
Shot blasting and painting quality control
Shot blasting grade Sa. 2.5 Metal luster, no rust, no oil dirt, no welding spatter, Roughness >75um
Paint primer within 5 hours after shot blasting, Holiday-free coatings, smooth, No dust, Dry Film Thickness (DFT) >75UM
Pre-assembly testing the connection details.
1. Professional design team, we could design the drawing as your requirement or calculate the steel quantity based on your drawing.
2. Skilled fabrication team and advanced equipment. We make the independent production schedule to each project.
3. One-stop service: We have completed lots such kinds of projects, we could provide the integrated proposal for your project.
4. Professional QC team will guarantee that we will provide the production and service as your request.
5. After sales service: If it has any questions that need us to do in your process of using, such as the maintain of outside insulation and steel components, just tell us , we will try to provide the service as well as we can.
