Prefab Steel Warehouse Building with Glass Wool Sandwich Panels

Large Image : Prefab Steel Warehouse Building with Glass Wool Sandwich Panels

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0184

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Steel Warehouse Building with Glass Wool Sandwich Panels

Description

Features:	Prefab Warehouse Steel Buildings	Application:	Steel Factory Buildings Construction
Type:	Light Steel Frame Structure Buildings	Raw Steel Material:	Q235B, Q355B, ASTM A36
Service Life:	50 Years	Wall And Roof:	Glass Wool Sandwich Panel
Surface Treatment:	Painting	Working Scope:	Design,Fabrication, Installation
Highlight:	steel structure building , metal storage buildings , Painting Surface Prefab Warehouse Steel Buildings

Prefab Warehouse Steel Buildings / Steel Factory Buildings Construction

Product Specifications

Attribute	Value
Application	Steel Factory Buildings Construction
Features	Prefab Warehouse Steel Buildings
Type	Light steel frame structure buildings
Raw steel material	Q235B, Q355B, ASTM A36
Service life	50 Years
Wall and Roof	Glass wool sandwich panel
Surface treatment	Painting
Working scope	Design, Fabrication, Installation

Project Overview

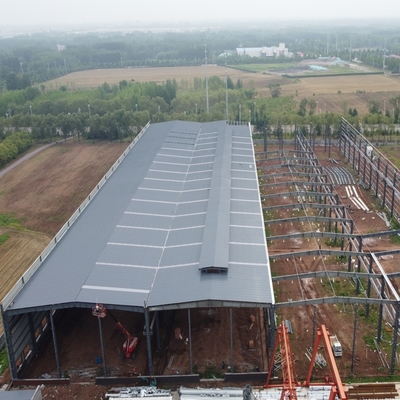

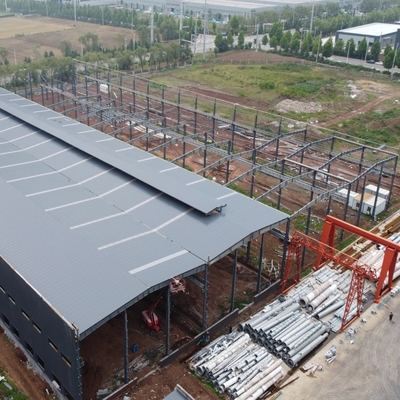

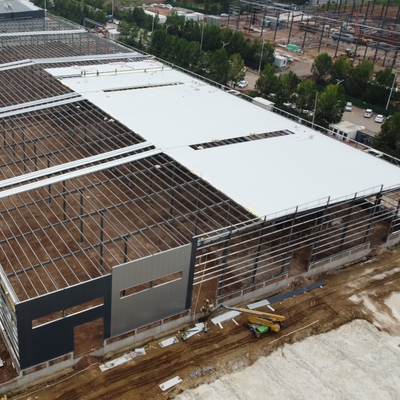

Prefabricated warehouse steel buildings designed for apparel and accessories production and storage. This single-layer portal frame steel structure features welded H-section steel columns and beams connected by high-strength bolts. All components are factory-made for quality assurance.

Key Advantages

Lightweight yet high strength construction
Large span capabilities
Reduced construction time and investment costs
Environmentally friendly and non-polluting
Versatile applications: factories, warehouses, gymnasiums, markets

Project Specifications

Parameter	Value
Structure Type	Portal frame, single ridge, clean span
Dimensions (L×W)	90m × 40m
Eave Height	9m
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof Material	75mm Glass wool sandwich panel
Wall Material	75mm Glass wool sandwich panel
Door Type	Sliding door
Window Type	Ribbon Skylight
Height Difference	300mm (indoor vs outdoor)

Material Specifications

Component	Item	Specification
Main Steel Frame	Steel Column	Q235B, Q345B; H shape, Box, Steel pipe, Hot rolled sheet
	Steel Beam	Q235B, Q345B; H shape, Steel Truss, Hot rolled sheet
	Brace	Q235B, Q345B; Steel rod, Steel pipe, Angle steel
	Roof Purlin	C or Z shape, Steel purlin
Supporting System	Wall Purlin	Q235B, Q345B; C or Z shape, Steel purlin
Supporting System	Roof/Wall Panels	Single corrugated steel sheet or sandwich panels (EPS, Rock wool, PU, Glass wool)
Accessories	Bolts	Ordinary, High strength
	Gutter	Galvanized Steel plate, Stainless steel
	Windows	Aluminum alloy-Glass, Aluminum alloy-shutter, PVC
	Doors	Sliding or Rolling door
	Downpipes	PVC pipe, Color steel pipe
	Edge Cover	Color steel sheet (0.5mm thickness)
	Ventilator	Stainless steel
	Crane	5 tons to 30 tons capacity

Manufacturing Capabilities

Our factory features three production lines equipped with advanced machinery including plasma cutting machines for precise steel structure fabrication.

Our Services

Structural steel fabrication, painting, galvanizing, and pre-assembly
Complete design, fabrication, and installation of prefabricated steel structures
Shop drawing development based on architectural plans
Professional engineering consulting services

Installation Support

We provide detailed construction drawings for each project and offer on-site engineering support for installation guidance.
