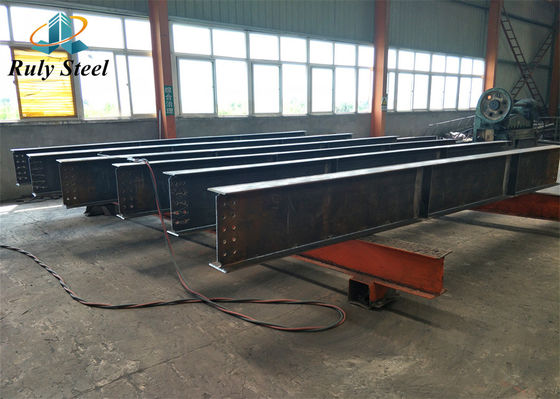

Prefab Steel Structure H-Section Columns Beams Q235B Q355B

Prefab Steel Structure H-Section Columns Beams Q235B Q355B
Prefab Steel Structure H-Section Columns Beams Q235B Q355B
Prefab Steel Structure H-Section Columns Beams Q235B Q355B Prefab Steel Structure H-Section Columns Beams Q235B Q355B Prefab Steel Structure H-Section Columns Beams Q235B Q355B Prefab Steel Structure H-Section Columns Beams Q235B Q355B Prefab Steel Structure H-Section Columns Beams Q235B Q355B Prefab Steel Structure H-Section Columns Beams Q235B Q355B Prefab Steel Structure H-Section Columns Beams Q235B Q355B

Large Image :  Prefab Steel Structure H-Section Columns Beams Q235B Q355B

Product Details:
Place of Origin: Qingdao,China
Brand Name: Ruly Steel
Certification: CE,AISC,SGS, BV, ISO,GB
Model Number: RULYC024
Payment & Shipping Terms:
Minimum Order Quantity: 200 square meters
Price: USD19-USD39 Per Square Meter
Packaging Details: 40HQ/Open top container
Delivery Time: 20 days
Payment Terms: L/C,D/A,D/P,T/T,Western Union,MoneyGram
Supply Ability: 20,000 square meters or 1,500 tons per month
Contact Now

Prefab Steel Structure H-Section Columns Beams Q235B Q355B

Description
Features: Prefab Steel Structure, Large Span, Multi-Floor Raw Steel Material: Q235B, Q355B, ASTM A36
Application: Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part Surface Treatment: Painting Or Hot-DIP Galvanized
Service Life: 50 Years Wall And Roof: Steel Cladding Sheet,Sandwich Panel
Columns & Beams: H-Section Steel Shot Blasting Level: SA 2.5
Certification: CE, AISC, SGS, BV, ISO, GB Installation: Engineer Guidance On Site
Drawing: CAD, TEKLA, 3D Model, PKPM, BIM HS Code: 9406900090
Transport Package: Standard Export Package Or Customer′s Requirement Production Capacity: 30000ton/Year
Connection Form: Bolt Connection
Highlight:

Easy Transportation Steel Structure

,

Steel Column Steel Structure

,

Easy Installation Steel Structure

Steel Structure Steel Column Steel Beam Fabrication
Prefabricated steel structural components offering easy transportation and installation for industrial and commercial construction projects.
Product Specifications
Raw Steel Material Q235B, Q355B, ASTM A36
Application Steel Workshop, Steel Structure Platform, Structural Roofing, Frame Part
Surface Treatment Painting or Hot-DIP Galvanized
Service Life 50 Years
Wall and Roof Steel cladding sheet, Sandwich Panel
Columns & Beams H-Section Steel
Shot Blasting Level SA 2.5
Certification CE, AISC, SGS, BV, ISO, GB
Installation Engineer Guidance on Site
Drawing CAD, TEKLA, 3D Model, PKPM, BIM
HS Code 9406900090
Transport Package Standard Export Package or Customer's Requirement
Production Capacity 30000ton/Year
Features Prefab Steel Structure, Large Span, Multi-Floor
Connection Form Bolt Connection
Key Advantages
  • Speed of Construction: Factory prefabrication reduces on-site assembly time
  • Precision Engineering: Manufactured with advanced machinery for dimensional accuracy
  • Cost Efficiency: Reduced labor costs and material waste through optimized production
  • Design Flexibility: Customizable to meet specific project requirements
  • Structural Integrity: High strength-to-weight ratio for superior load-bearing capacity
  • Sustainable Solution: Made from recyclable materials with minimal waste
  • Simplified Assembly: Pre-drilled components with detailed instructions
  • Consistent Quality: Standardized manufacturing ensures reliability
Technical Specifications
Main Steel Frame System:
Main structure H section steel Q355, alkyd painting, two primary painting, two finish painting
Roof purlin XZ160*60*20*2.5, galvanized
Wall purlin XZ160*60*20*2.5, galvanized
Intensive bolt Grade 10.9
Turn buckle bolt M20+2, steel Q235, processing
Anchor bolt M24, steel Q235, processing
Bracing System:
Cross brace Φ20 round steel bar Q235, process and painted (alkyd painting)
Angle brace L50*5 angle steel Q235, process and painted (alkyd painting)
Column bracing Φ25 round steel bar Q235, process and painted (alkyd painting)
Tie bar Φ127*3 steel pipe Q235, process and painted (alkyd painting)
Wall & Roof System:
Roof panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Wall panel Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Edge cover 0.5mm color plate, angle Alu.
Unpowered ventilator Diameter Φ600, stainless steel
Manufacturing Process
Prefab Steel Structure H-Section Columns Beams Q235B Q355B 0 Prefab Steel Structure H-Section Columns Beams Q235B Q355B 1 Prefab Steel Structure H-Section Columns Beams Q235B Q355B 2 Prefab Steel Structure H-Section Columns Beams Q235B Q355B 3
Packaging & Shipping
All structure components, panels, bolts and accessories are packed with standard export packaging suitable for ocean transportation and loaded into 40'HQ containers. Our skilled workers use cranes and forklifts to prevent damage during loading.
Prefab Steel Structure H-Section Columns Beams Q235B Q355B 4 Prefab Steel Structure H-Section Columns Beams Q235B Q355B 5 Prefab Steel Structure H-Section Columns Beams Q235B Q355B 6
Request a Quote
Please provide the following information for an accurate quotation:
Question Details Required
Location Country, area where it will be built
Size Length × Width × Height (mm)
Wind load Maximum wind speed (kn/m², km/h, or m/s)
Snow load Maximum snow height (kn/m² or mm)
Earthquake resistance Required level
Thermal insulation Type required: EPS, fiberglass wool, rockwool, PU sandwich panels, or metal sheets
Door specifications Quantity and dimensions (width × height in mm)
Crane requirements If needed: quantity, maximum lifting weight (tons), and height (m)
