Prefab Industrial Steel Buildings with Q235B/Q355B Frame

Large Image : Prefab Industrial Steel Buildings with Q235B/Q355B Frame

Product Details:

Place of Origin:	China
Brand Name:	Ruly Steel
Certification:	SGS, BV, ISO
Model Number:	Ruly0320

Payment & Shipping Terms:

Minimum Order Quantity:	500 Square Meter
Price:	USD29-USD99 Per Square Meter
Packaging Details:	As request
Delivery Time:	30 Days
Payment Terms:	L/C,T/T,Western Union
Supply Ability:	20000 Square Meter Per Month

Contact Now

Prefab Industrial Steel Buildings with Q235B/Q355B Frame

Description

Features:	Steel Frame Industrial Buildings Construction	Application:	Prefab Steel Industrial Building
Type:	Industrial Steel Buildings	Raw Steel Material:	Q235B, Q355B
Surface Treatment:	Painting Or Hot-dip Galvanize	Service Life:	50 Years
Wall And Roof:	Glass Wool	Working Scope:	Design,Fabrication, Installation
Highlight:	Prefab Industrial Steel Buildings , Q235B Industrial Steel Buildings , Prefab Industrial Buildings Construction

Prefab Industrial Steel Buildings Steel Frame Industrial Buildings Construction

Product Specifications

Attribute	Value
Application	Prefab Steel Industrial Building
Features	Steel Frame Industrial Buildings Construction
Type	Industrial Steel Buildings
Raw steel material	Q235B, Q355B
Surface treatment	Painting or Hot-dip Galvanize
Service life	50 Years
Wall and Roof	Glass wool
Working scope	Design, Fabrication, Installation

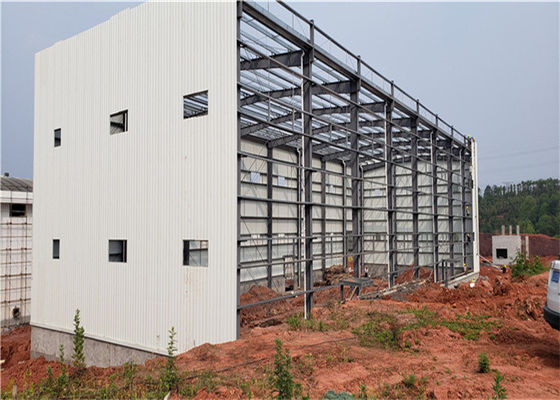

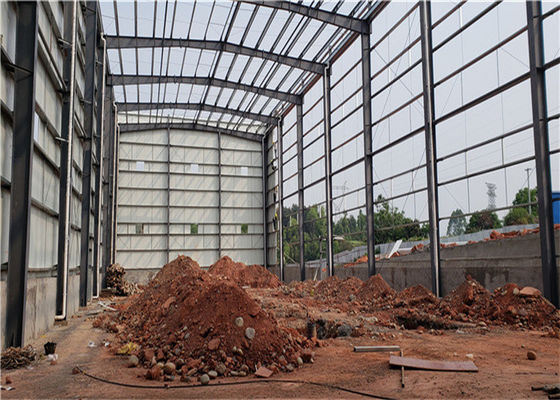

Project Overview

This heavy industrial steel workshop is designed for rail traffic equipment production. Our comprehensive service includes design proposal and drawings, fabrication of steel structure components, and complete installation including steel structure, overhead crane, and roof/wall insulation panels.

Design Advantages

High Strength: Lattice steel columns designed to bear heavy crane loads and wind forces while optimizing steel usage
Large Span: Capable of creating expansive, unobstructed interior spaces
Rapid Construction: Prefabricated components enable fast assembly - 6,000m² buildings can be installed in just 40 days
Aesthetic Flexibility: Clean modern lines with multiple color options for wall panels
Cost Efficiency: Lightweight structure reduces foundation costs with faster ROI than concrete buildings

Project Specifications

Structure Type	Portal frame, single ridge, multi spans
Dimensions	240m (L) × 120m (W) × 19m (Eave Height)
Roof Slope	10%
Gable Wall Column Spacing	7.5m
Roof/Wall Material	75mm thick Rock wool sandwich panel
Door/Window	Sliding door with ribbon skylight

Technical Components

Main Steel Frame System

Main structure	H section steel Q355 with alkyd painting (2 primer + 2 finish coats)
Roof/Wall purlin	XZ1606020*2.5 galvanized
Fasteners	Grade 10.9 intensive bolts, M20/M12 galvanized bolts, M24 anchor bolts

Bracing System

Cross brace	Φ20 round steel bar Q235 (processed & painted)
Column bracing	Φ25 round steel bar Q235 (processed & painted)
Tie bar	Φ127*3 steel pipe Q235 (processed & painted)

Wall & Roof System

Panel options	Corrugated steel plate or sandwich panel (EPS/fiber glass/rock wool/PU)
Ventilation	Φ600 stainless steel unpowered ventilator
Lighting	1.2mm FRP double layer skylight
Drainage	0.5mm color steel gutter with Φ110 PVC rainspout

Production & Installation

Installation Methods

Detailed construction drawings provided prior to installation
Optional on-site training at our factory with sample assembly demonstration

Packaging & Shipping

All components are packed for ocean transport in 40'HQ containers, loaded by skilled workers using cranes and forklifts to prevent damage.

Custom Quotation Requirements

1	Location (country/area)	_____
2	Dimensions (L×W×H)	_____mm × _____mm × _____mm
3	Wind load (max speed)	_____kn/m², _____km/h, _____m/s
4	Snow load (max height)	_____kn/m², _____mm
5	Earthquake resistance	_____level
6	Brick wall requirements	1.2m/1.5m high if needed
7	Insulation type	EPS, fiberglass, rockwool, PU, or metal sheets
8	Door specifications	_____units, _____mm × _____mm
9	Window specifications	_____units, _____mm × _____mm
10	Crane requirements	_____units, _____tons capacity, _____m height
